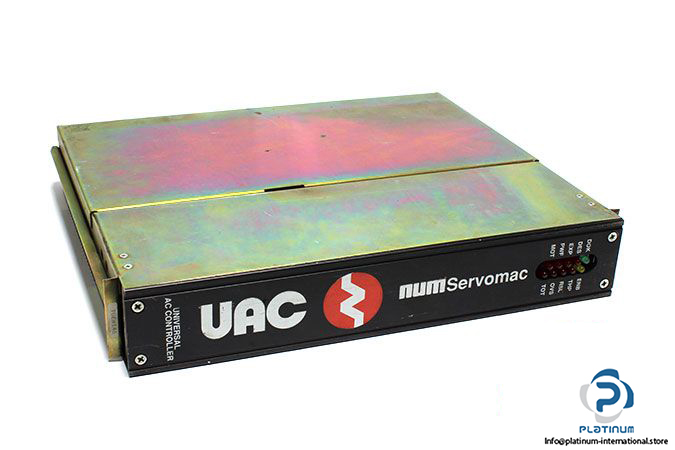

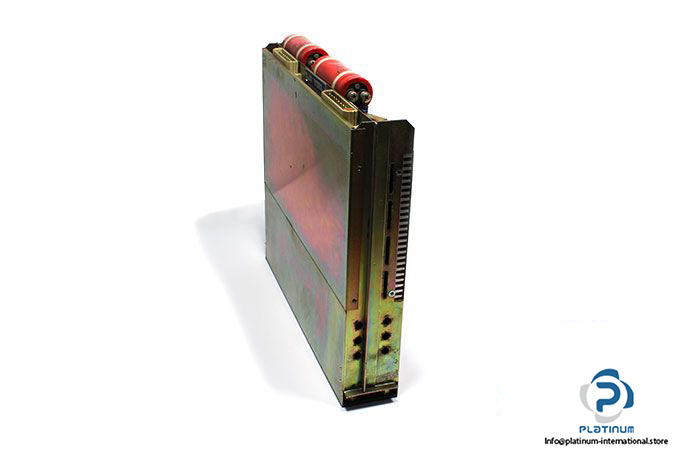

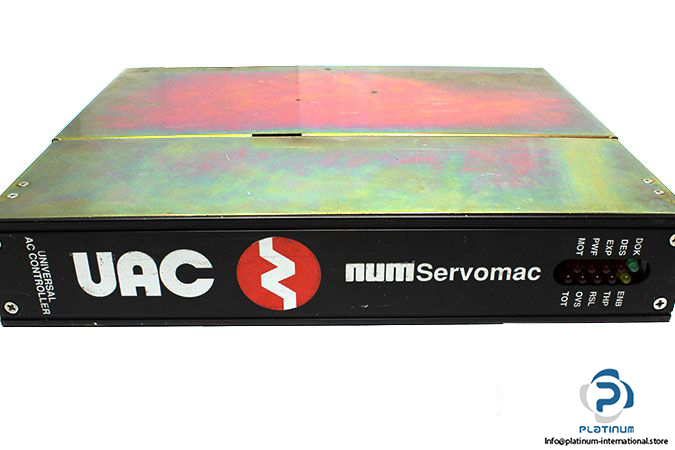

NUM 3UACM5030I Servo Drive
Manufacturer: Num
Type: Servo Drive
Model: 3UACM5030I
Logic Input Signals: + 15/24 V DC
Auxiliary Voltages: + 24 VDC 0.4 A – + 10 / – 10 VDC 7mA
Rated Current: 14 A
Max. Current: 21 A
No-Load Dissipation: 30 W
Dissipation at Nominal Load: 215 W
Operating Temperature: 0…40 °C
Protection Class: IP10
Dimensions: 366 X 60 X 315 mm

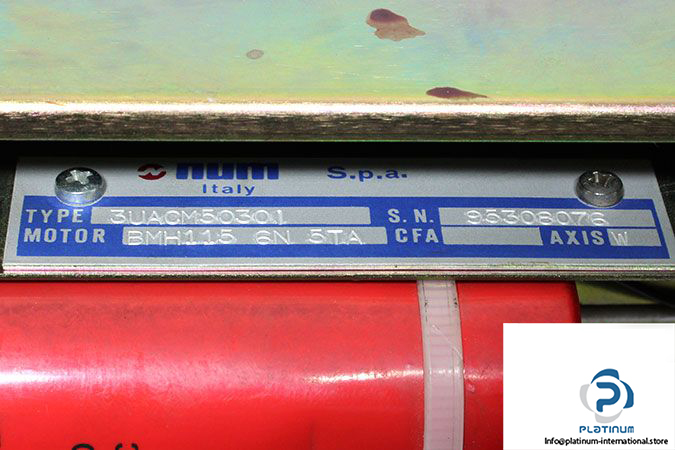

Motor Type: BMH115 6N 5TA
Weight: 5.20 kg
