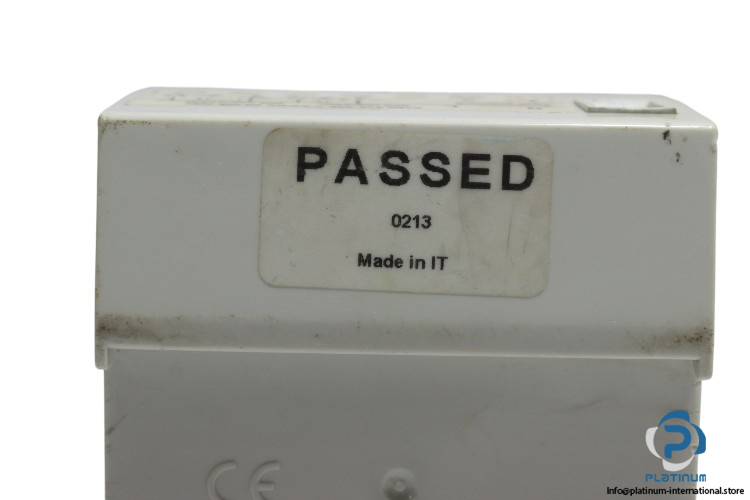

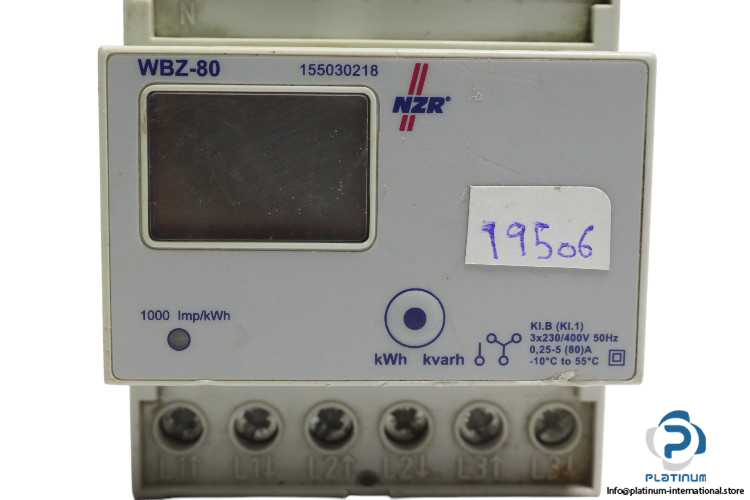

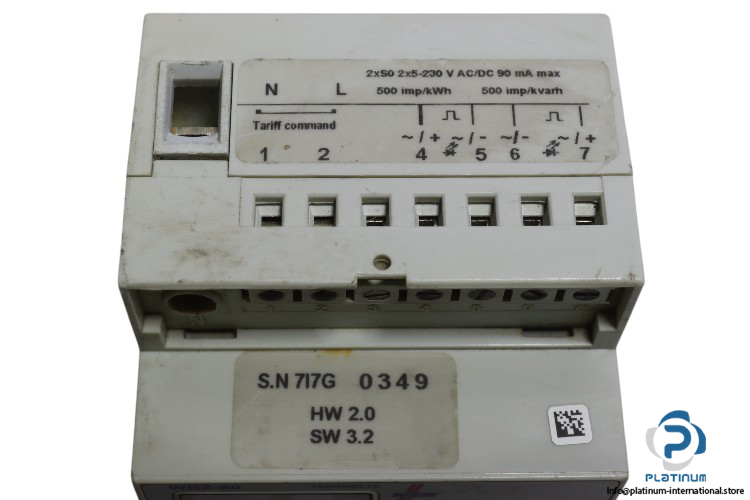

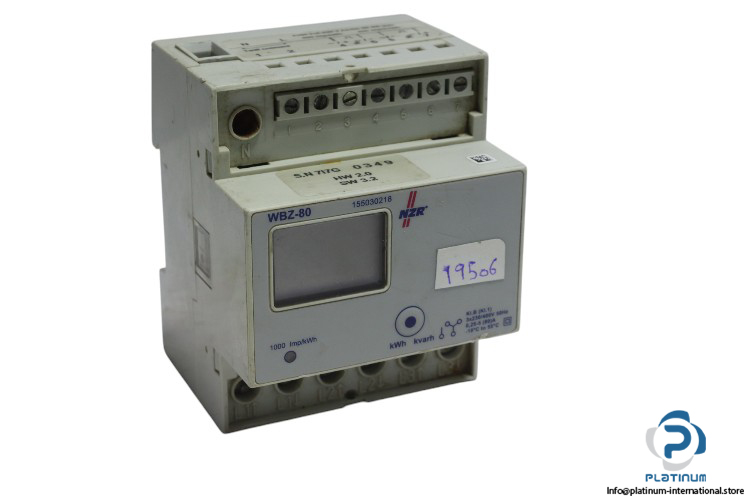

NZR WBZ-80 Three-Phase Meter
Gebraucht
Auf Lager1 EinheitVersandbereit
Drehstromzähler NZR WBZ-80 ist ein direkt messender Drehstromzähler mit 4-Leiter-System, DIN-Schienenmontage, maximalem Strom von 80A und IP40-Schutz für industrielle Energieüberwachung.
3x230/400V4-Wire80ACurrentDINEnergyIndustrialIP40MaxMetermonitoringNZRProtectionrailSystemThree-PhaseWBZ-80
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
NZR WBZ-80 Three-Phase Meter
The NZR WBZ-80 Three-Phase Meter is a direct measuring energy meter designed for precision monitoring in industrial and commercial electrical systems. With a 4-wire measuring system, high accuracy, and DIN rail compatibility, this meter ensures reliable performance in energy management applications.
Manufacturer: NZR
Type: Three-Phase Meter
Model: WBZ-80
Connection Cross-Sections:
| Measuring Principle | Direct Measuring |
| Measuring System | 4-Wire |
| Measuring Voltage | 3 x 230/400 V |
| Measuring Current (I) | 0.25 - 5 (80) A |
| Form Factor | 4 TE DIN Rail |
| Self-Consumption (per phase) | 0.5 VA |
| LED Impulse Value | 1,000 Imp./kWh |
| Current/Neutral Conductors Max. | 33 mm² |
| Auxiliary Terminals Max. | 2.5 mm² |
| Temperature Range (Operation) | -25 to 55°C |
| Protection Class | IP40 |
| Dimensions (W x H x D) | 71.5 x 90 x 71 mm |
