ODE BDU08230AW Solenoid Coil
Gebraucht
Auf Lager1 EinheitVersandbereit
“ 230/240 V AC solenoid coil with 3-pin connection, Class F insulation, and 100% ED operation. Designed for industrial valve systems.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

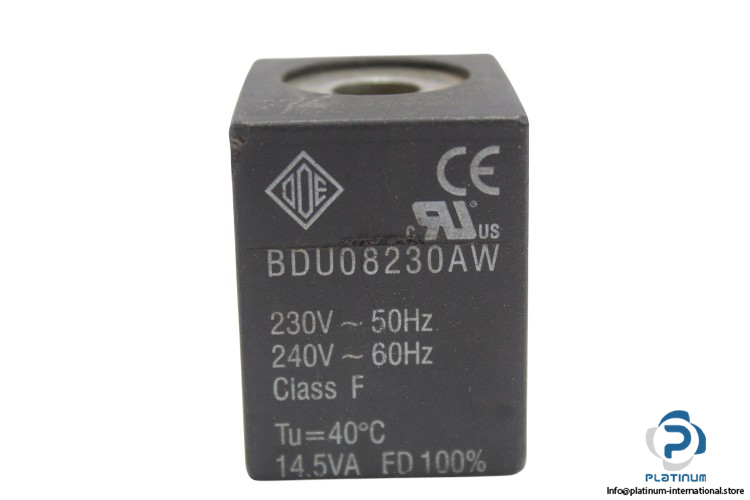

ODE BDU08230AW Solenoid Coil
The ODE BDU08230AW is a reliable and efficient solenoid coil designed for continuous duty operation in industrial valve systems. Built to Class F insulation standards with a 3-pin electrical connection, it is suitable for 230/240 V AC supply at 50/60 Hz frequency.
Manufacturer: ODE
Type: Solenoid Coil
Model: BDU08230AW
| Power Supply | 230/240 V AC |
| Power | 14.5 VA |
| Frequency | 50/60 Hz |
| Operation | 100% ED (Continuous Duty) |
| Electrical Connection | 3-pin |
| Inner Diameter | 10 mm - 13.3 mm |
| Length | 39.5 mm |
| Class | F |
| Max Ambient Temperature | 40 °C |
