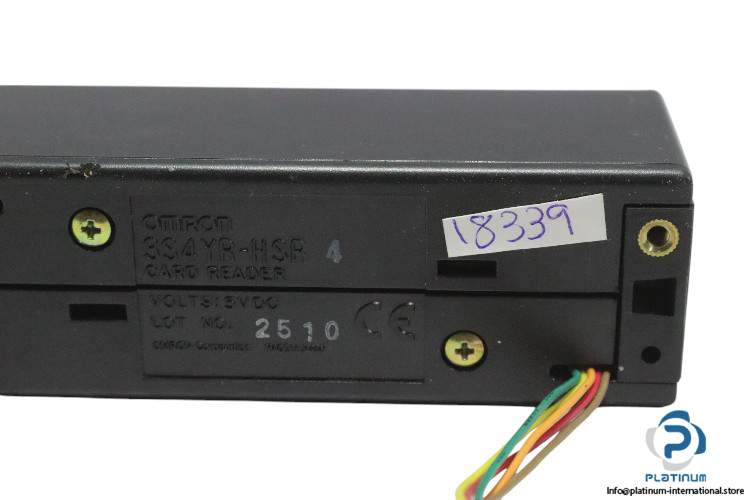

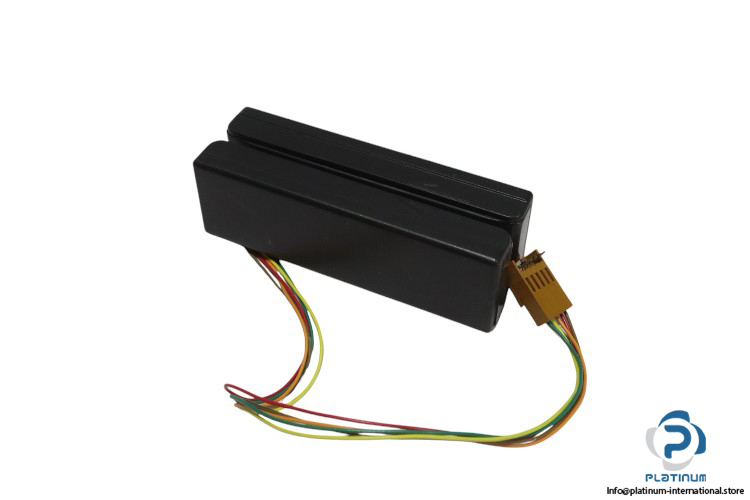

Omron 3S4YR-HSR Swipe Magnetic Card Reader

Omron 3S4YR-HSR Swipe Magnetic Card Reader

The Omron 3S4YR-HSR is a reliable magnetic card reader engineered for fast and efficient data reading. Supporting card speeds between 10 to 150 cm/sec, this device is ideal for identification, access control, and transaction applications. Compact and durable, it supports both single and double-track reading with low power consumption, making it suitable for embedded or standalone systems.

• Manufacturer: Omron
• Type: Swipe Magnetic Card Reader
• Model: 3S4YR-HSR

Technical Specifications:

• Card Feeding Speed: 10 to 150 cm/sec (4 to 59 in/sec)
• Operating Power Supply: 5 VDC
• Current Consumption:
  • Single Track: 25 mA
  • Double Track: 50 mA
• Ambient Operating Temperature: -10° to 55°C
• Dimensions with Cover: 100L x 32.5W x 32H mm
• Dimensions without Cover: 100L x 27W x 29.5H mm

Applications:

• Access control systems
• Identification and membership cards
• POS and retail terminals
