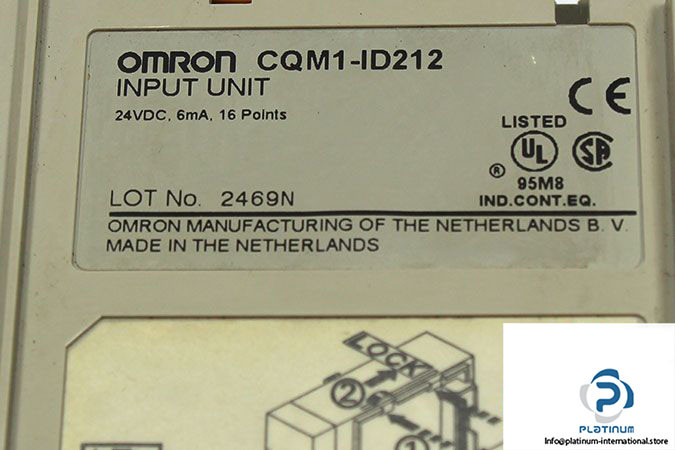

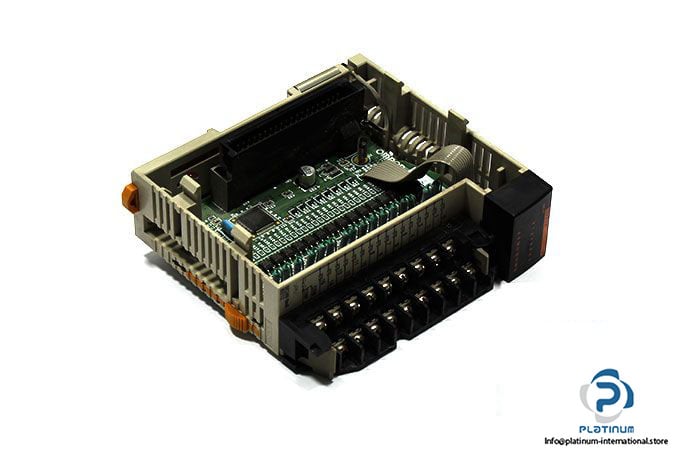

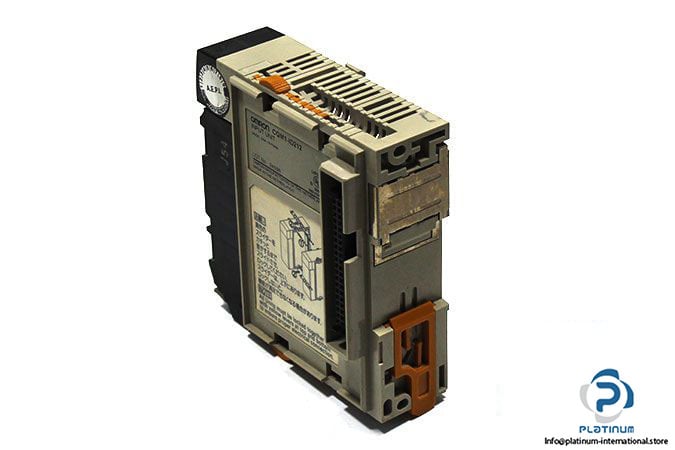

Omron CQM1-ID212 Input Unit
Manufacturer: Omron
Type: Input Unit
Model: CQM1-ID212
Input Voltage: 24 VDC
ON Voltage: 14.4 VDC min.
OFF Voltage: 5 VDC max.
Input Current: 6 mA
Input Impedance: 3.9 kΩ
ON Delay: 8 ms max. (can be set between 1 and 128 ms in PC Setup, see note)
OFF Delay: 8 ms max. (can be set between 1 and 128 ms in PC Setup, see note)
No. of Inputs: 16 points (16 points/common, 1 circuit)
Internal Current Consumption: 85 mA max. at 5 VDC
Weight: 0.185 kg
