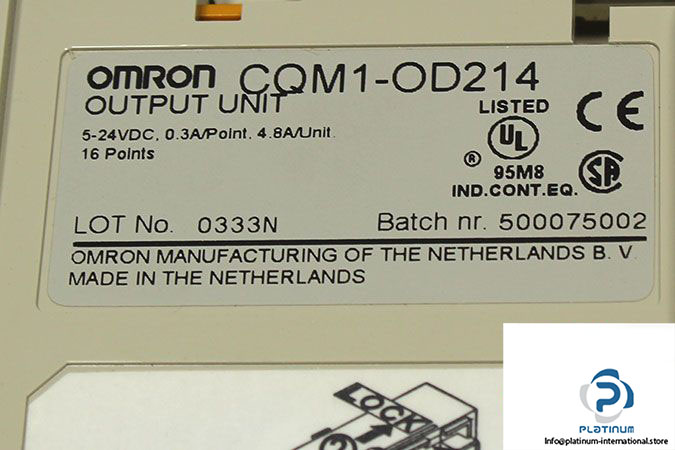

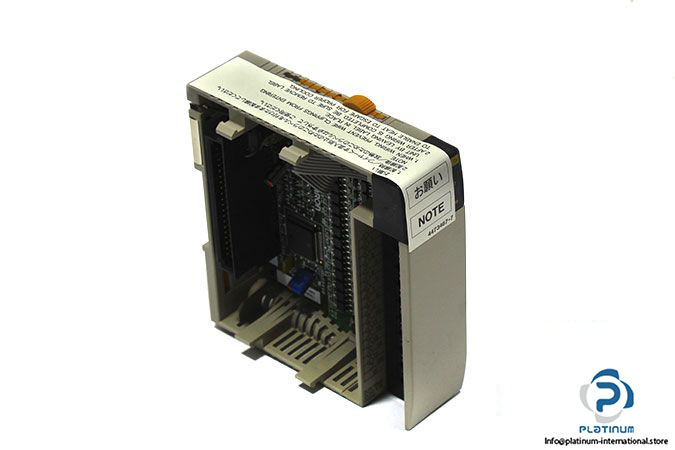

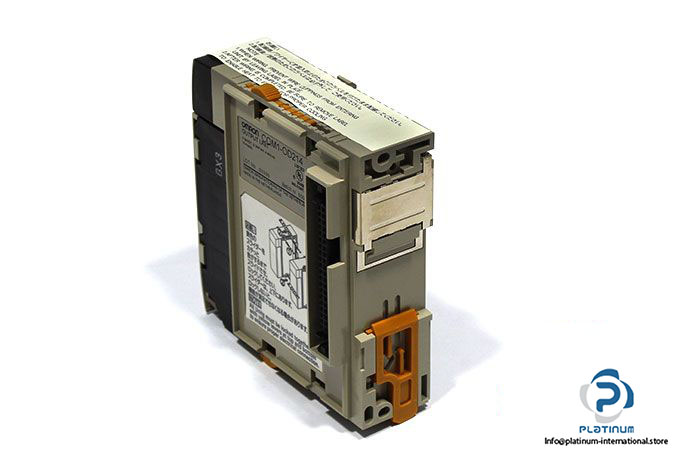

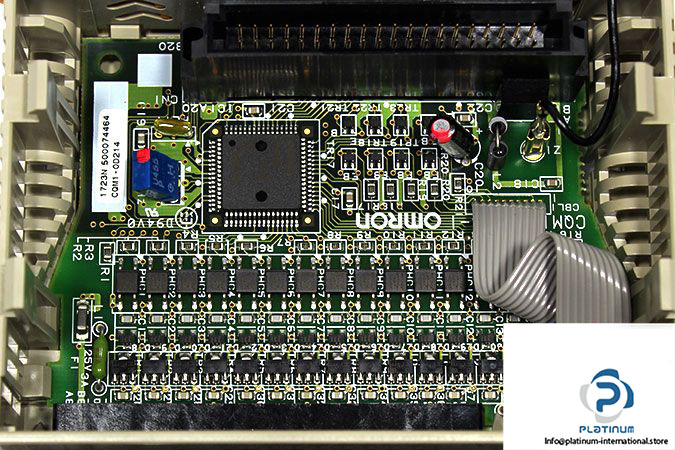

Omron CQM1-OD214 Output Unit

Manufacturer: Omron

Type: Output Unit

Model: CQM1-OD214

Max. Switching Capacity: 50 mA at 4.5 VDC to 300 mA at 26.4 V

Max. Residual Voltage: 0.8 V

Max. Leakage Current: 0.1 mA

ON Delay: 0.1 ms max.

OFF Delay: 0.4 ms max.

No. of Outputs: 16 points (16 points/common, 1 circuit)

Internal Current Consumption: 170 mA max. at 5 VDC

Service Power Supply: 60 mA min. at 5 to 24 VDC ±10% (3.5 mA ¢ Number of ON Points)

Fuse: 3.5 A (One Per Common), Two Only Used. Fuse Is Not User Replaceable.

Weight: 0.26 kg
