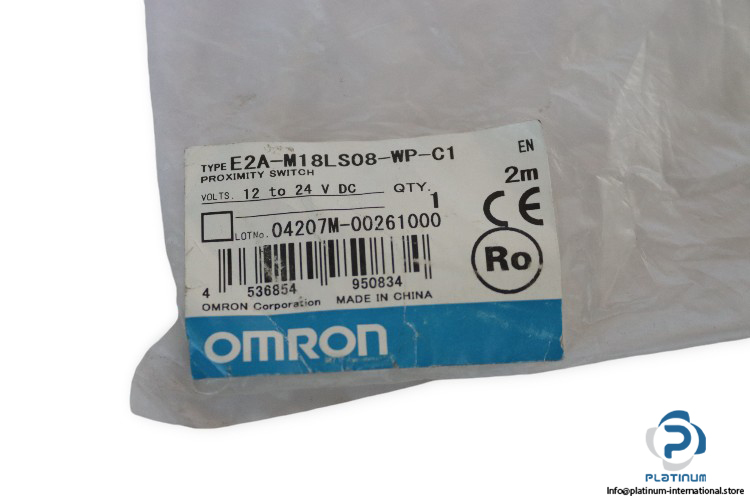

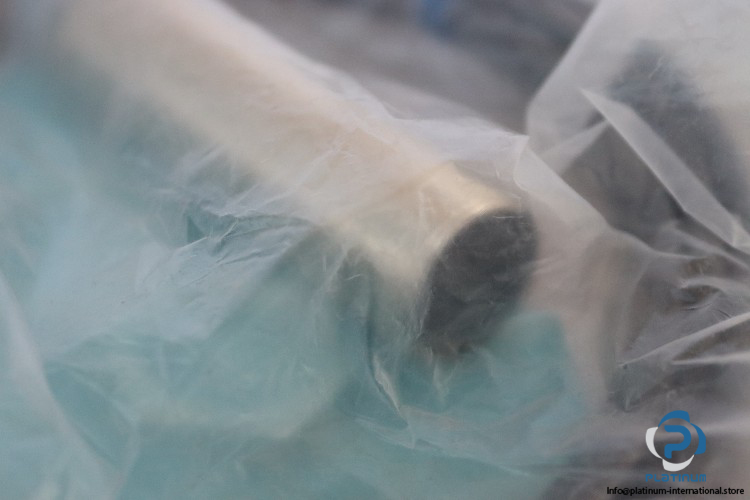

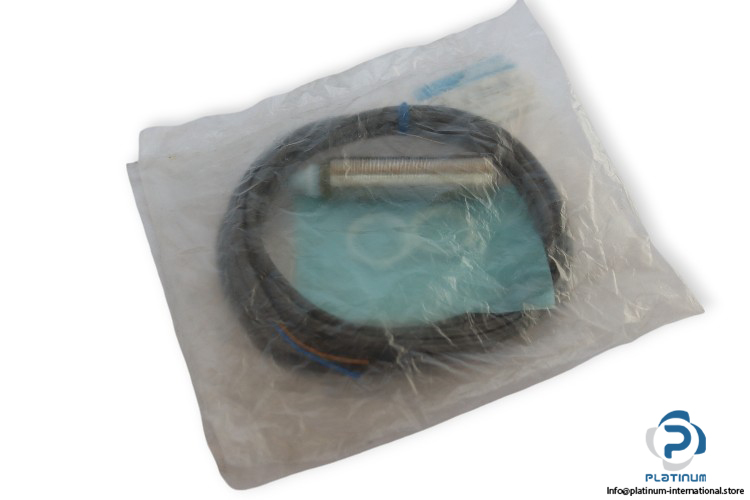

Omron E2A-M18LS08-WP-C1 Inductive Proximity Switch Sensor
Der induktive Näherungsschalter-Sensor von Omron (Modell: E2AM18LS08WPC1) bietet eine Erfassungsreichweite von 0 / 8 mm, eine Betriebsspannung von 12 / 24 V DC und IP67-Schutz für zuverlässige Objekterkennung in Industrieumgebungen.
Omron Inductive Proximity Switch Sensor (Model: E2AM18LS08WPC1)
The Omron Inductive Proximity Switch Sensor (Model: E2AM18LS08WPC1) is a reliable and highly accurate sensor ideal for industrial applications. With a sensing range of 0 / 8 mm and operating voltage of 12 / 24 V DC, this sensor offers excellent performance in detecting objects. The sensor features an NPN output function with a normally open (NO) configuration and comes with a 2-meter cable for flexible installation.
- Manufacturer: Omron
- Type: Inductive Proximity Switch Sensor
- Model: E2AM18LS08WPC1
- Part No.: 04207M-00261000
- Sensing Range: 0 / 8 mm
- Operating Voltage: 12 / 24 V DC
- Max. Operating Current: 0.2 A
- Current Consumption: 10 mA max
- Output Function: NPN / NO
- Connection: 2 m Cable
- Size: M18
- Degree of Protection (IP): IP67
- Body Material: Brass
- Overall Length: 81 mm
- Operating Temperature: -40 / 70°C
