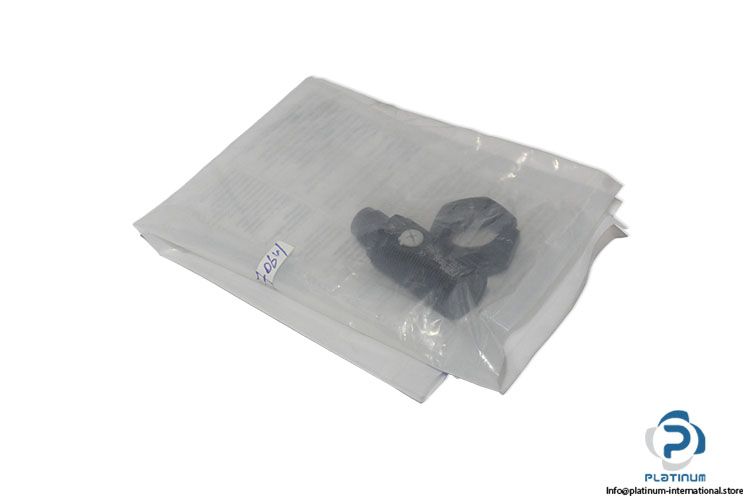

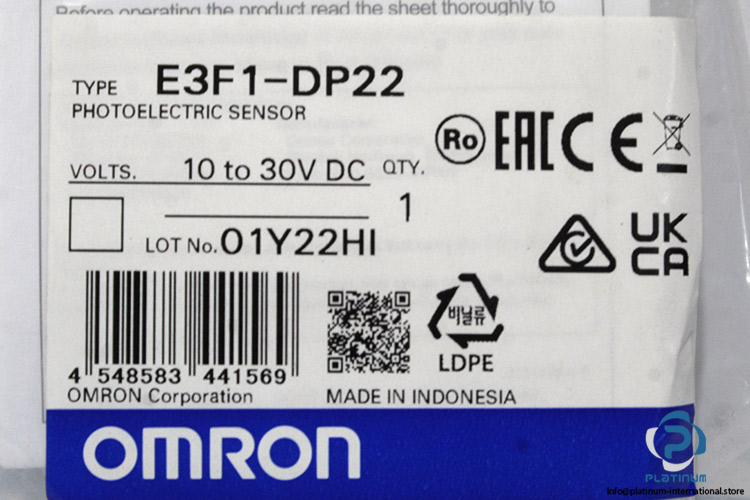

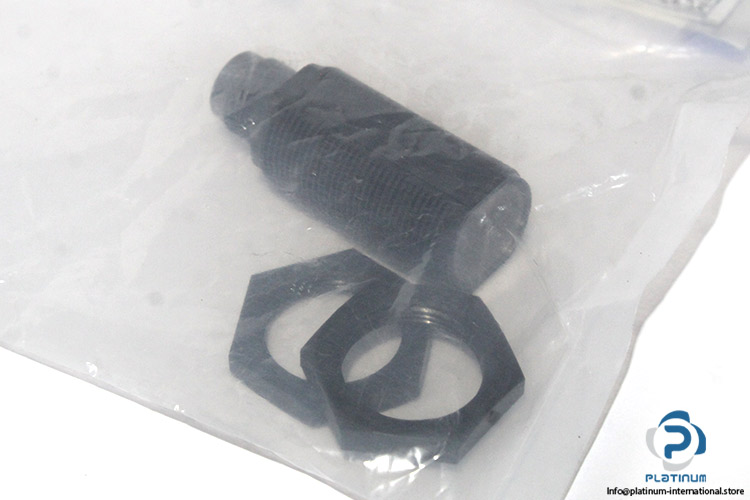

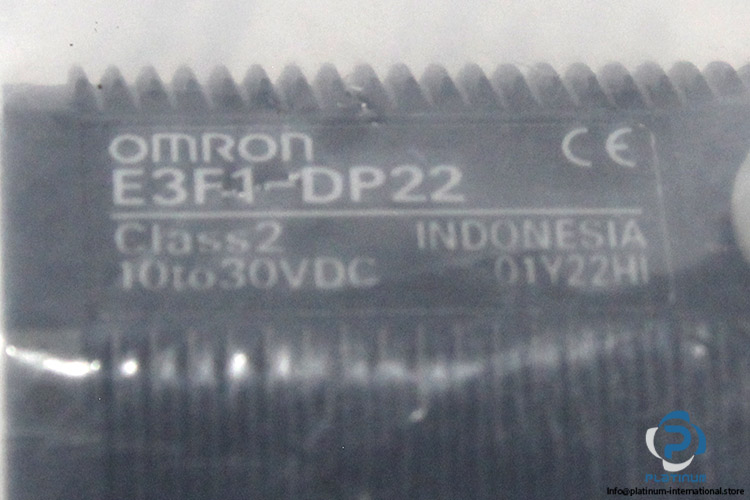

Omron E3F1-DP22 Photoelectric Sensor
Neu
Auf Lager2 EinheitenVersandbereit
Photoelectric Sensor Omron E3F1-DP22 diffuse-reflective photoelectric sensor with 300 mm sensing distance, visible red LED light source, PNP output, M12 connector, and IP66 protection for industrial automation applications.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Part No. | O1Y22HI |
| Supply Voltage | 10 to 30 V DC |
| Light Source | 624nm visible red LED (simplifies sensor alignment) |
| Response Time | 0.5 ms |
| Sensing method | Diffuse-reflective |
| Output Type | PNP Open Collector, Light-ON / Dark-ON selectable |
| Spot diameter | 40x50 mm |
| Sensing distance | 300 mm |
| Housing Design | M18 threaded barrel (axial), constructed from durable plastic |

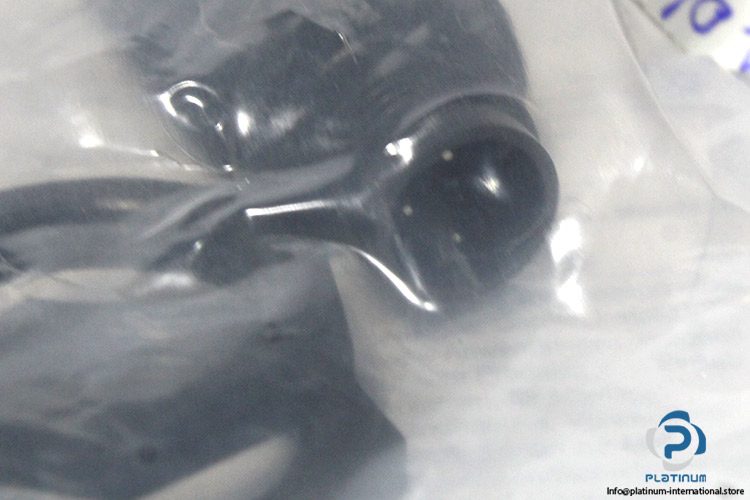

| Connection Type | standard 4-pin M12 connector |
| Class | 2 |
| Certificate | ROHS, EAC, CE, UKCA |
| Degree of protection | IP66 |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097795 |
| Weight | 0,02 |
