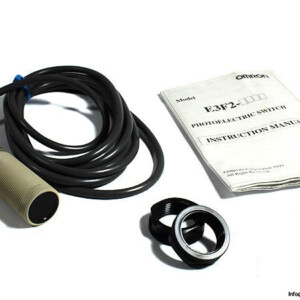

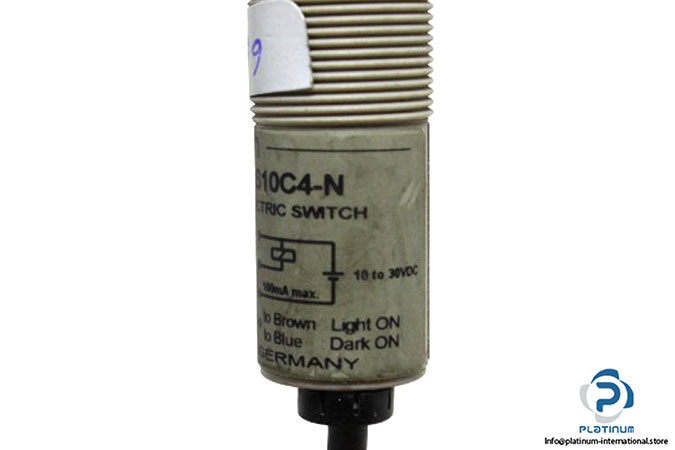

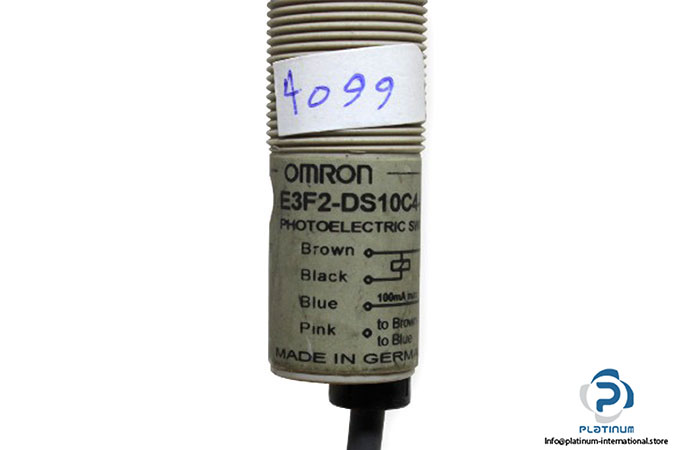

Omron E3F2-DS10C4-N Photoelectric Sensor

Manufacturer: Omron

Type: Photoelectric Sensor

Order Code: E3F2-DS10C4-N

Sensing Method: Diffuse-Reflective

Sensing Distance: 100 mm

Operating Voltage: 10 … 30 V DC

Current Consumption: 25 mA

Response Time: 2.5 ms

Electrical Design: NPN

Output Operation: Light-ON / Dark-ON

Protection: IP67

Light Source (Wave Length): Infrared LED (880 nm)

Sensitivity Adjustment: Fixed

Diameter, Housing Length: 18, 64.9 mm

Ambient Temperature: -25 … 55 °C

Housing Material Case: Plastic

Housing Material Lens: PMMA
