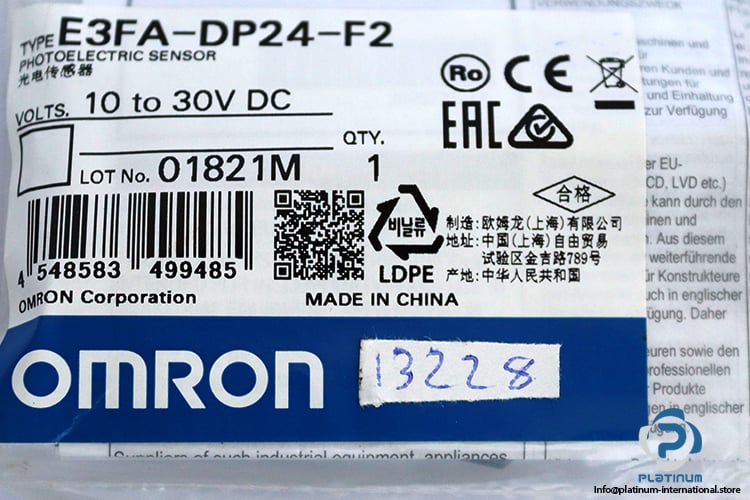

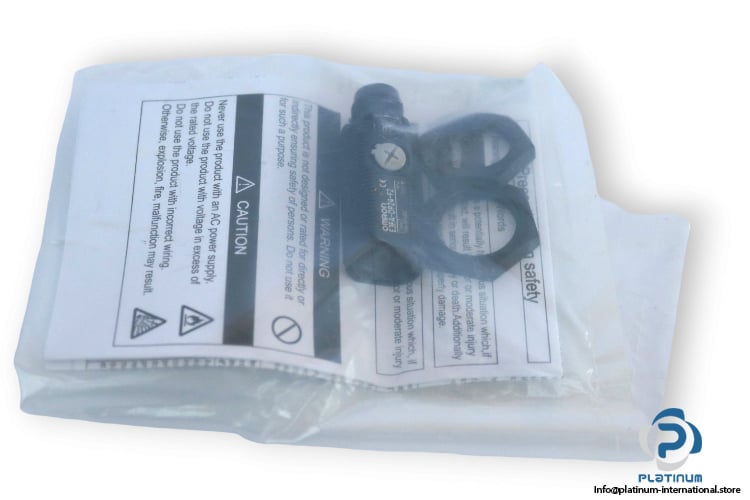

Omron E3FA-DP24-F2 Diffuse Photoelectric Sensor

Manufacturer: OMRON
Type: Diffuse Photoelectric Sensor
Model: E3FADP24F2

Sensing Range: 100 mm
Sensing Method: Diffuse-Reflective
Rated Voltage: 10 … 30 V DC
Current Consumption: 25 mA
Contact: PNP
Operation Mode: Light-ON / Dark-ON (Selectable)
Connection: Connector M12
Material (Case): ABS
Indicators: Operation Indicator (Orange), Stability Indicator (Green)
Light Source: Infrared LED
Wave Length: 850 nm
Response Time Max.: 0.5 ms
Protection Class: IP67
Temperature: -25 … 55 °C
Dimensions: 50 x 15.4 x 21 mm
