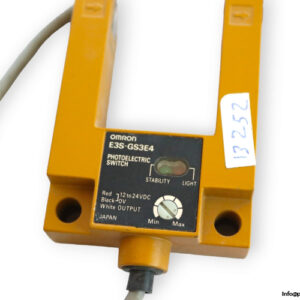

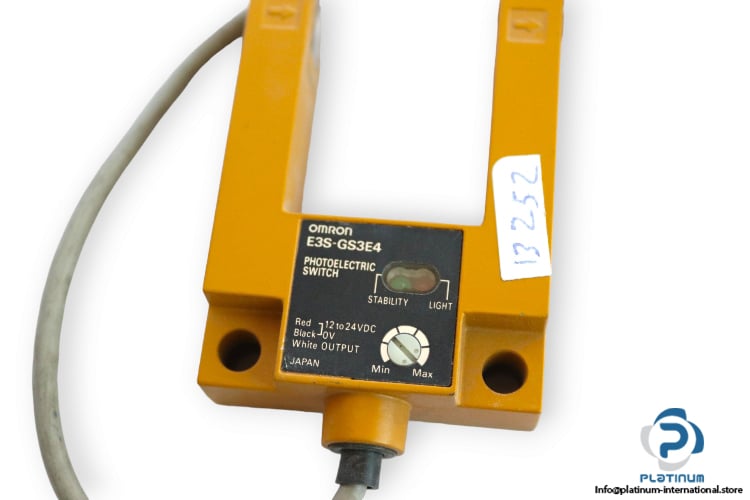

Omron E3S-GS3E4 Photoelectric Sensor
Manufacture: Omron
Type: Fork Photoelectric Sensor
Model: E3SGS3E4
Sensing Range: 30 mm
Standard sensing object: Opaque, 6-mm dia. min.
Minimum detectable object: 3-mm dia. min. (black mark on
transparent sheet)
Light source (wavelength): Infrared LED (950 nm)
Power supply voltage: 12 … 24 VDC
Current consumption: 40 mA max.
Output type: NPN

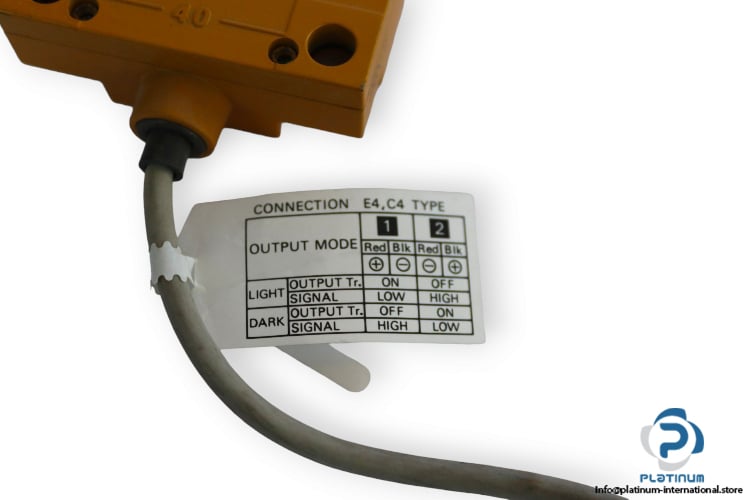

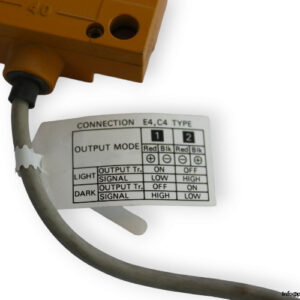

Operation mode: Light-ON/Dark-ON selectable
Response time: Operate or reset: 1 ms max.

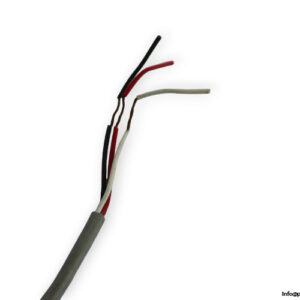

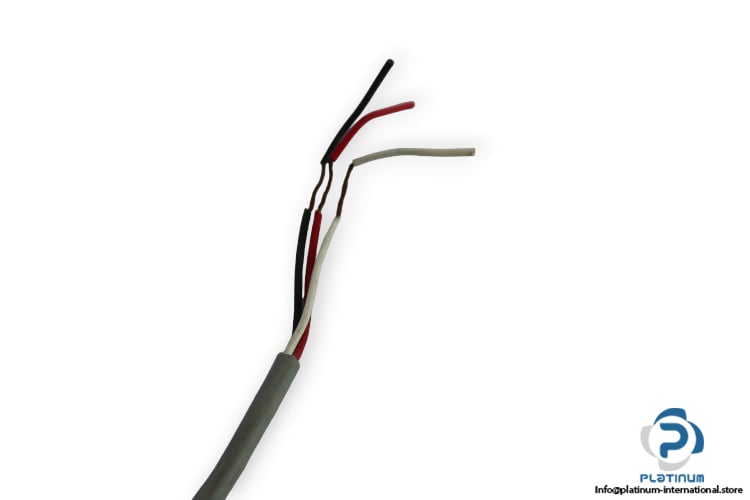

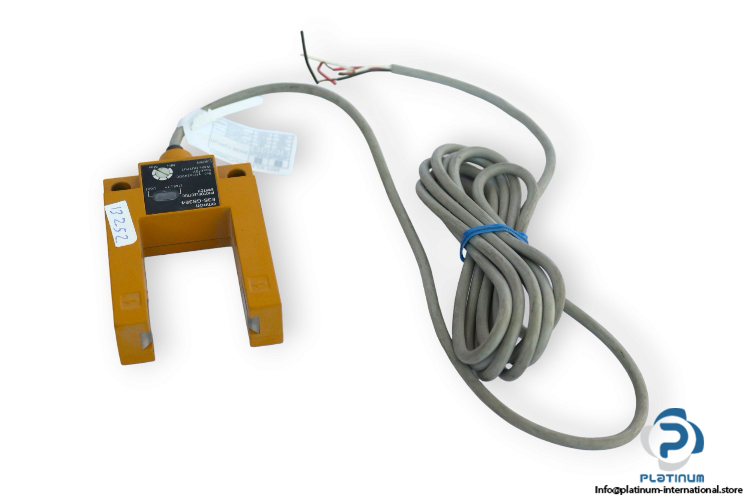

Connection method: Pre-wired (standard length: 2 m)
Case Material: Zinc die-cast
Degree of protection (IP): IEC IP67
Operating Temperature: -25 … 55°C
