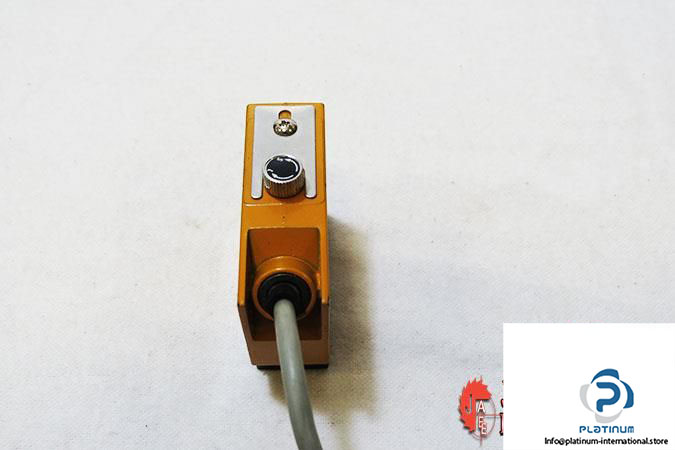

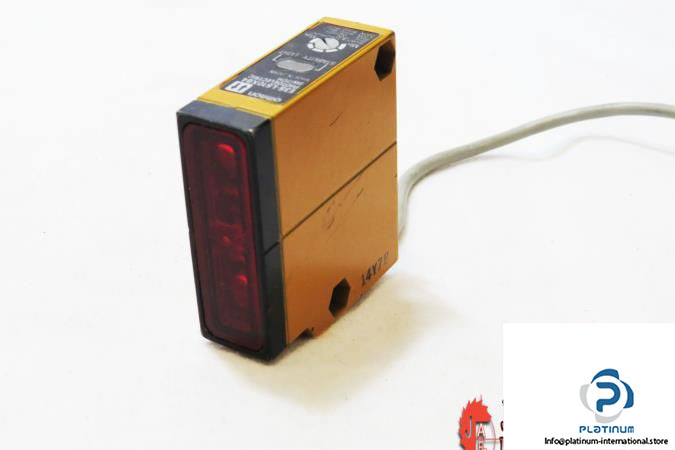

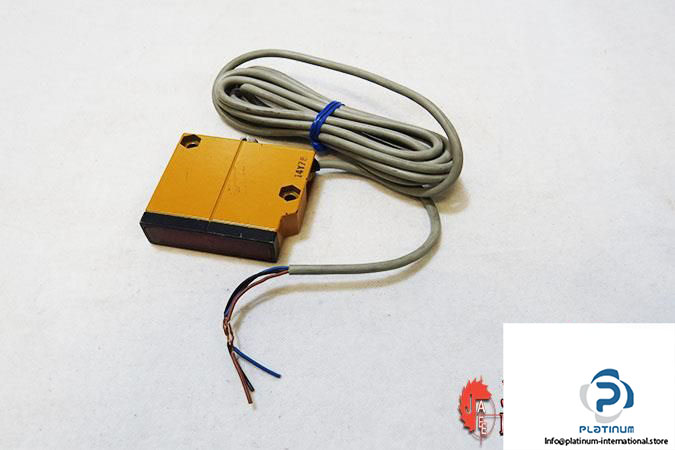

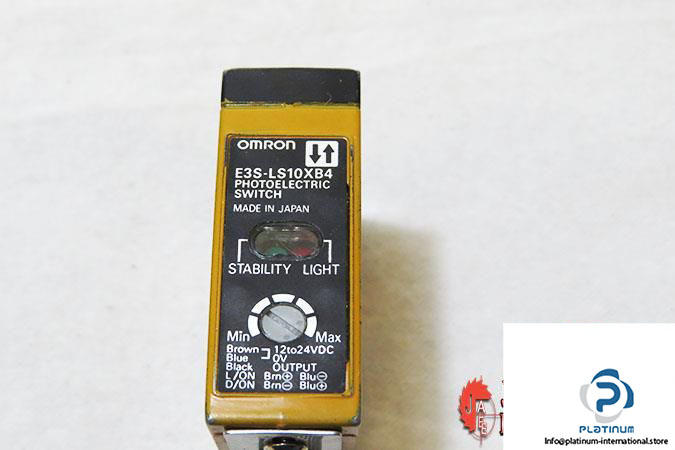

Omron E3S-LS10XB4 Photoelectric Sensor

Manufacturer: OMRON

Type: PHOTOELECTRIC SENSOR

Model: E3S-LS10XB4

Sensing Distance: 3 to 10 cm

Sensing method: Pinpoint focusable reflective

Standard objects: 1 x 1 cm white mat paper

Response time: 1 ms max

Sensitivity: Adjustable

Output: PNP

Control Output: 100 mA max

Power supply voltage: 12 … 24 VDC

Current consumption: 40 mA

Indicators: Light indicator (red), stability indicator (green)

Light source: Red LED

Mounting: side mounting with two through holes

Connection: 3-conductor cable, 2 m

Weight: approx. 225 g

Enclosure rating:  IP67

Ambient Temperature Operating:  -25 … 55 °C

Condition: New
