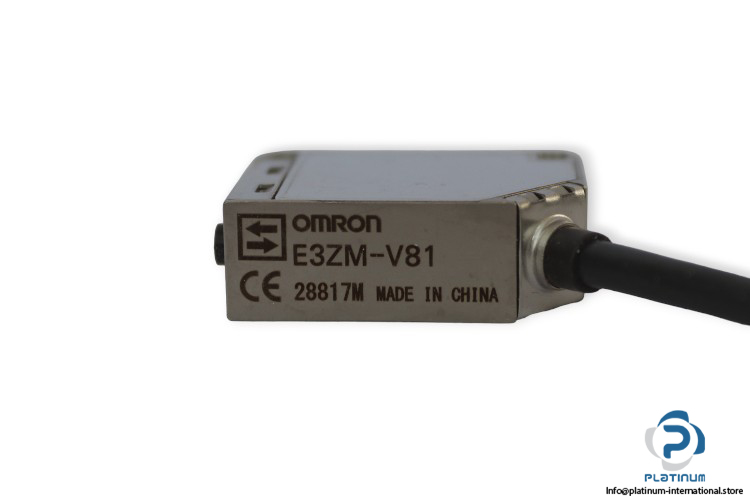

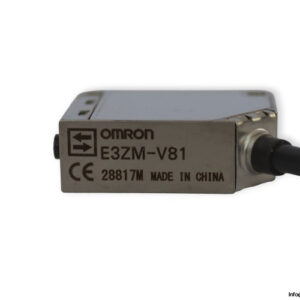

Omron E3ZM-V81 Photoelectric Diffuse-Reflective Sensor

Manufacturer: Omron
Type: Photoelectric Diffuse-Reflective Sensor
Model: E3ZMV81

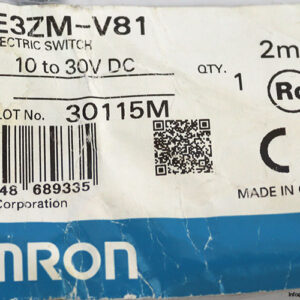

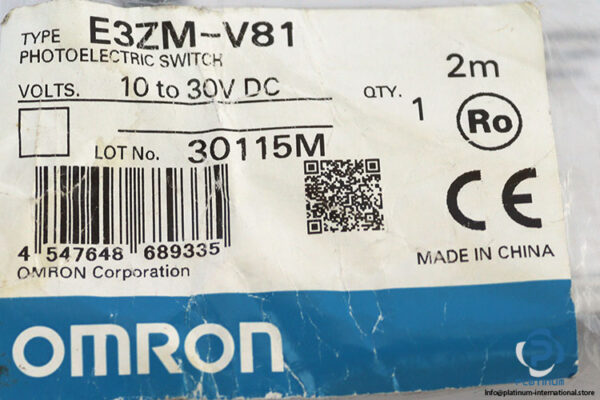

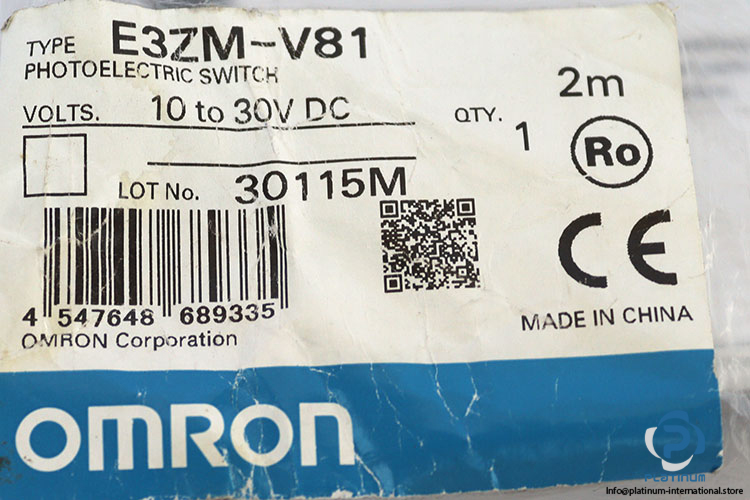

Part No.: 30115M

Operating Voltage: 10 … 30 V DC
Sensing method: Diffuse-reflective (mark detection)
Sensing distance: 10 … 14 mm
Light source: White LED (450 to 700 nm)

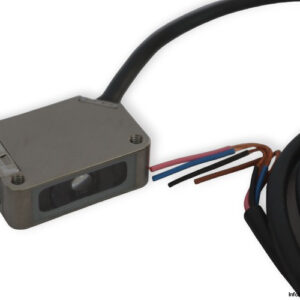

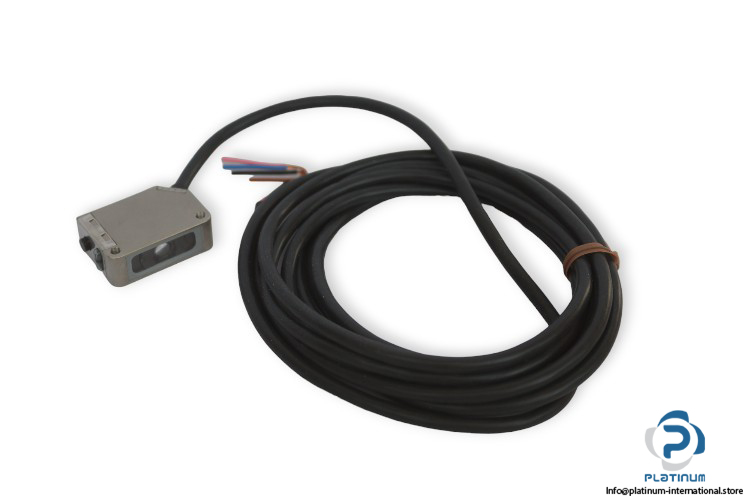

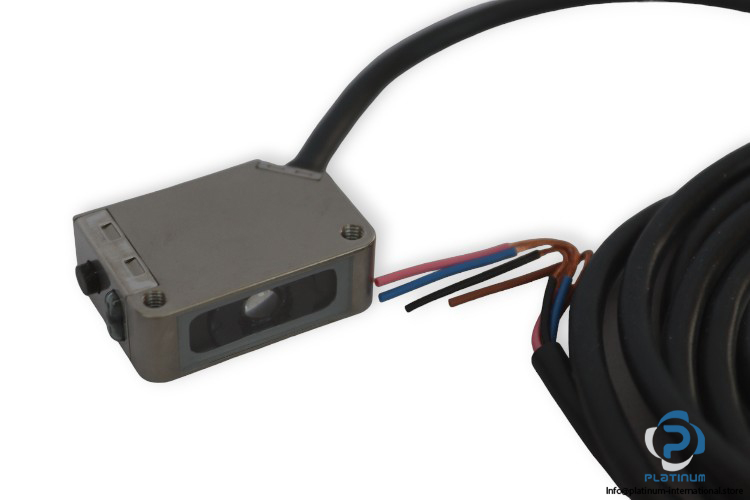

Connection method: Pre-wired models (Cable length 2 m)
Shape: Square type
Response time: Operate or reset: 50 µs max.
Current consumption: 25 mA max.
Power consumption: 750 mW max. (30 VDC)
Electrical Design: PNP
Degree of protection: IEC: IP67, IP69K (DIN40050-9)
Ambient temperature range (Operating): -40 … 60°C
Material:
Case: SUS316L
Lens: Methacrylate resin
Display: Polyether sulfone
Buttons: Fluorocarbon rubber
Cable: PVC
Dimensions: 11 x 21 x 32 mm
