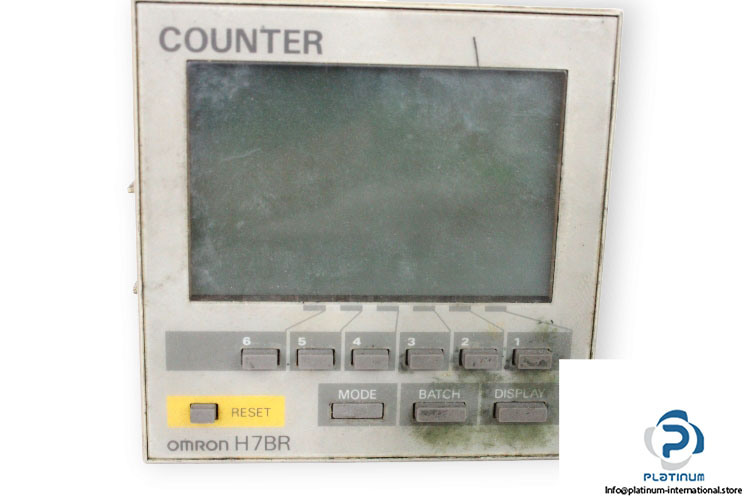

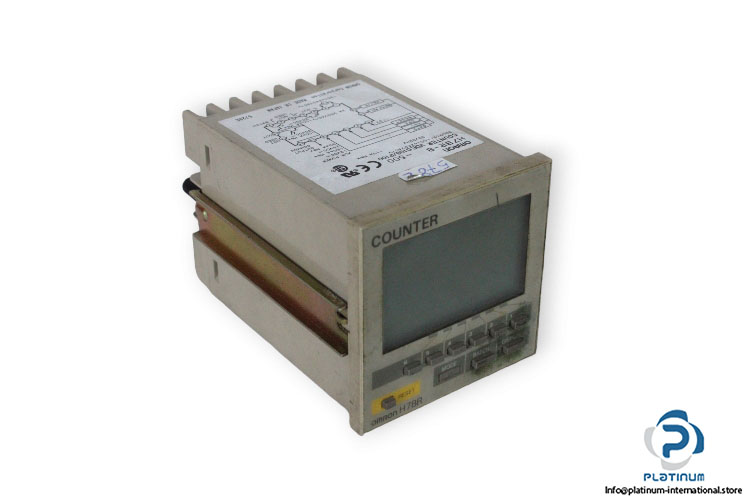

Omron H7BR-B Digital Counter
Manufacturer: OMRON
Type: Digital Counter
Model: H7BR-B
Rated supply voltage: 100 … 240 V AC
Power consumption: max. 11 VA
Control Outputs Contacts: 3 A at 250 V AC
External power supply:
160 mA, 12 VDC
80 mA, 24 VDC
Mounting method: Flush mounting
External connections: Screw terminals
Display: LCD with backlight
No. of Digits: 6 digits
Frequency: 50 … 60 Hz
Response time: 1 s
Operation temperature: -10 … 55°C
