Control System & PLCs Relays

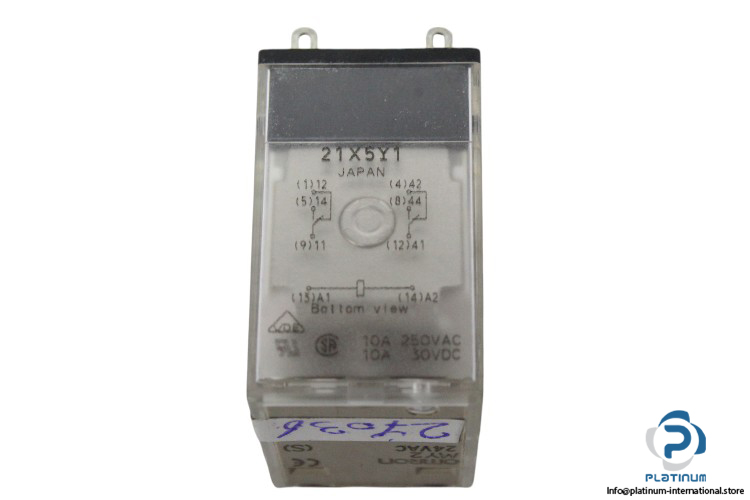

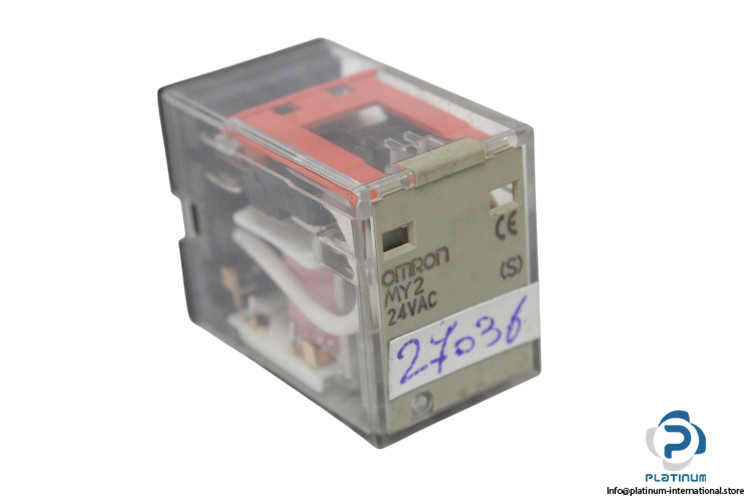

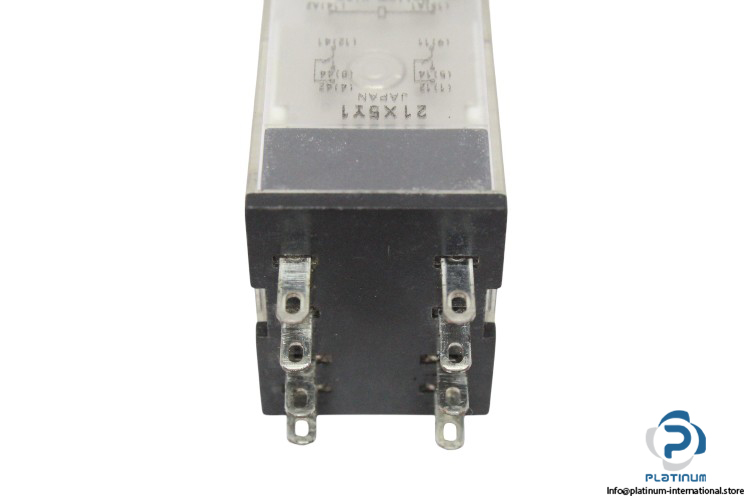

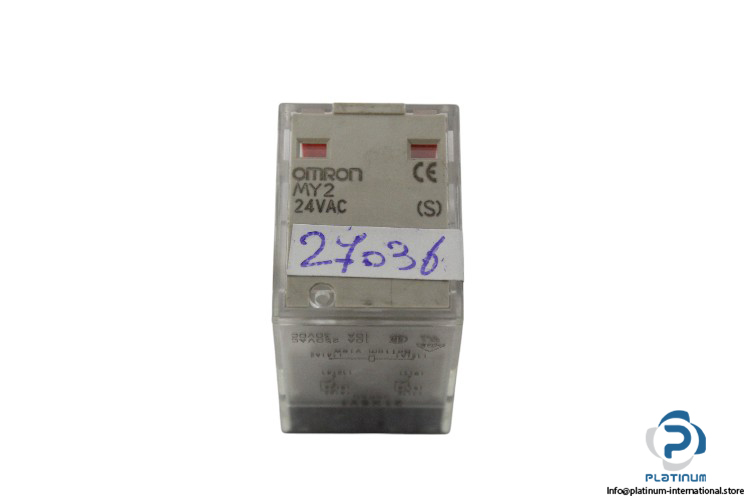

Omron MY2 24 VAC General-Purpose Relay

Name: OMRON MY2 24 VAC GENERAL-PURPOSE RELAY
SKU: 1056825
Availability: LimitedAvailability

omron-MY2-24-vac-general-purpose-relay-(used)

omron-MY2-24-vac-general-purpose-relay-(used)-1

omron-MY2-24-vac-general-purpose-relay-(used)-2

omron-MY2-24-vac-general-purpose-relay-(used)-3

Gebraucht

Auf Lager1 EinheitVersandbereit

General-purpose Relay

The Omron MY2 general-purpose relay features a 24 V AC coil voltage, 10A contact current rating, and DPDT contact form. Ideal for a variety of industrial and automation applications.

Hersteller

OMRON

SKU

1056825

Kategorie

Relays

Zustand

Gebraucht

100 10A 24v AC Automation coil Contact Dpdt General-purpose Industrial Mohm MY2 Omron Rating Relay Resistance voltage

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

Omron MY2 “ General-purpose Relay

The Omron MY2 general-purpose relay is designed to deliver high-performance switching in various industrial and automation systems. With a compact form factor and durable materials, it supports a wide range of contact configurations and voltage ratings.

Manufacturer: Omron

Type: General-purpose Relay

Model: MY2

Ref. No.: 21X5Y1

Series: MY

Coil Voltage	24 V AC
Contact Resistance	100 mohm
Coil Resistance	180 ohms
Release Time	20 ms max.
No. of Poles	2
Contact Voltage	250 V AC, 30 V DC
Contact Current Rating	10A
Contact Form	DPDT
Contact Method	Single
Contact Materials	Au cladding, AgPd
Ambient Operating Temperature	-25 to 70° C
Dimensions	28 X 36 X 21.5 mm
