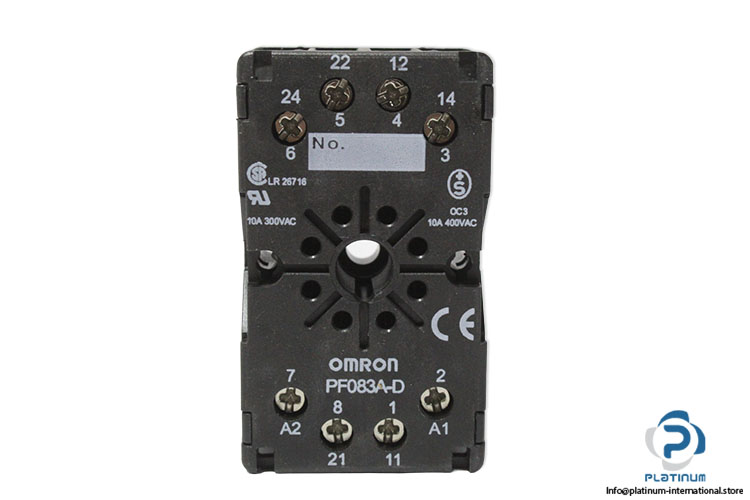

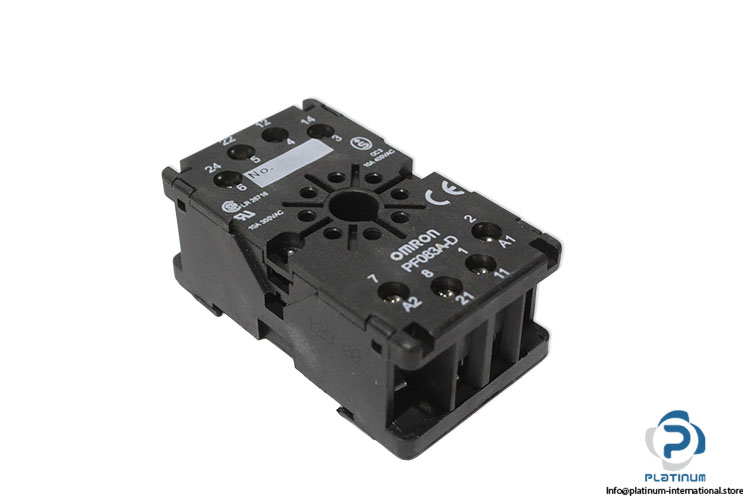

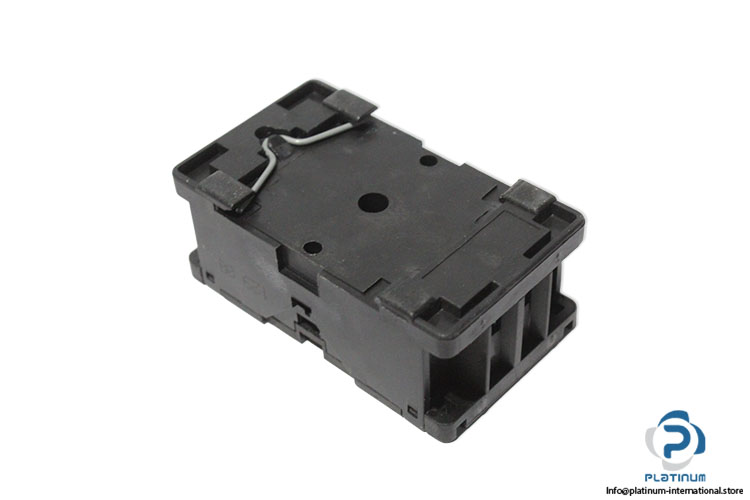

Omron PF083A-D Socket
Neu
Auf Lager40 EinheitenVersandbereit
The Omron PF083A-D is an 8-pin DIN rail relay socket designed for industrial automation and control applications. It features a 300 V AC rating, up to 12 A current capacity, IP20 protection, and reliable electrical connections in a compact design.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Code | W04 |
| Rated voltage IEC | 300 V AC |
| Rated current IEC | 12 A |
| Rated voltage UL | 300 V AC |
| Rated current UL | 10 A (or 12 A at 150 VAC) |
| No. of Pins | 8 |
| Mounting Method | DIN rail |
| Operating temperatures | -25 … + 85°C |
| Protection Degree | IP 20 |
| Dimensions | 38 x 29.5 x 27 mm |
| Torque On the Screws | max. 0.8 Nm |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1093425 |
| Weight | 0,06 |
