Omron V-15-1B Micro Switch
Gebraucht
Auf Lager1 EinheitVersandbereit
Microswitch
The Omron V151B microswitch features a pin plunger actuator, SPDT output, and supports both AC and DC non-inductive loads. Designed for reliable operation in industrial applications.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

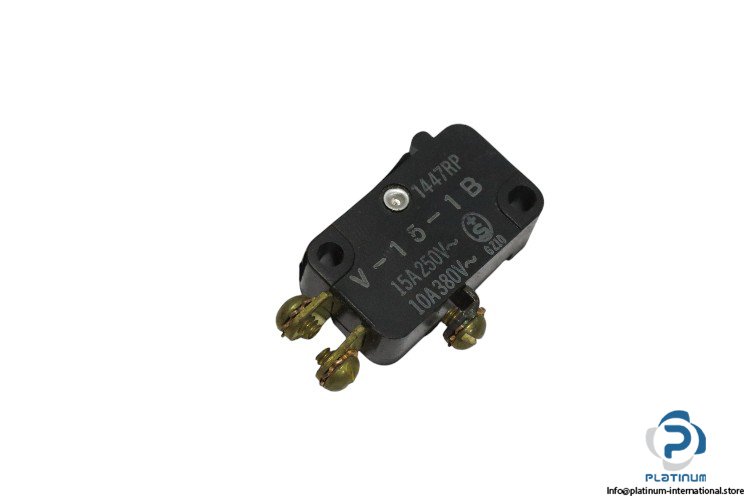

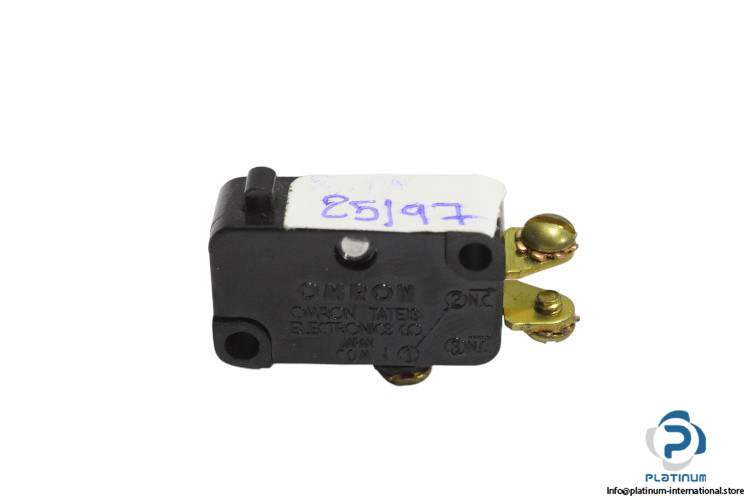

Omron V151B Microswitch
The Omron V151B is a compact and reliable microswitch designed for precise switching in industrial control systems. Featuring a pin plunger actuator and SPDT output contact, it supports both AC and DC ratings for non-inductive loads with secure screw terminal connections.
Manufacturer: OMRON
Type: Microswitch
Model: V151B
Ref No.: 1447RP
Technical Data:
- Actuator: Pin plunger
- Ratings (AC) Non-Inductive Load: 15 A, 250 V AC
- Ratings (DC) Non-Inductive Load: 10 A, 380 V AC
- Contact Gap: 1 mm
- Output Contact: SPDT (Single Pole Double Throw)
- Terminal: Screw terminals
