Opto 22 G4 ODC5 Digital Output Module
Gebraucht
Auf Lager2 EinheitenVersandbereit
Digitale Ausgangsmodul OPTO 22 G4 ODC5 digitales Ausgangsmodul mit 60 VDC Schaltfähigkeit, 3 A Dauerbelastungsstrom und 5 V Logiksteuerung für industrielle Automatisierungssysteme.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

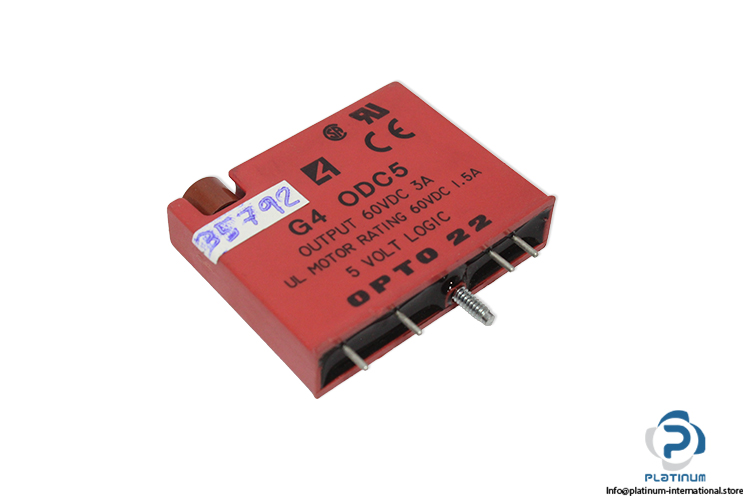

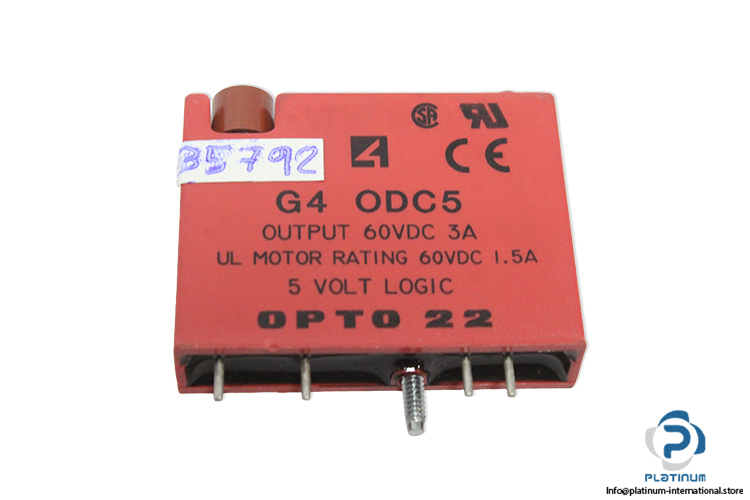

OPTO 22 G4 ODC5 Digital Output Module
The OPTO 22 G4 ODC5 is a high-performance digital output module designed for reliable DC switching in industrial control systems. As part of the G4 family, this module provides stable low-voltage switching capability with 5 V logic control, ensuring compatibility with PLC and automation platforms.
Manufacturer: OPTO 22 (USA)
Type: Digital Output Module
Model: G4 ODC5

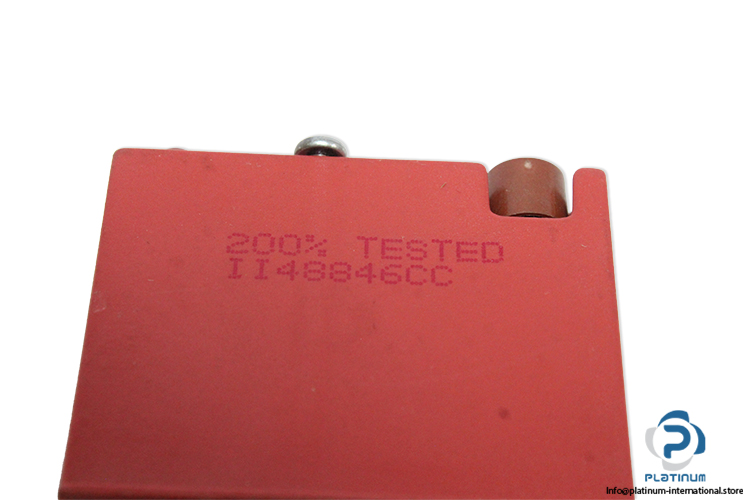

Code: II48846CC
Family: G4
| Output Type | DC Switching Output |
| Nominal Output Voltage | 60 VDC Max |
| Continuous Load Current | 3 A |
| UL Motor Rating | 60 VDC / 1.5 A |
| Logic Control Voltage | 5 V Logic |
| Operating Temperature | -30 °C To 70 °C |
| Application | Used To Switch Low-Voltage Resistive Loads |
