Oriental Motor PK266-01B Stepper Motor
Neu
Auf Lager1 EinheitVersandbereit
Stepper Motor
Oriental Motor Vexta PK26601B 2-phase hybrid stepper motor with 1.8° step angle, 1.17 N·m holding torque, and support for unipolar and bipolar configurations. Recommended for CNC machines, robotics, and precision positioning systems.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

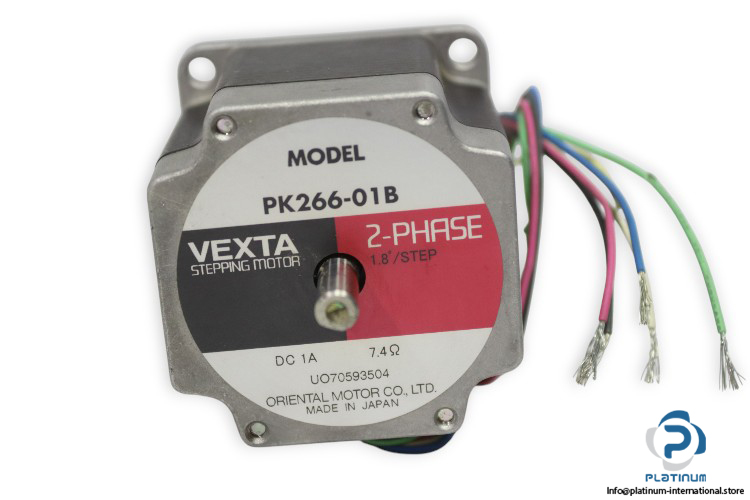

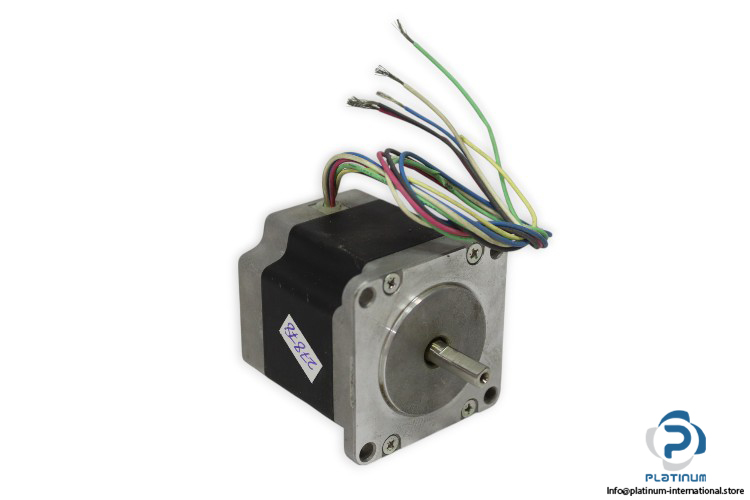

Oriental Motor Vexta PK26601B Stepper Motor
The Oriental Motor Vexta PK26601B is a precision hybrid 2-phase stepper motor designed for accurate positioning and stable torque output in industrial automation systems.
Manufacturer: Oriental Motor
Brand: Vexta
Type: Stepper Motor
Model: PK26601B
Ref. Code: UO70593504
Suitable for CNC systems, positioning tables, automated machinery, and precision motion control applications.
Please contact us via Ask for assistance with any inquiries.
| Motor Type | 2-Phase Stepper (Hybrid) |
| Step Angle | 1.8° per step (200 steps/rev) |
| Current | 1 A per phase |
| Winding Resistance | 7.4 ohm |
| Shaft | Double-end round |
| Frame Size | 56.4 mm square (2.22 inch) |
| Connection | Supports both unipolar and bipolar configurations |
| Holding Torque | 1.17 N·m |
