Orsta TGL 26223/60 Directional Control Valve
Orsta Hochdruck-Richtungsventil mit 32 MPa Nennwert und 60 L/min Durchflusskapazität, ausgestattet mit einer G 45-H Magnetspule für schnelles, hochfrequentes Schalten in anspruchsvollen Hydrauliksystemen.
ORSTA TGL 26223/60 DIRECTIONAL CONTROL VALVE

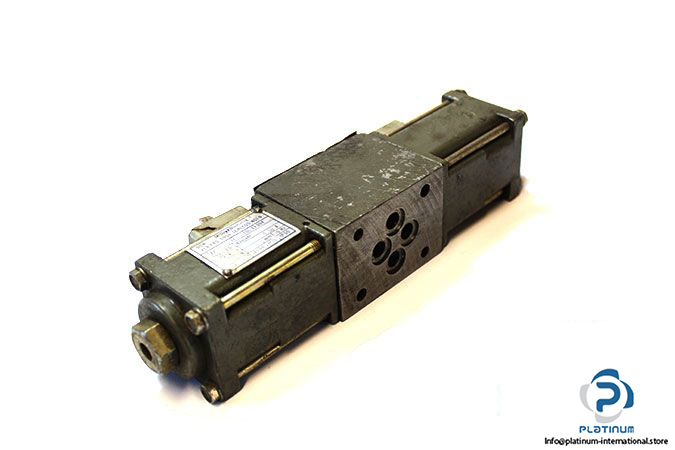

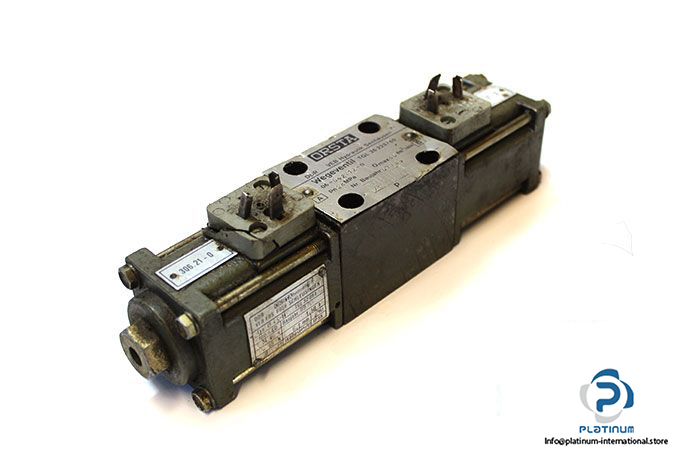

The Orsta TGL 26223/60 directional control valve is designed for high-pressure hydraulic applications requiring precise control and efficient flow handling. It features a rated pressure of 32 MPa and supports a maximum flow of 60 L/min. The valve is paired with the ORSTA G 45-H solenoid coil for fast, high-cycle switching in industrial systems.

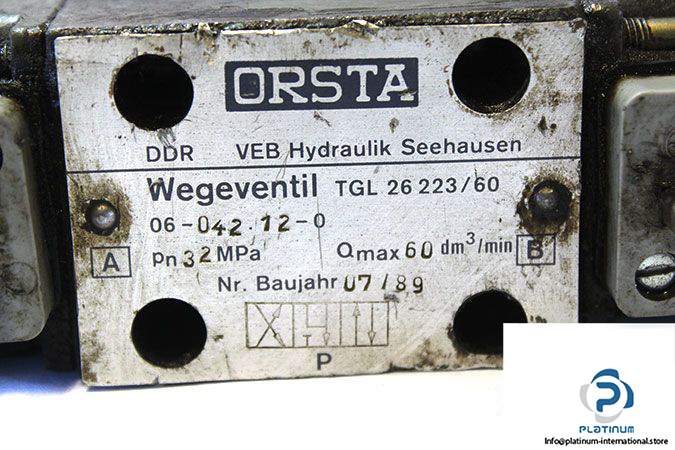

Manufacturer: Orsta
Type: Directional Control Valve
Model: TGL 26223/60
Part No.: 06-04212-0
Code: 07/89

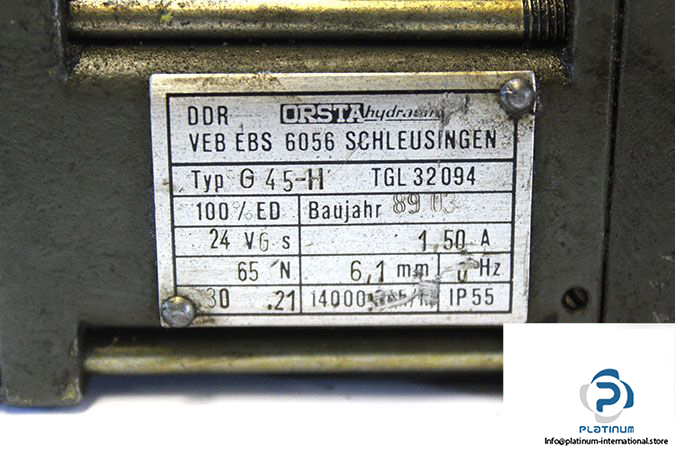

Coil Technical Information
| Rated Pressure (PN) | 32 MPa (320 bar) |
| Max Flow Rate (Q max) | 60 dm³/min (60 L/min) |
| Attachment | ORSTA G 45-H SOLENOID COIL |
| Part No. | TGL 32094 |
| Code | 30 / 21 |
| Voltage | 24 V |
| Current | 1.50 |
| Duty | 100% ED |
| Displacement (Hub) | 6.1 mm |
| Force | 65 N |
| Cycle Rate | 14,000 switching cycles/hour |
| Protection Class | IP 55 |
