Orsta WS5 Valve Coil

Auf Lager1 EinheitVersandbereit

Valve Coil

The Orsta WS 5 Valve Coil delivers reliable performance with 220 V AC rating, continuous duty cycle, 10 mm stroke, and IP54 protection for industrial applications.

Hersteller
ORSTA
SKU
1082156
Zustand
Gebraucht
Teilen
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

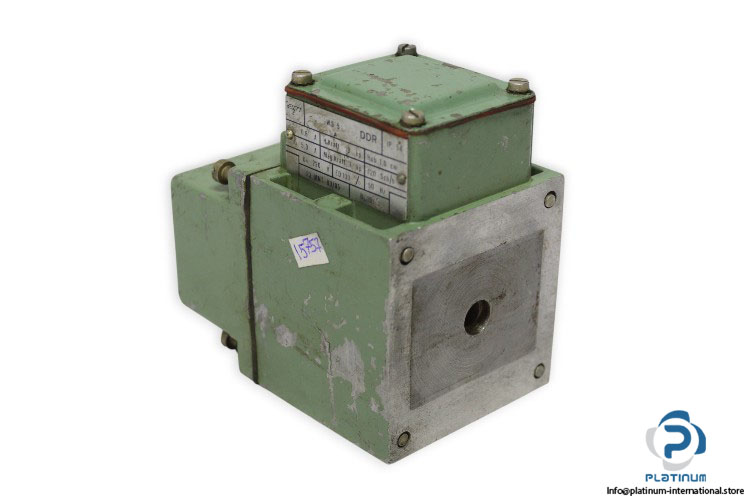

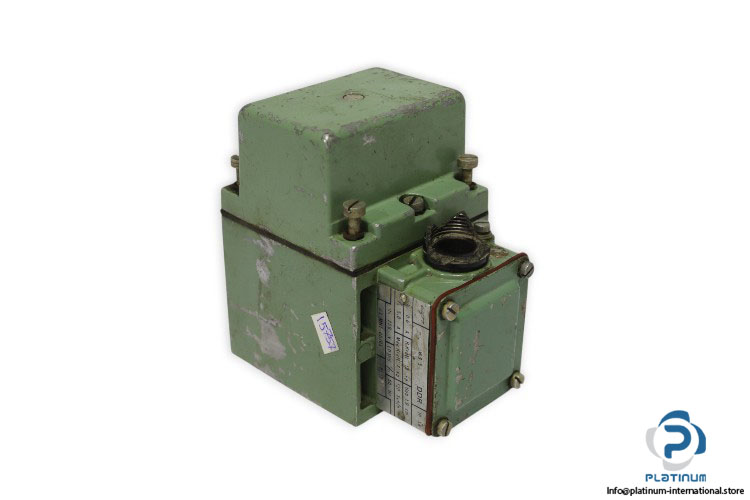

Orsta WS 5 Valve Coil

The Orsta WS 5 Valve Coil is a robust and reliable coil unit designed for continuous duty operation in demanding industrial applications. Built with a flange-type base and IP54 protection, it ensures durability, efficient switching performance, and long service life.

Manufacturer: Orsta

Type: Valve Coil

Model: WS 5

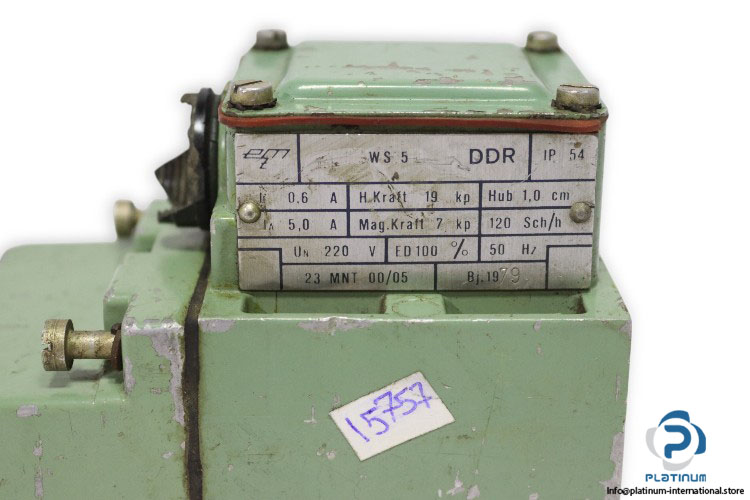

Rated Voltage (Un)220 V AC
Current0.6 A
Magnet Current5.0 A
Holding Force (H. Kraft)19 kp (‰ˆ 186 N)
Magnetic Force (Mag. Kraft)7 kp (‰ˆ 69 N)
Stroke (Hub)1.0 cm (10 mm)
Duty Cycle (ED)100 % (Continuous Duty)
Frequency50 Hz
Switching Rate120 switching cycles/hour
MountingFlange-type base with central bore
Weight Code (from plate)23 MNT 00/05
Protection ClassIP54
