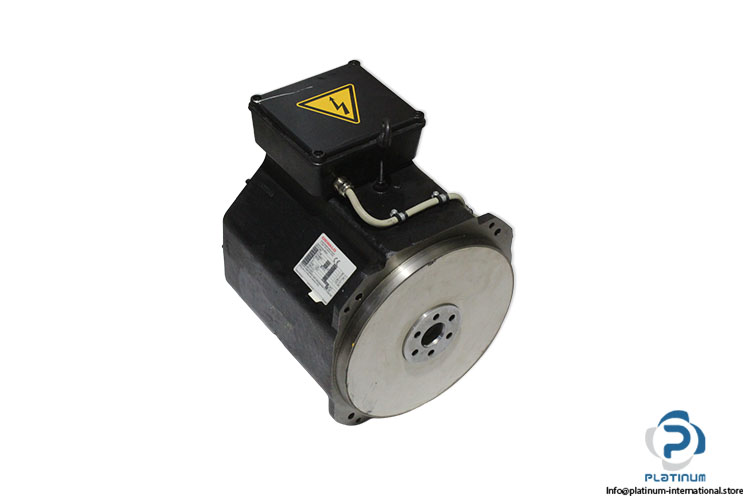

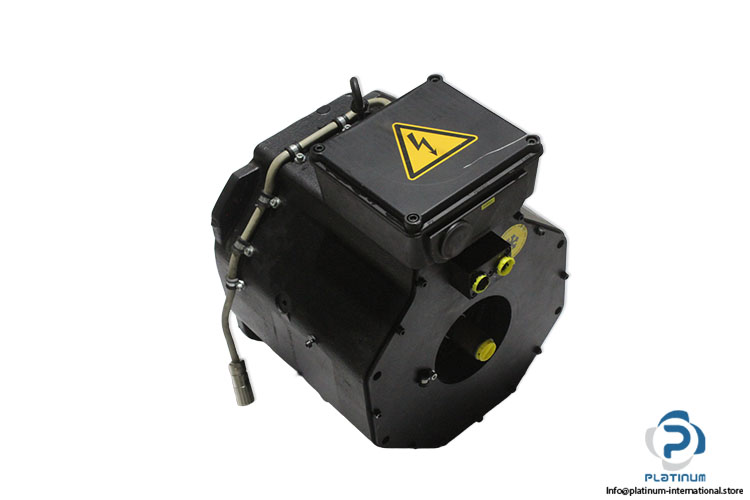

Oswald MFS16.18WI Synchronous Motor
Neu
Auf Lager1 EinheitVersandbereit
9 999,99$
Synchronous Motor The OSWALD MFS16.18WI is a water-cooled synchronous motor featuring 18.9 kW rated power, high torque output, and a HEIDENHAIN absolute encoder, making it ideal for precision industrial motion control applications.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

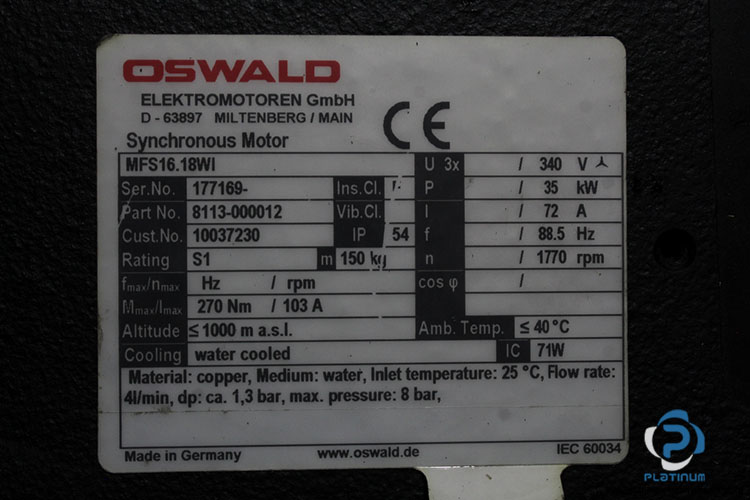

| Part No. | 8113-000012 |
| Ser.No. | 177169 |
| Rated Power [kW] | 35 |
| Rated Voltage [V] | 3× / 340 V |
| Rated Current [A] | 72 |
| Rated Speed [rpm] | 1770 |
| Maximum Torque / Current | 270 Nm / 103 A |
| Rated Frequency [Hz] | 88.5 |
| Duty | S1 |
| Insulation class | Ins. Cl. F |
| Protection Class | IP 54 |
| Vibration Class | Vib. Cl. I |
| Standard | IEC 60034 |
| Cooling Type | Water cooled (IC 71W) |
| Active Material | Copper |
| Cooling Medium | Water |
| Inlet Temperature | 25 °CFlow Rate: 4 l/min |
| Pressure Drop (? p) | ca. 1.3 bar |
| Maximum Pressure | 8 bar |
| Connection | terminal box |
| Stock key | CON003 |
| Condition | New |
| SKU | 1100532 |
| Weight | 130 |
