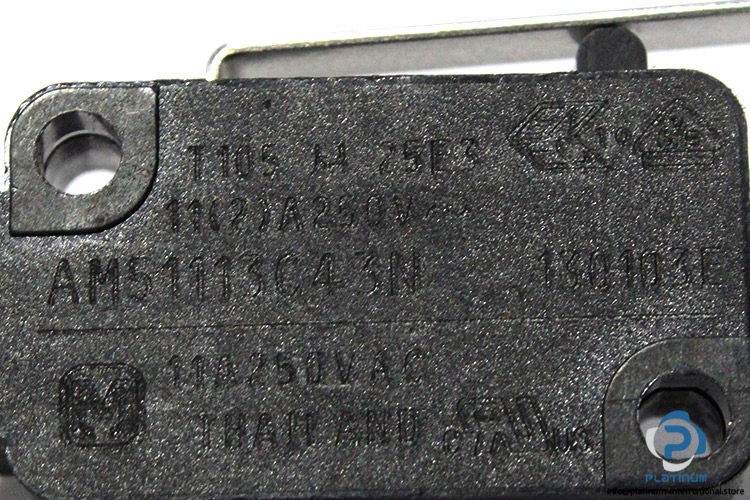

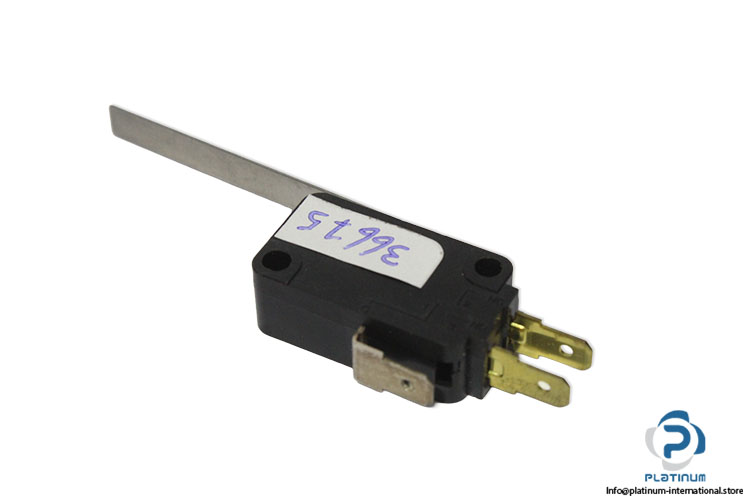

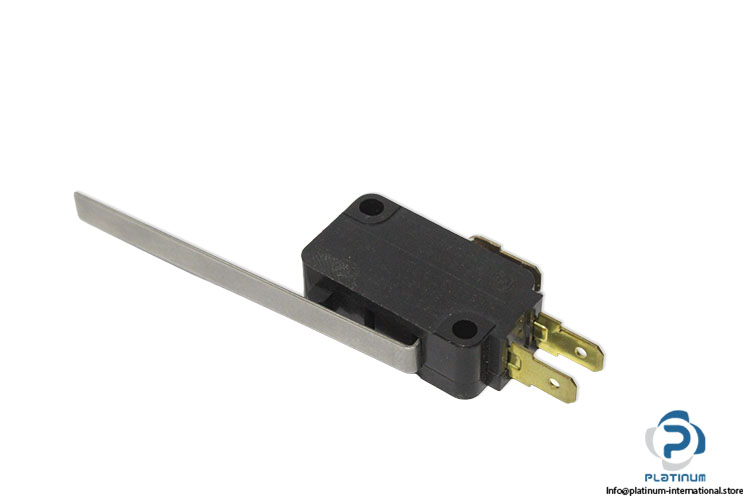

Panasonic AM51113C43N / 59 MM Lever Miniature Switch
Neu
Auf Lager2 EinheitenVersandbereit
14,44$
High Performance Miniature Switch Panasonic Matsushita AM51113C43N miniature switch featuring a long hinge lever actuator, SPDT contacts, 11A 250VAC rating, and reliable operation for industrial automation and control applications.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Series | AM5 |
| Code | 130103E |
| Terminals 1 | Bottom COM, SPDT |
| Contact rating | AgSnO2 alloy |
| Operating force by pin plunger (max.) 4 | 0.98 N |
| Agency standard 3 | UL/C-UL rated, ENEC/ VDE approved |
| Contact | Cadmium free |
| Type of Actuator | Long hinge lever |
| Type of switch | QV switch |
| Rated Voltage | 11A,250VAC |
| Switch Length | 59 MM |
| Operating force, max. | 3.63 N |
| Release force, min. | 1.12 N |
| Pretravel, max. | 0.4 mm |
| Movement differential, max. | 0.05 mm |
| Allowable operating speed (at no load) | 0.1 to 1,000 mm/sec. (at pin plunger position) |
| Max. operating cycle rate (at no load) | 240 cpm |
| Ambient temperature | –25°C to +80°C |
| Condition | New |
| SKU | 1099387 |
| Weight | 0,01 |
