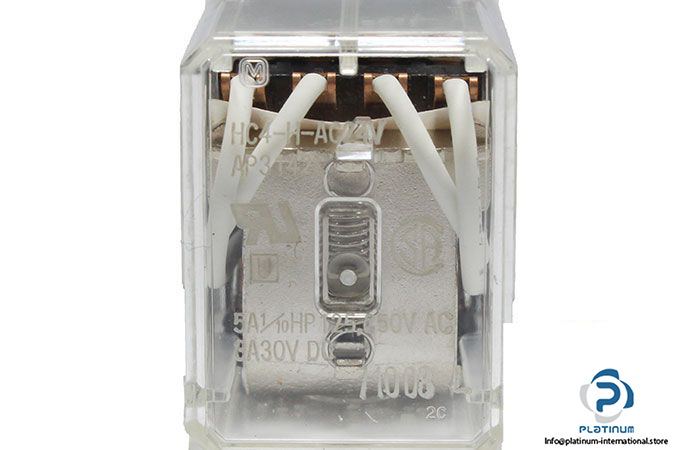

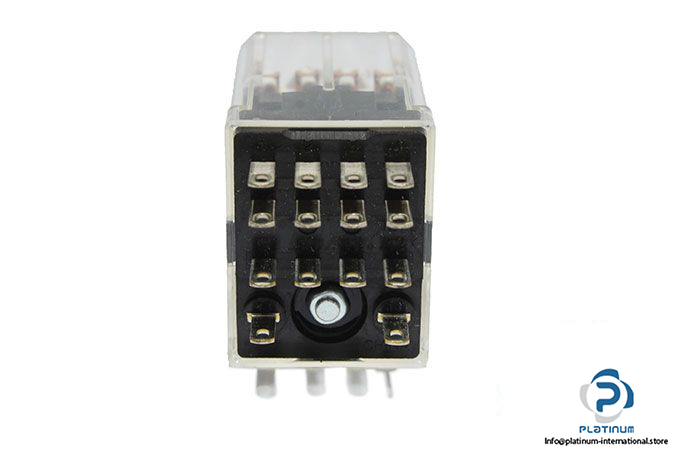

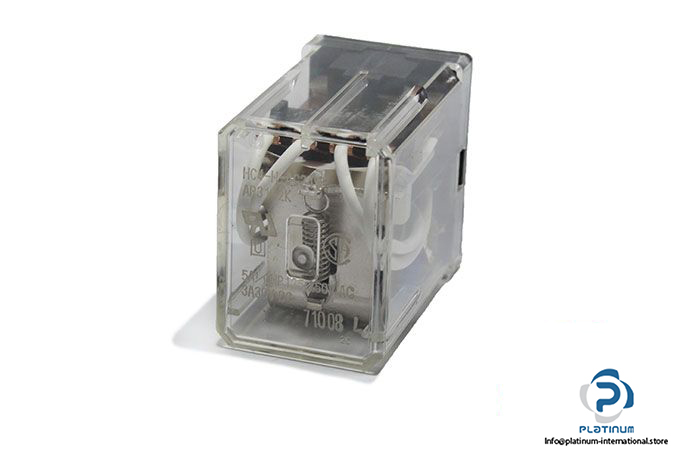

Panasonic HC4-H-AC24V Relay
Manufacturer: Panasonic
Type: Relay
Model: HC4-H-AC24V
Contact Arrangement: 4 form C
Terminal Arrangement: Plug-in type
Nominal Coil Voltage: 24 VAC
Contact Resistance: max. 30 mΩ
Contact Material: AgNi type + Au clad
Nominal Switching Capacity: 5 A, 250 VAC
Switching Power: max. 1250 VA
Switching Voltage: 250 VAC
Switching Current: 5 A
Ambient Temperature: -50 … 70°C
Dimensions: 20 X 34 X 27 mm
Weight: 0.035 Kg
