Panasonic MHMD042G1C Servo Motor
Gebraucht
Auf Lager1 EinheitVersandbereit
177,77$
AC SERVO MOTOR
Panasonic MHMD042G1C is a 0.4 kW AC Servo Motor with high-resolution 20-bit encoder, 1.3 Nm continuous torque, and IP65 protection ” perfect for industrial automation tasks requiring precision and performance.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

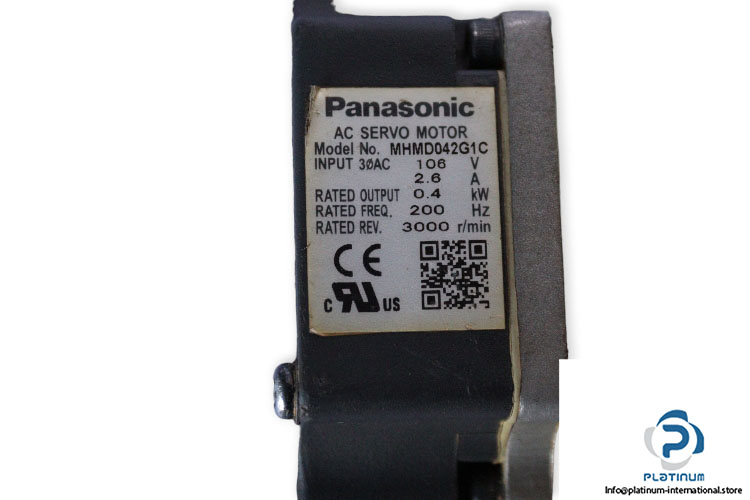

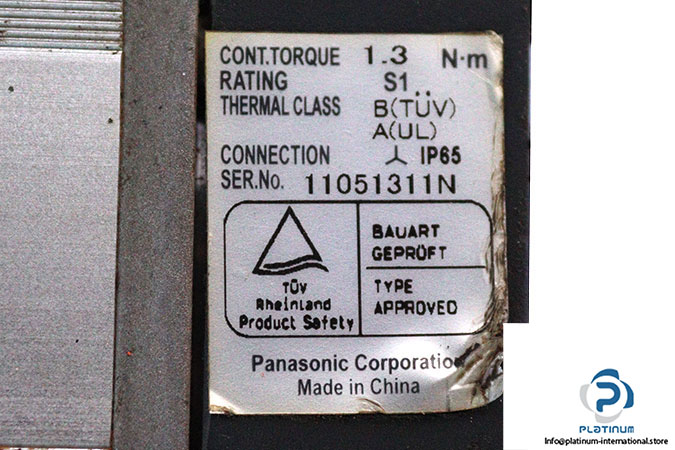

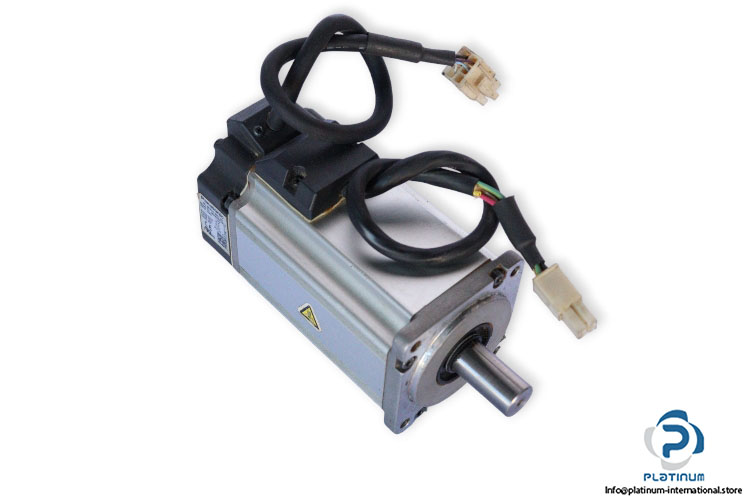

PANASONIC MHMD042G1C AC SERVO MOTOR
The Panasonic MHMD042G1C AC Servo Motor is engineered for high-performance motion control applications, offering precise speed and torque control with exceptional efficiency. Ideal for demanding industrial environments, it delivers powerful output and high-resolution feedback for seamless integration in automation systems.
Manufacturer: Panasonic
Type: AC Servo Motor
Model: MHMD042G1C
Serial Number: 11051311N
| Power Supply | 0.9 KVA |
| Rated Voltage | 106 V AC |
| Current Consumption | 2.6 A |
| Continuous Torque | 1.3 Nm |
| Rated Output | 0.4 kW |
| Rated Frequency | 200 Hz |
| Rated Speed | 3000 r/min |
| Maximum Peak Torque | 3.8 Nm |
| Maximum Current | 11 A |
| Maximum Speed | 5000 r/min |
| Moment of Inertia (without brake) | 0.67 kgm² × 10»´ |
| Duty | S1 |
| Thermal Class | B (TUV), A (UL) |
| Protection Class | IP65 |
| Encoder | Incremental |
| Pulse Count | 20 bit |
| Resolution | 1,048,576 |
| Wires | 5 |
