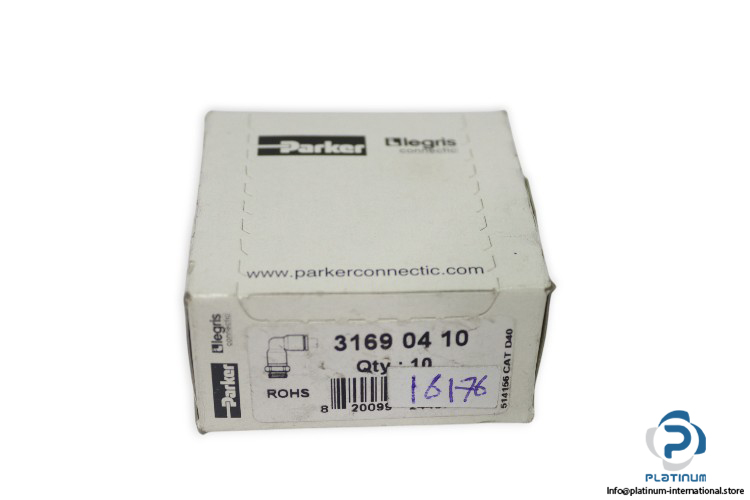

Parker 3169 04 10 Pneumatic Push-IN Fitting
Neu
Auf Lager4 EinheitenVersandbereit
Pneumatic Push-In Fitting
The PARKER Legris 31690410 LF 3000 fitting is a 90° elbow push-in connector for 4 mm tubes and G 1/8 ports, made from durable polymer with stainless steel gripping ring and NBR seals, suitable for compressed air systems.3000316904104mm90BsppConnectorElbowfittingG1/8IndustriallegrisLFNBRParkerPneumaticPneumaticsPolymerPortPush-InRingSealSeriesstainlessSteeltoTube
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

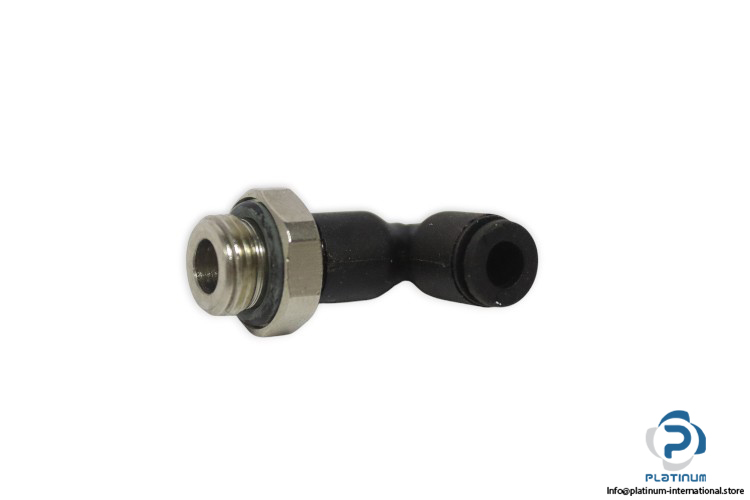

PARKER Legris 31690410 Pneumatic Push-In Fitting
The PARKER Legris 31690410 from the LF 3000 series is a high-quality pneumatic push-in fitting designed for fast and reliable connection of tubes and ports. Its 90° elbow design and durable polymer construction ensure long service life in industrial pneumatic systems.
Manufacturer: PARKER Legris
Type: Pneumatic Push-In Fitting
Part No.: 31690410
Series: LF 3000
Ref Code: 514156 CAT D40
| Product Style | Stud Fitting |
| Shape | Elbow 90° |
| Configuration | Tube to Port |
| Connection 1 Type | Tube |
| Connection 1 Size | 4 mm Tube O.D. |
| Connection 2 Type | Male BSPP |
| Connection 2 Size | G 1/8 inch Thread |
| Hex Size | 13 |
| Hex Type | Hexagon Metric |
| Vacuum Pressure Rating | 755 mm-Hg |
| Maximum Operating Temperature | 80 °C |
| Minimum Operating Temperature | -20 °C |
| For Fluid Type | Air (Compressed Air), Other Fluids: Please Consult Us |
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
