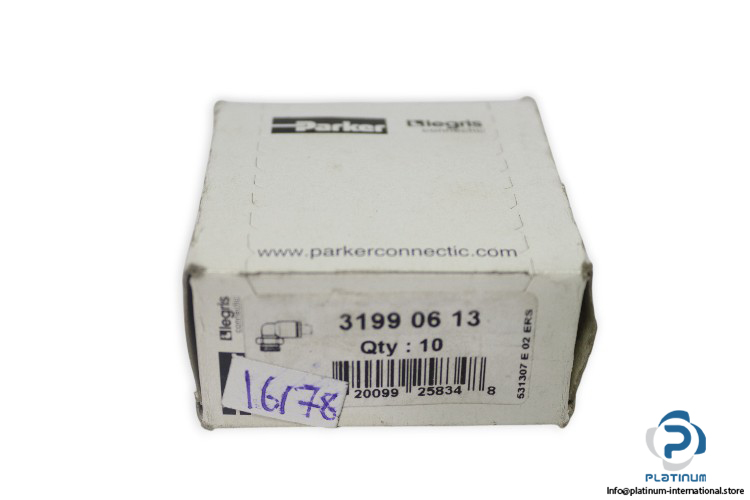

Parker 3199 06 13 Push-IN Fitting
Neu
Auf Lager1 EinheitVersandbereit
Pneumatic Push-In Fitting
The PARKER Legris 31990613 LF 3000 series push-in fitting features a 90° elbow design, G 1/4 male BSPP thread, and 6 mm tube connection for reliable compressed air systems up to 80 °C.1/4300031990613690AirBsppComponentsCompressedConnectorDegreeElbowfittingGlegrisLFmalemmParkerPneumaticPolymerPush-InStudTechnicalTube
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

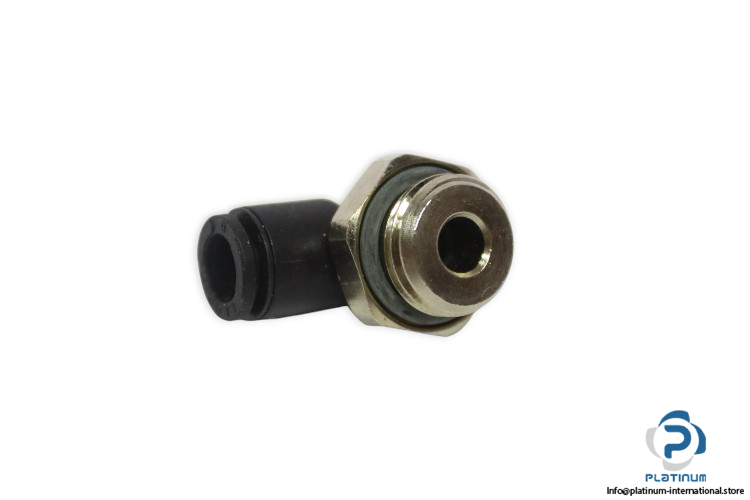

PARKER Legris 31990613 Pneumatic Push-In Fitting
The PARKER Legris 31990613 from the LF 3000 series is a high-quality pneumatic push-in fitting designed for reliable air connection in automation systems. Its 90° elbow configuration and durable materials ensure leak-free performance and long-term resistance to mechanical and thermal stress.
Manufacturer: PARKER Legris
Type: Pneumatic Push-In Fitting
Part No.: 31990613
Series: LF 3000
Ref Code: 531307 E 02 ERS
SN: 20099 25834 8
| Configuration | Tube to Port |
| Shape | Elbow 90° |
| Product Style | Stud Fitting |
| Connection 1 Type | Tube |
| Connection 1 Size | 6 mm (O.D.) |
| Connection 2 Type | Male BSPP |
| Connection 2 Size | G 1/4 inch Thread |
| Hex Size | 16 |
| Hex Type | Hexagon Metric |
| Vacuum Pressure Rating | 755 mm-Hg |
| Maximum Operating Temperature | 80 °C |
| Minimum Operating Temperature | ˆ’20 °C |
| For Fluid Type | Air (Compressed Air), Other Fluids “ Consult Manufacturer |
| Body Material | Technical Polymer |
| Seal Material | NBR |
| Gripping Ring Material | Stainless Steel |
