Parker DX2-411-70 Double Solenoid Valve
Neu
Auf Lager4 EinheitenVersandbereit
99,99$
Double Solenoid Valve
The Parker DX2-411-70 / DX2.411.70 is a 5/3 way double solenoid valve with ISO 5599-1 subbase, flow rate of 4320 Nl/mn, operating pressure up to 12 bar, and durable construction for pneumatic automation.5/35599/1ActuatedAirAutomationControlDoubleDX2DX2-411-70ElectricalIndustrialISOParkerPneumaticSeriessolenoidSubbaseValveWay
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

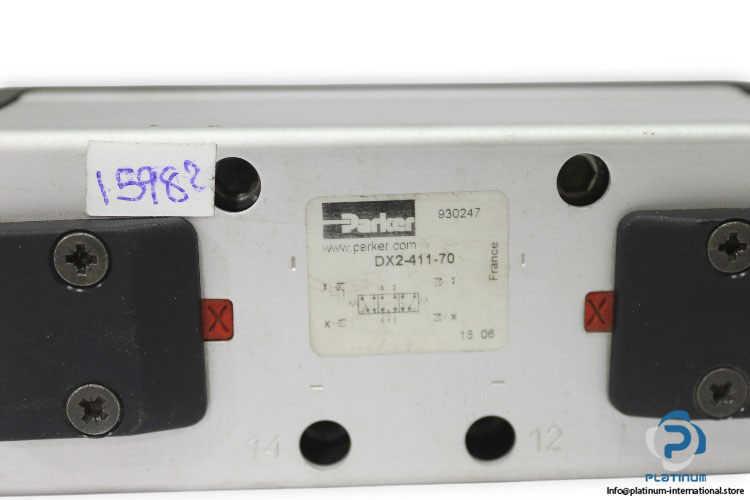

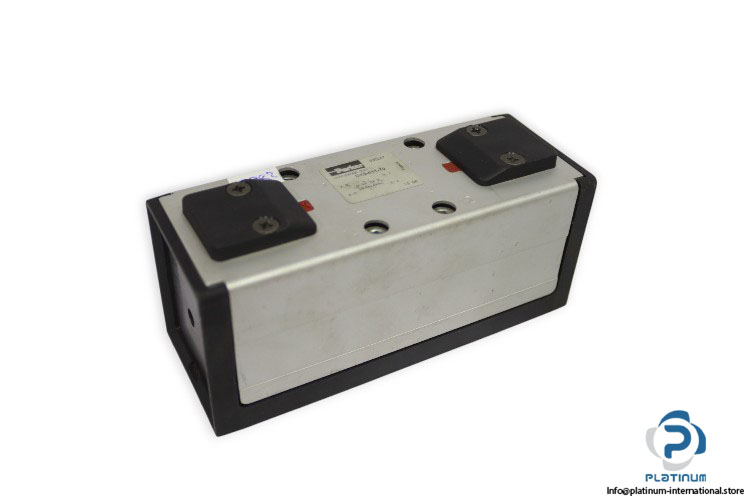

Parker DX2-411-70 Double Solenoid Valve
The Parker DX2-411-70 Double Solenoid Valve is engineered for reliable air control in industrial automation systems. With a robust construction, ISO-standard compatibility, and precise 5/3 way function, this valve ensures efficient pneumatic performance under demanding conditions.
Manufacturer: Parker
Type: Double Solenoid Valve
Model: DX2-411-70 / DX2.411.70
Part No.: 930247
Ref. No.: 16 06
Series: DX2
Material:
| Size | 70 mm |
| Function | 5/3 Way |
| Media | Air |
| Actuator | Electrical |
| Standard Subbase | ISO 5599-1 and NFE 49-080 |
| Operating Pressure | -0.9 to 12 bar |
| Piloting Pressure | 2 to 12 bar |
| Flow Rate | 4320 Nl/mn |
| Valve Member - Seat | Self-lubricating acetal - ceramic |
| Body | Polyamide reinforced fiberglass |
| Casing - End Plates | Anodized aluminum - Painted zinc plated steel |
| Valve Plate | Zamak |
| Seals | Nitrile |
| Springs | Stainless steel |
| Screws | Zinc plated steel |
| Function Selector Top Cover - Seal | Polyamide reinforced fiberglass - Polyester |
| Working Temperatures | -10 to +60°C |
| Connection | Sub-based |
