Parker DX2-421-70 Single Solenoid Valve
Neu
Auf Lager2 EinheitenVersandbereit
99,99$
Single Solenoid Valve
Parker DX242170 (DX2 Series) 5/2 way electrical actuator valve for air media with ISO 5599-1/NFE 49-080 subbase, 4320 Nl/mn flow, -0.9 to 12 bar operating pressure, and durable multi-material construction.-0.912432049-0805/25599/1ActuatorAutomationbarconnectionDX2DX242170ElectricalflowHighIndustrialISONFENl/MnParkerPneumaticSeriesSinglesolenoidSub-basedtoValveWay
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

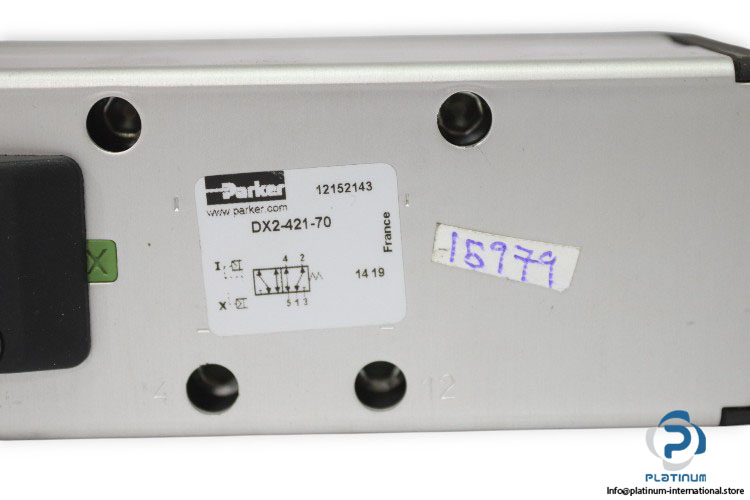

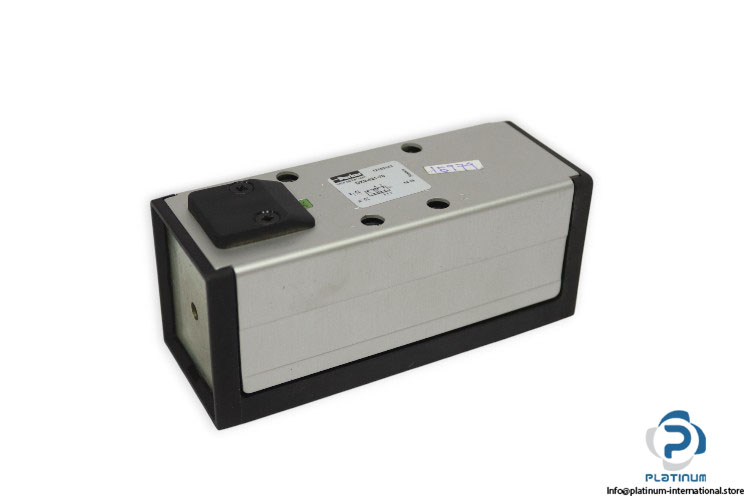

Parker DX242170 Single Solenoid Valve (DX2 Series)
The Parker DX242170 is a reliable 5/2 way single solenoid valve engineered for high-performance pneumatic control. Built with robust, corrosion-resistant materials and designed for ISO 5599-1 and NFE 49-080 subbases, it delivers consistent flow, wide operating pressure range, and dependable operation in industrial automation environments.
Manufacturer: Parker
Type: Single Solenoid Valve
Model: DX242170
Part No.: 12152143
Ref. No.: 14 19
Series: DX2
| Size | 70 mm |
| Function | 5/2 Way |
| Media | Air |
| Actuator | Electrical |
| Standard Subbase | ISO 5599-1 and NFE 49-080 |
| Operating Pressure | -0.9 to 12 bar |
| Piloting Pressure | 2 to 12 bar |
| Flow Rate | 4320 Nl/mn |
| Material “ Valve Member / Seat | Self-lubricating acetal / Ceramic |
| Material “ Body | Polyamide reinforced fiberglass |
| Material “ Casing / End Plates | Anodized aluminum / Painted zinc plated steel |
| Material “ Valve Plate | Zamak |
| Material “ Seals | Nitrile |
| Material “ Springs | Stainless steel |
| Material “ Screws | Zinc plated steel |
| Material “ Function Selector Top Cover / Seal | Polyamide reinforced fiberglass / Polyester |
| Working Temperatures | -10 to +60°C |
| Connection | Sub-based |
