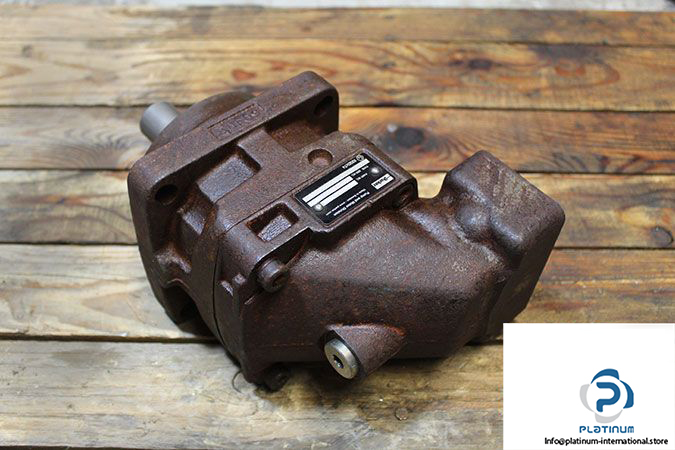

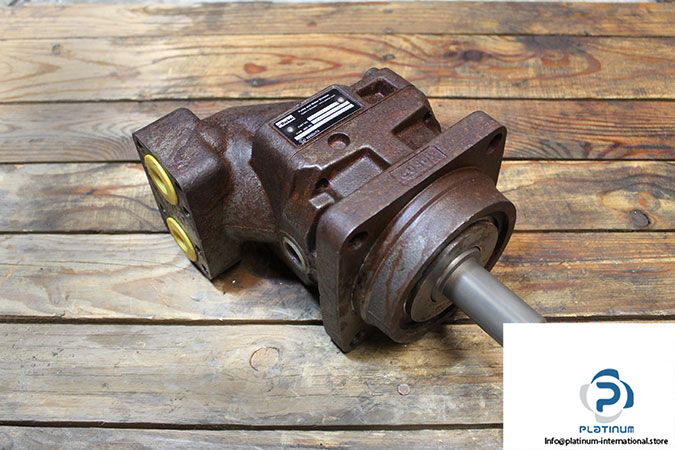

Parker F12-040-MF-IV-K-000-000-0 Axial Piston Hydraulic Motor

Manufacturer: Parker

Type: Axial Piston Hydraulic motor

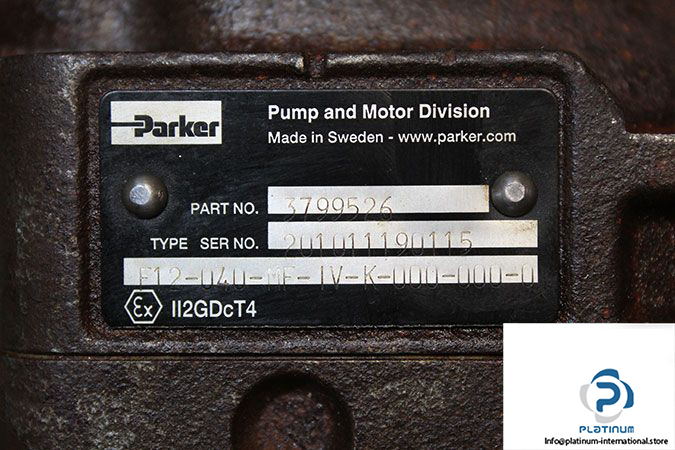

Model: F12-040-MF-IV-K-000-000-0

Part No.: 3799526

Size: 40

Displacement: 40 cm³

Pressure Continuous: 420 bar

Max Pressure: 480 bar

Speed Max Continuous rpm: 6100

Motor Input Flow Max Continuous: 244 l/min

Drain temperature³ max: 115 °C

Theoretical torque at 100 bar: 63.5 Nm

Moment of Inertia: 2.9 kgm²

Weight: 16 KG
