Penny+Giles SLS320/950/L/66/10/P Linear Position Sensor
Neu
Auf Lager2 EinheitenVersandbereit
499,99$
Linearpotentiometer Der Penny+Giles SLS320950L6610P bietet einen Hub von 950 mm, einen Widerstand von 38 kOhm, eine Versorgungsspannung von 74 V DC und IP66-Schutz in einem robusten Nylatron MC901-Gehäuse, ideal für raue Industrieumgebungen.
950HighHousingIndustrialIP66LinearmmNylatronPenny+GilesPositionSensorSeriesSLSSLS320950L6610PTransducervoltage
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

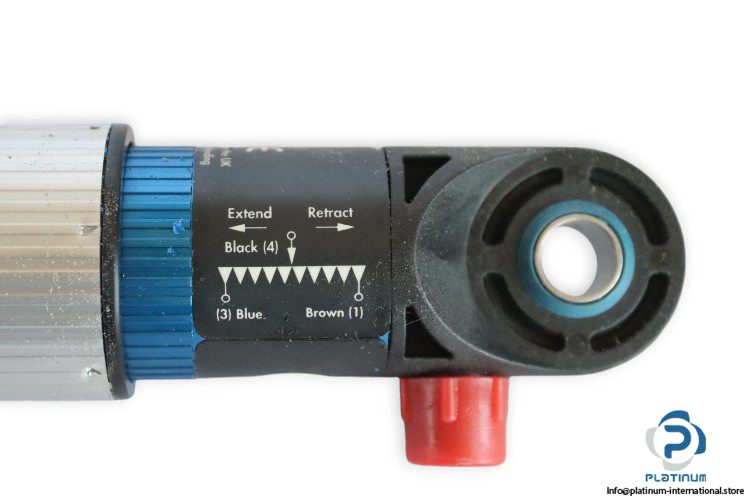

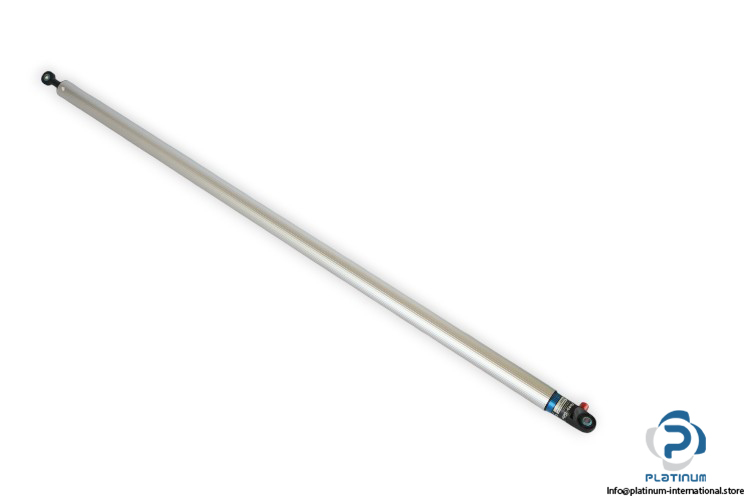

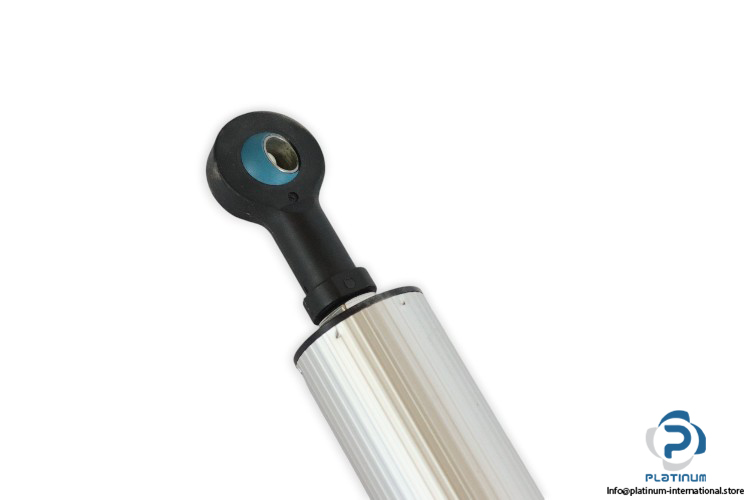

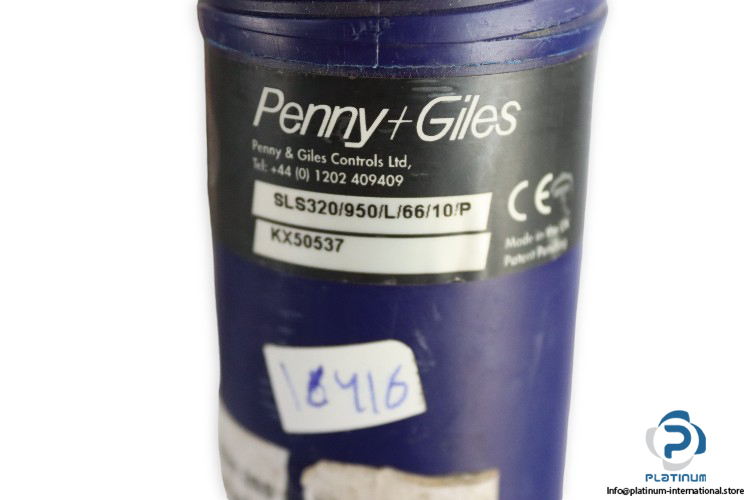

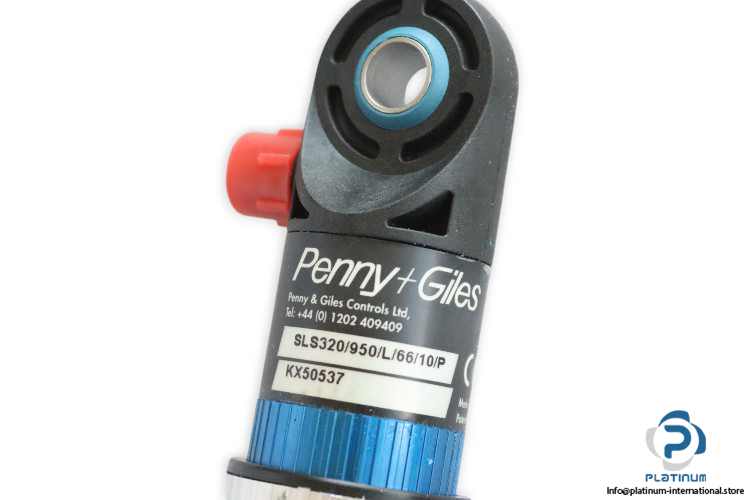

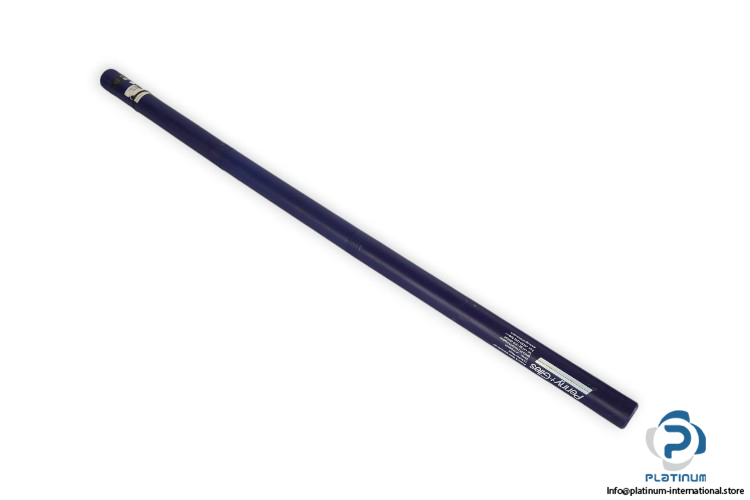

PENNY+GILES SLS320950L6610P LINEAR POSITION SENSOR
This high-precision linear position sensor from the SLS series by Penny+Giles is engineered for demanding applications requiring accurate position feedback in harsh environments. With a long electrical stroke and durable construction, it ensures reliable performance even under extreme conditions.
Manufacturer: PENNY+GILES
Type: Linear Position Sensor
Model: SLS320950L6610P
Part No: KX50537
| Series | SLS |
| Electrical Stroke | 950 mm |
| Resistance | 38 |
| Resolution | Virtually Infinite |
| Independent Linearity | Guaranteed: 0.15% / Typical: 0.05% |
| Rated Supply Voltage | 74 V DC |
| Power Loss | 19 W |
| Connection | Cabled Socket 10 m |
| Housing Material | Nylatron® MC901 (Blue) |
| Length, Diameter | 1136 mm, 32 mm |
| Protection Class | IP66 |
| Ambient Temperature | -30 / 100 |
