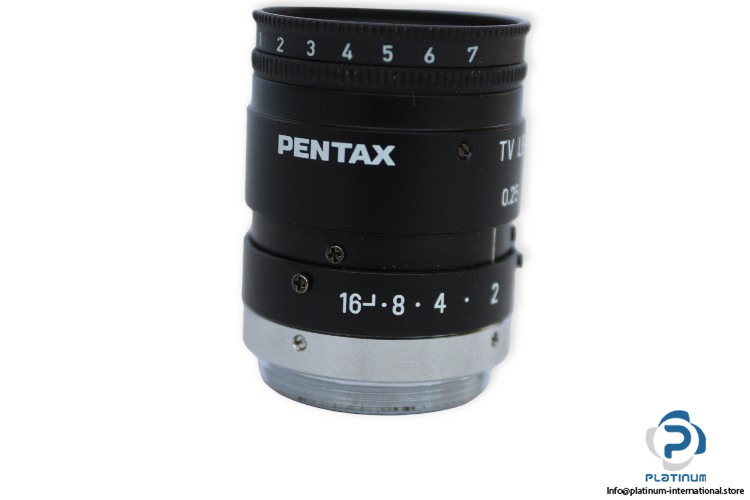

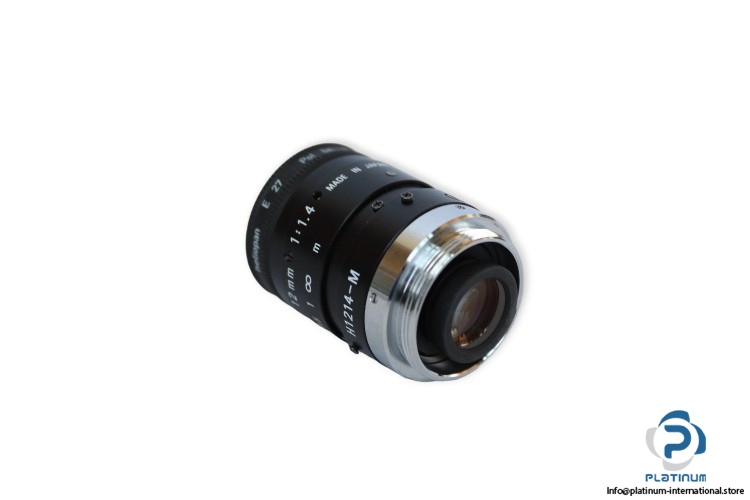

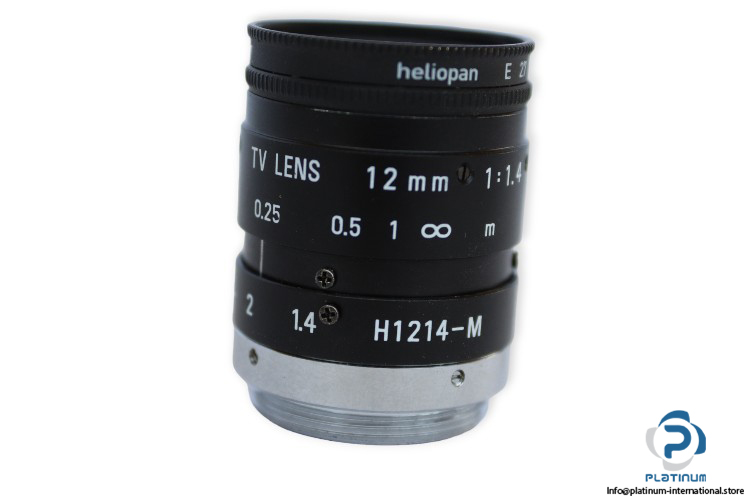

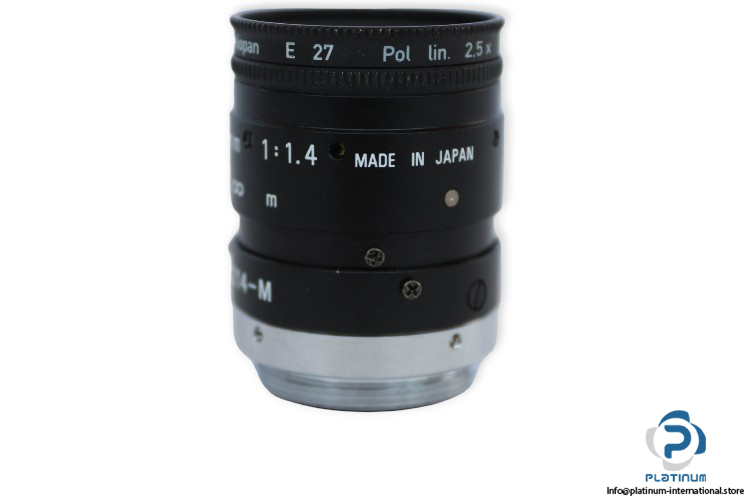

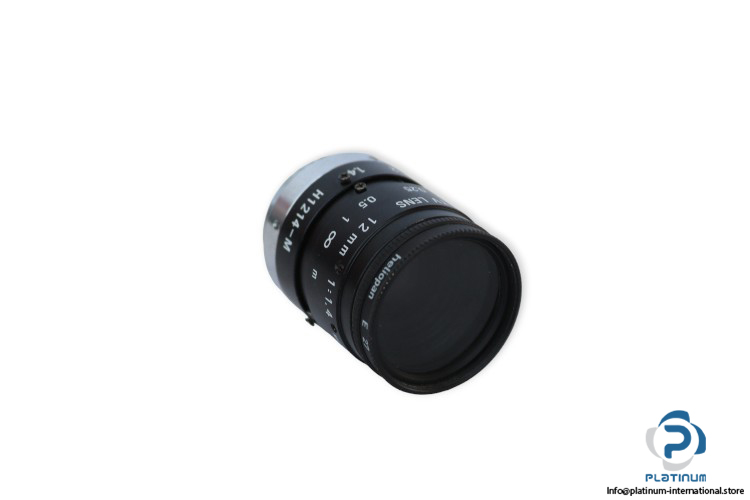

Pentax H1214-M Camera Lens

Manufacturer: PENTAX
Type: Camera Lens
Model: H1214M

Application: For Machine Vision 1/2 Format Mega-Pixel Camera
Filter Screw Size: 27 mm, P: 0.5 mm
Focal Length: 12 mm
Aperture Ratio Max.: 1:1.4
Iris Range: F / 1.4 … F / 16
Angle of View:
Diagonal: 35.69°
Horizontal: 28.91°
Vertical: 21.88°
Picture format: 6.4 x 4.8 mm
Focusing Max.: 0.25 m
Back Focal Length: 11.50 mm
Flange Back Length: 17.526 mm
Focusing Mechanism Straight Helicoid:
Rotation Angle: 154.3°
Rotation Torque: 0.2 N-cm … 7.0 N-cm
Focus Ring Can Be Fixed at Any Positions By 3 Fixing Screws (Refer to External View)
Iris Mechanism Non-click:
Rotation Angle 85.2°
Rotation Torque: 0.5 N-cm … 7.0 N-cm
Iris Ring Can Be Fixed at Any Positions By 3 Fixing Screws (Refer to External View)
Lens Length, Diameter: 29.5 x 28.5 mm
