Pepperl Fuchs NJ50-FP-E2-P1 Inductive Sensor
Gebraucht
Auf Lager2 EinheitenVersandbereit
INDUCTIVE SENSOR
Pepperl+Fuchs NJ50FPE2P1 inductive sensor with 50 mm sensing range, PNP normally open output, IP67 enclosure, and non-flush mounting design for industrial applications.50CompartmentDistanceFlushFuchsHousingInductiveIndustrialIP67mmmountNJ50FPE2P1NonNormallyOpenPBTPepperlPNPProximitySensingSensorterminal
Neu
Auf Lager 59,99$
Dieses Produkt ist auch als nagelneu erhältlich.
Neue Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

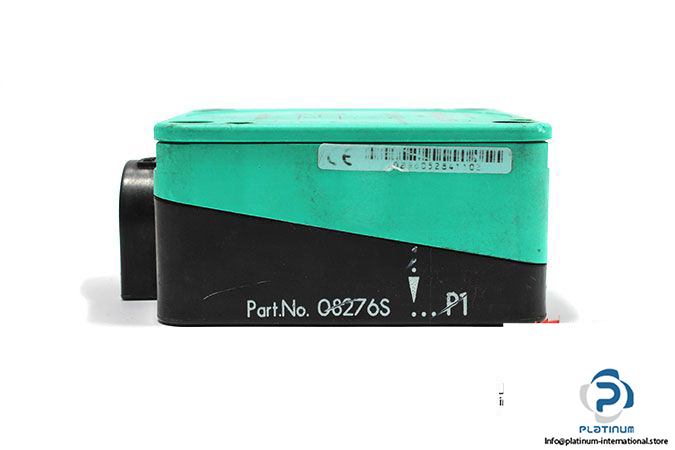

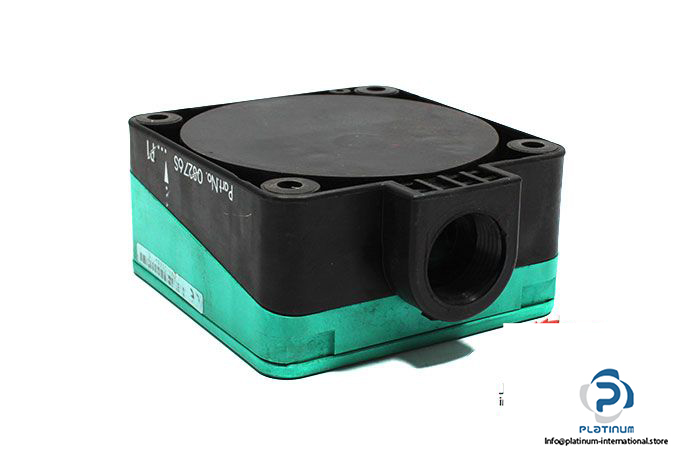

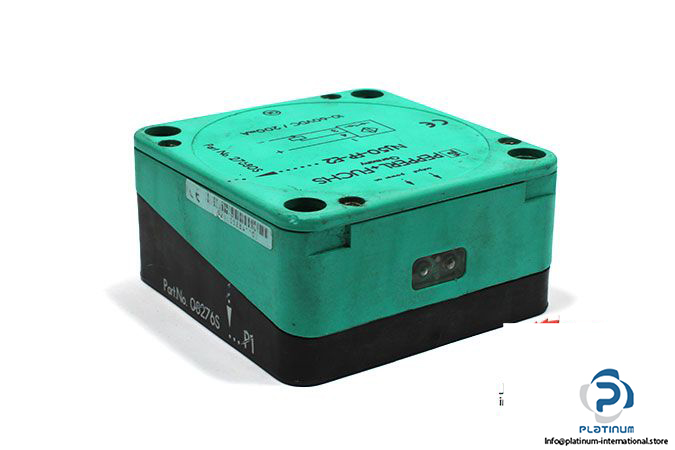

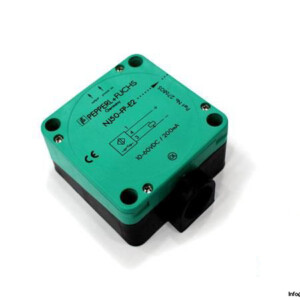

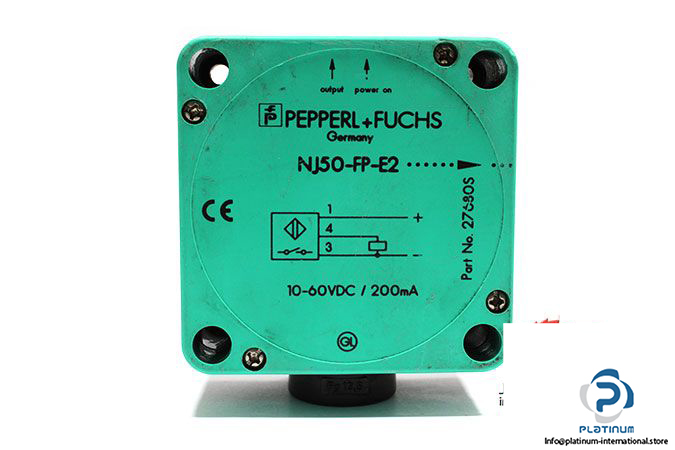

PEPPERL+FUCHS NJ50FPE2P1 INDUCTIVE SENSOR
The PEPPERL+FUCHS NJ50FPE2P1 is a robust non-flush inductive sensor designed for reliable object detection in harsh industrial environments. With a long sensing range of up to 50 mm and IP67 protection, it ensures stable operation under demanding conditions.
Manufacturer: Pepperl Fuchs
Type: Inductive Sensor
Model: NJ50FPE2P1
Part No.: 27680S
| Rated Operating Distance | 50 mm |
| Assured Operating Distance | 0 / 40.5 mm |
| Time Delay Before Availability | 30 ms |
| Operating Voltage | 10 / 60 V DC |
| Operating Current | 200 mA |
| Switching Frequency | 0 / 100 Hz |
| Electrical Design | PNP |
| Switching Output | Normally Open |
| Connector Type | Terminal Compartment |
| Protection Class | II |
| Enclosure Rating | IP67 |
| Ambient Operating Temperature | -25 to 70 °C |
| Dimensions | 80 x 40 x 80 mm |
| Housing Material | PBT |
| Sensing Face Material | PBT |
| Mounting | Non-Flush, Mountable |
