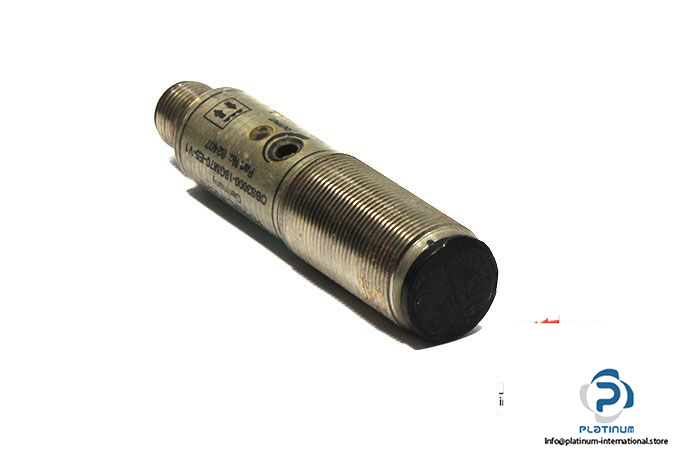

Pepperl Fuchs OBS3000-18GM70-E5-V1 Reflection Light Beam Switch

Manufacturer: Pepperl+Fuchs

Type: Reflection Light Beam Switch

Model: OBS3000-18GM70-E5-V1

Part No: 82407

Effective Detection Range: 0 … 3 m

Operating Voltage: 10 … 30 V DC

Switching Current: ≤ 100 mA

No-Load Supply Current I₀: ≤ 20 mA

Voltage Drop U_d: ≤ 2.5 V

Signal Output: PNP

Switching Type: Light on / Dark on Switching

Switching Frequency f: ≤ 300 Hz

Beam Type: Infrared

Light Source: LED

Protection Degree: IP67

Ambient Temperature: -25 … 55 °C

Material: Housing: Brass, Nickel Plated Optical Face: PC

Connection: Connector M12 x 1, 4-Pin

Diameter, Length: 18, 79 mm

Weight: 0.045 kg
