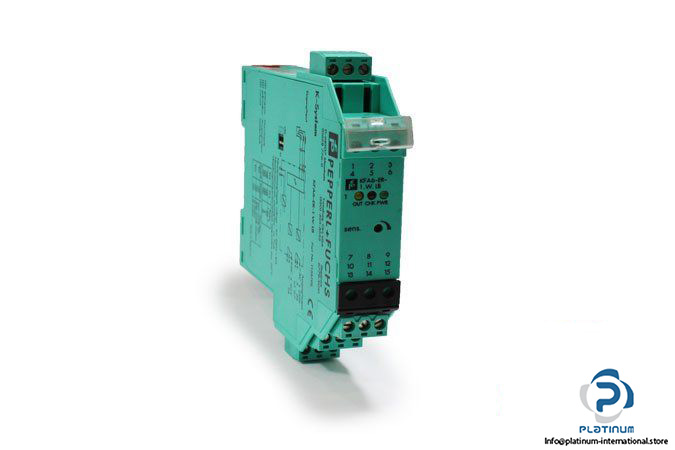

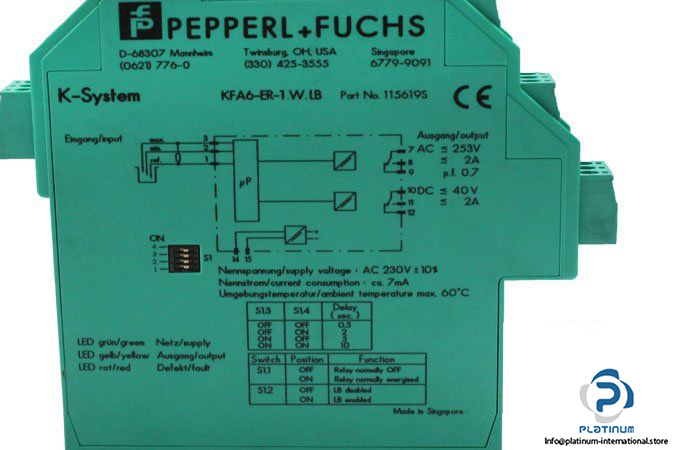

Pepperl+Fuchs KFA6-ER-1.W.LB Conductivity Switch Amplifier

Manufacturer: PEPPERL+FUCHS

Type: CONDUCTIVITY SWITCH AMPLIFIER

Model: KFA6-ER-1.W.LB

Part No.: 115619S

Signal Type: Digital Input

Supply Voltage: 207 … 253 VAC

Frequency: 45 … 65 Hz

Rated current: ≤ 7 mA

Power Consumption: < 1.2 W
Connection: terminals 14, 15

Input:

Connection Side: field side

Connection: terminals 1 (mass), 2 (min), 3 (max)

Response Sensitivity: 1 … 150 kΩ

Output:

Connection Side: control side

Connection: terminals 7, 8, 9; 10, 11, 12

Switching Power: max. 192 W, 2000 VA

Contact loading: 253 V AC/2 A/cos φ > 0.7; 40 V DC/2 A resistive load

Ambient Temperature: -20 … 60 °C

Protection Degree: IP20

Weight: approx. 0.15 Kg

Dimensions: 20 X 119 X 115 mm
