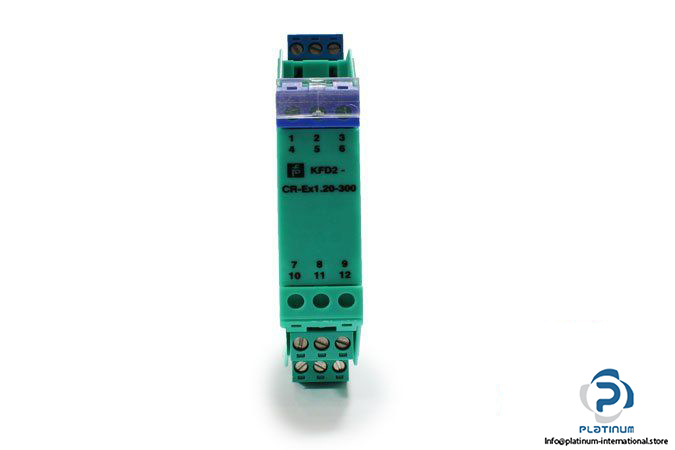

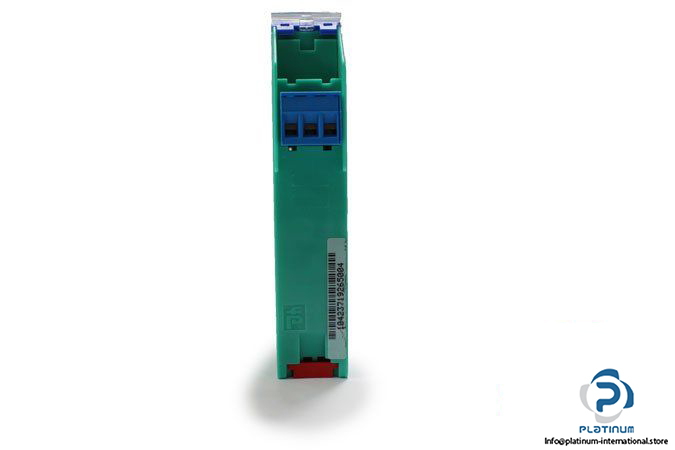

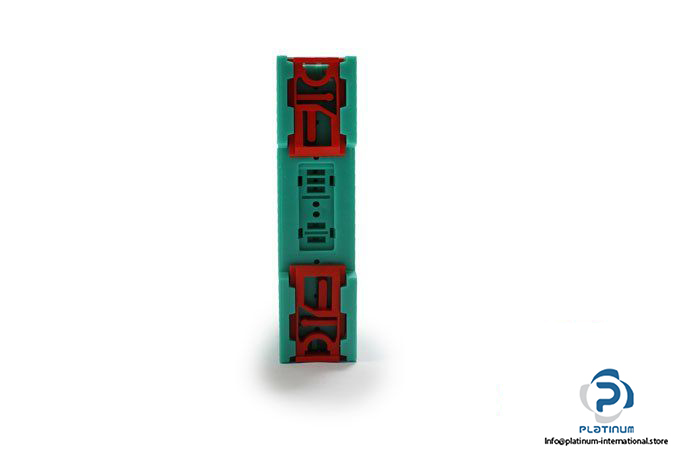

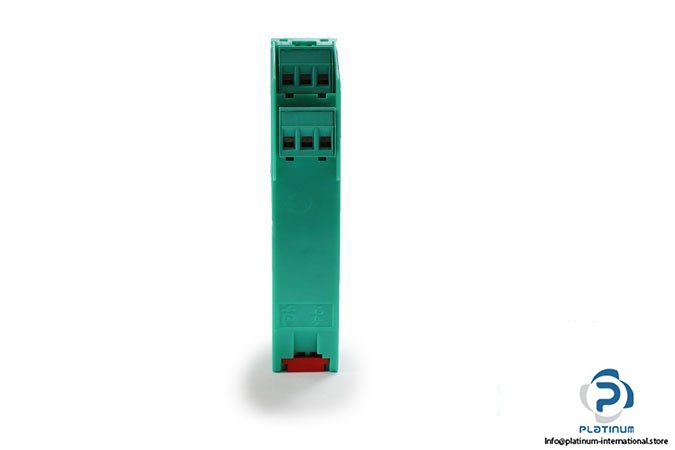

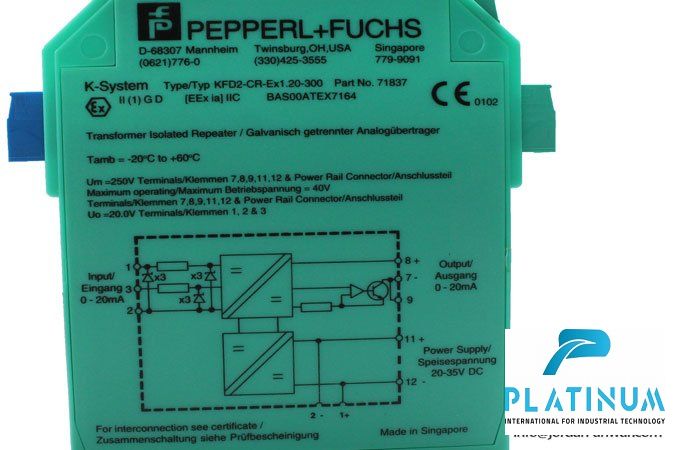

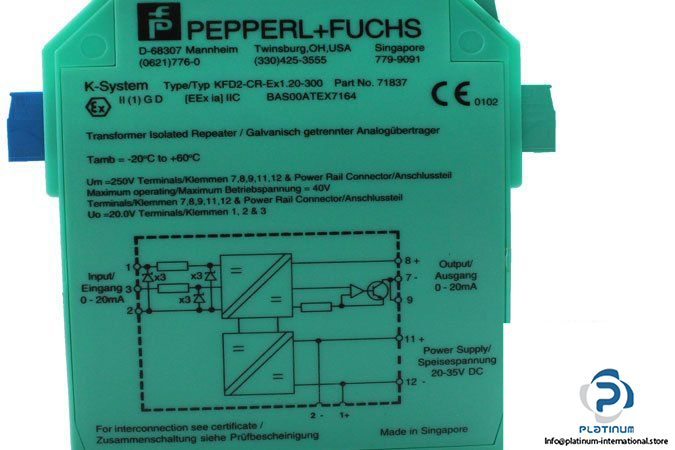

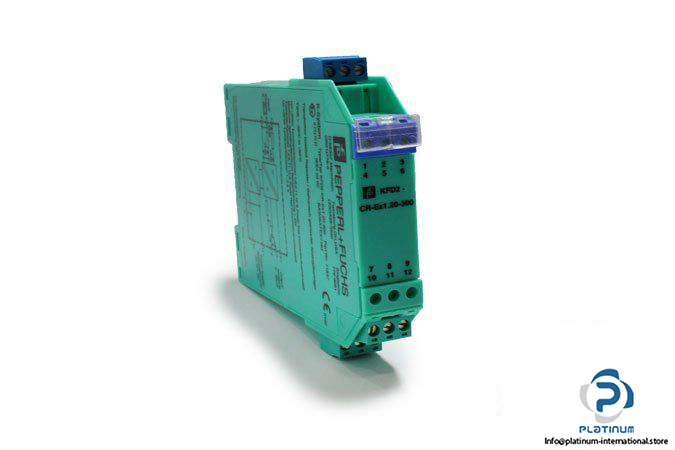

Pepperl+Fuchs KFD2-CR-EX1.20-300 Transmitter Power Supply

Manufacturer: PEPPERL+FUCHS

Type: TRANSMITTER POWER SUPPLY

Model: KFD2-CR-EX1.20.300

Part No.: 71837

Supply Voltage: 20 … 35 VDC

Power Consumption: ≤ 1.7 W

Connection: Power Rail or terminals 11+, 12-

Input:

Connection: Terminals 1+, 2-, 3

Input Signal: 4 … 20 mA

Available Voltage (Terminal 1+, 2-): 16.5 V at 25 mA

Available Voltage (Terminal 1+, 3-): 13.6 V at 20 mA

Input Resistance (Terminal 2-, 3): 220 Ω

Output:

Connection: Terminals 8+, 9-

Output Signal: 0 … 20 mA

Available Voltage: 20 VDC

Ambient Temperature: -20 … 60 °C

Protection Degree: IP20

Weight: approx. 0.1 Kg

Dimensions:  20 X 107 X 115 mm
