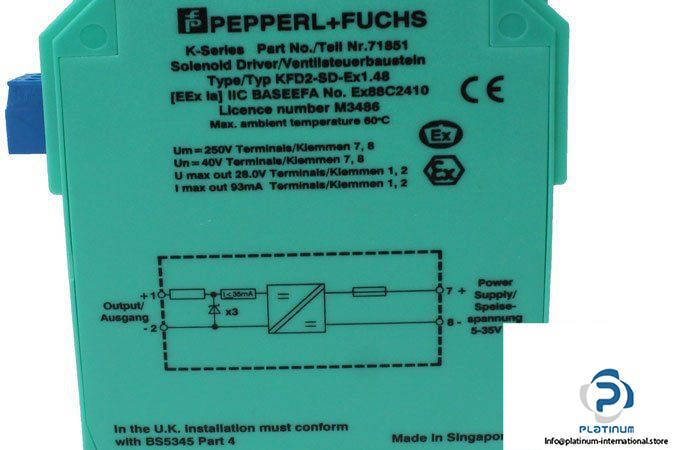

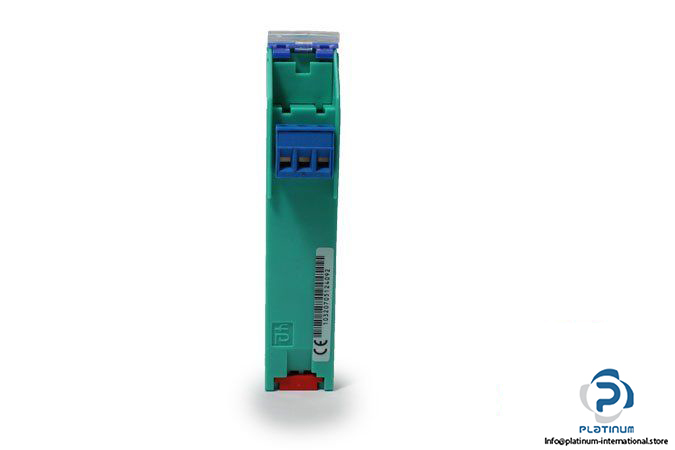

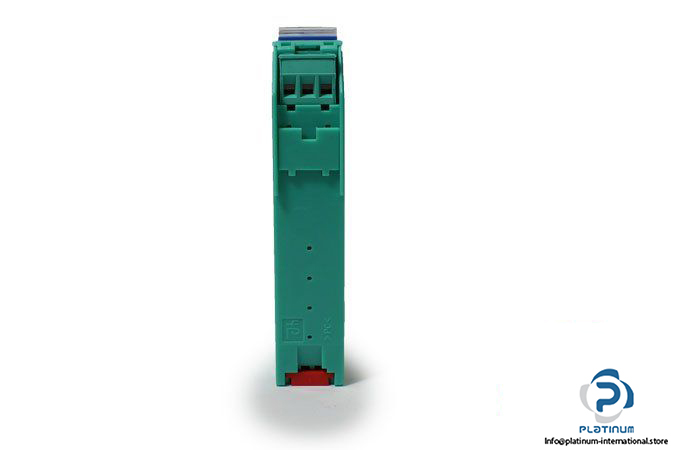

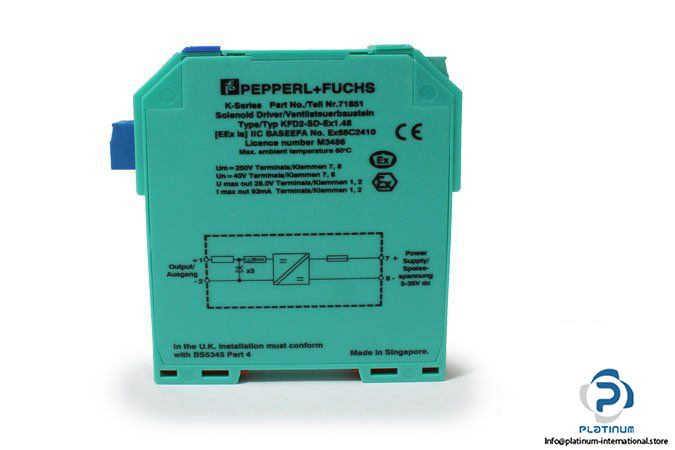

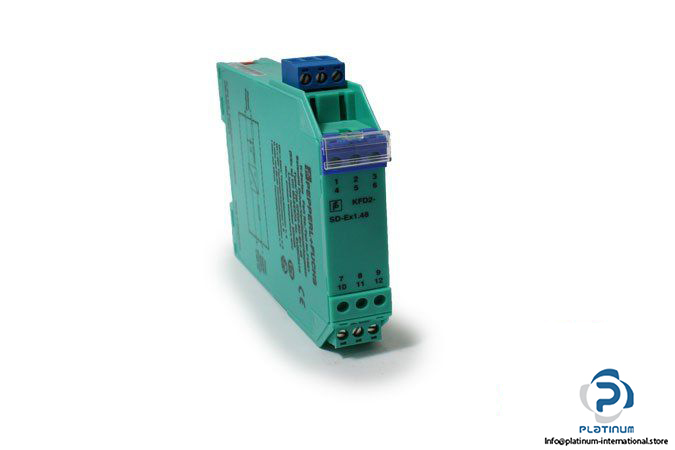

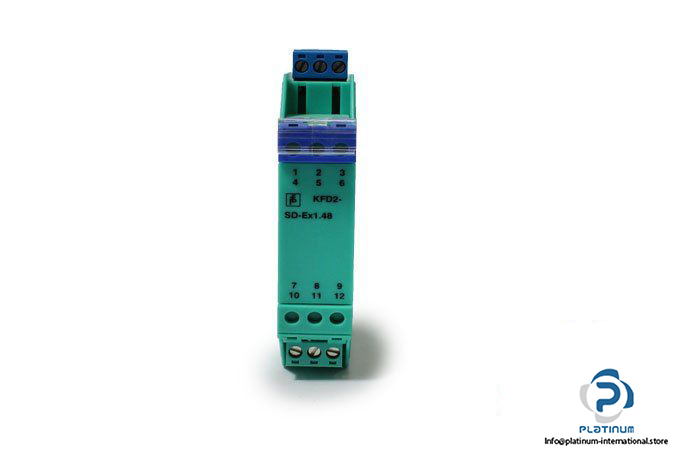

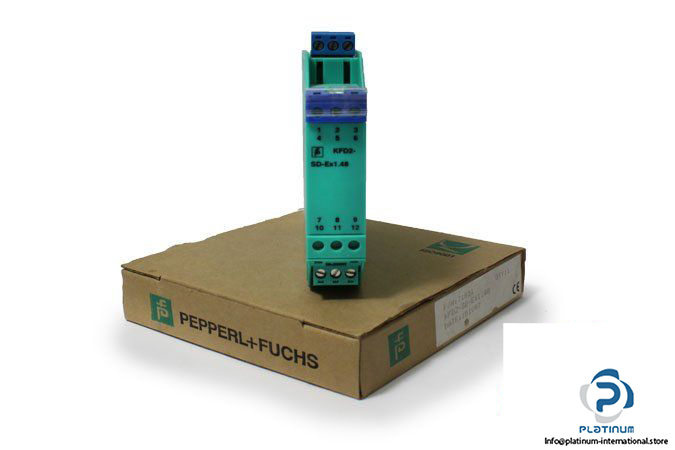

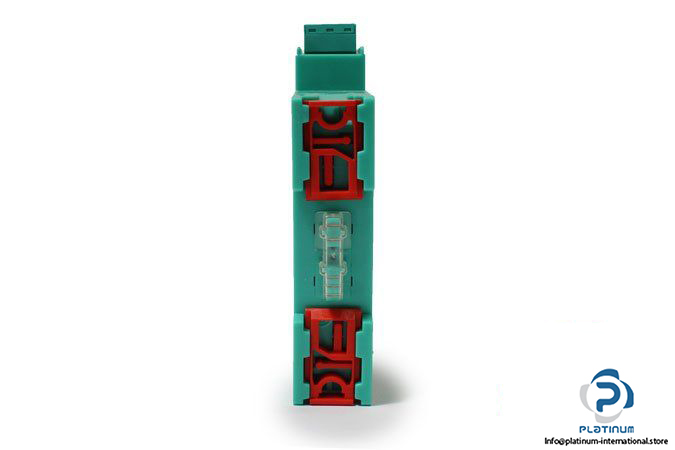

Pepperl+Fuchs KFD2-SD-EX1.48 Solenoid Driver

Manufacturer: PEPPERL+FUCHS

Type: SOLENOID DRIVER

Model: KFD2-SD-EX1.48

Part No.: 71851

Rated Voltage: loop powered

Power Loss: 1.3 W

Input:

Connection: terminals 7+, 8-

Rated Voltage: 5 … 35 VDC

Current: 6 mA at 18.5 V nominal supply voltage/70 mA at 35 V nominal supply voltage

Output:

Limit: current: ≥ 35.3 mA / voltage: 12.1 V

Open Loop Voltage: ≥ 22.8 V

Connection: terminals 1+, 2-

Output Rated Operating Current: 35 mA

Output Signal: these values are valid for the rated operational voltage 20 … 35 V DC

Ambient Temperature: -20 … 60 °C

Protection Degree: IP20

Weight: approx. 0.1 Kg

Dimensions: 20 X 107 X 115 mm
