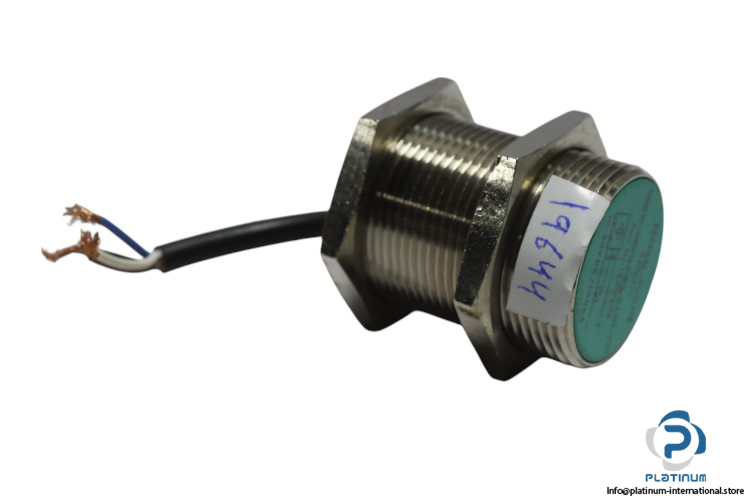

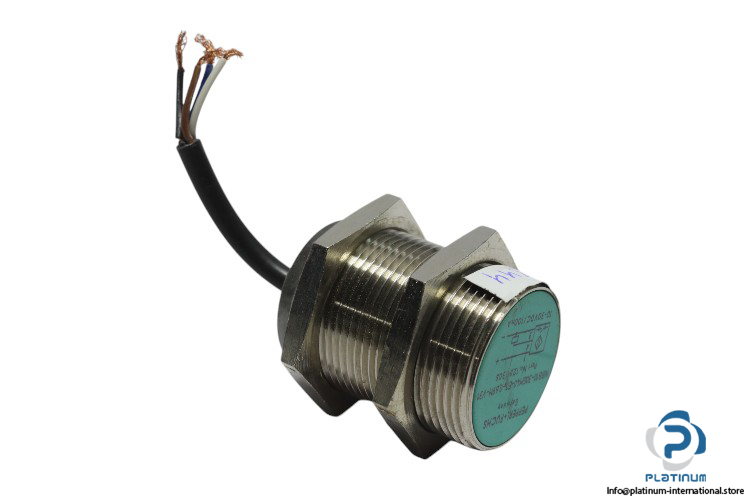

Pepperl+Fuchs NBB10-30GM40-E2-0,69M-V31 Inductive Sensor
Induktiver Sensor Der induktive Sensor Pepperl+Fuchs NBB10-30GM40-E2-0,69M-V31 bietet einen Erfassungsbereich von 10 mm, PNP-Ausgang und IP67-Schutz für industrielle Automatisierungsanwendungen.
Pepperl+Fuchs NBB10-30GM40-E2-0,69M-V31 Inductive Sensor
The Pepperl+Fuchs NBB10-30GM40-E2-0,69M-V31 Inductive Sensor is a high-performance proximity sensor designed for precision detection in industrial automation applications. With a robust PBT housing, IP67 protection, and a 10 mm sensing range, this sensor ensures reliable and durable operation in demanding environments.
Manufacturer: Pepperl+Fuchs
Type: Inductive Sensor

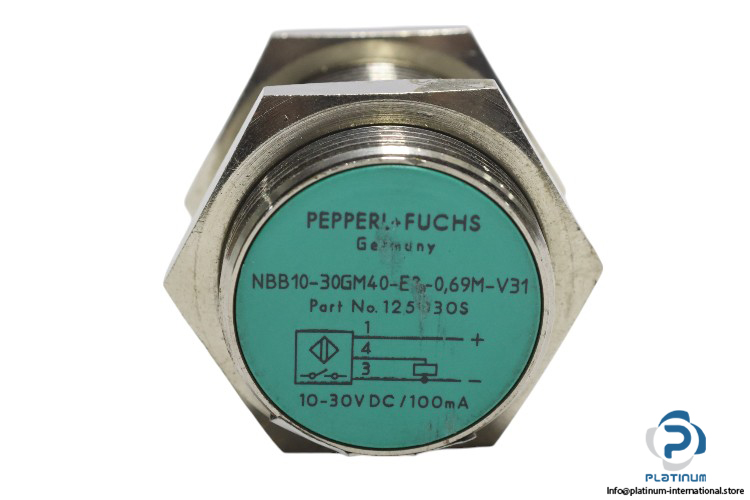

Model: NBB10-30GM40-E2-0,69M-V31
Part No.: 125030S
| Sensing Range | 10 mm |
| Assured Operating Distance | 0 to 8.1 mm |
| Operating Voltage | 10 to 30 V DC |
| Operating Current | 100 mA |
| Output Type | PNP |
| Threading | M8 x 1 |
| Output Configuration | 4-wire |
| Housing Material | PBT |
| Operating Temperature | -40 to 85°C |
| Degree of Protection | IP67 |
