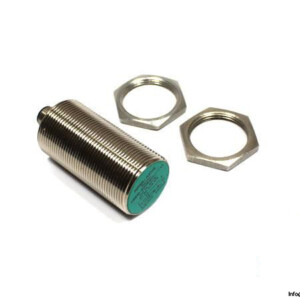

Pepperl+Fuchs NBB10-30GM60-A2-V1 4-PIN Inductive Sensor
Gebraucht
Auf Anfrage verfügbar
Induktiver Sensor Pepperl+Fuchs induktiver Sensor mit 10 mm Erfassungsbereich, PNP NO/NC Ausgang, M12 4-poliger Stecker und IP67 Schutz für industrielle Automatisierungsanwendungen.
104-PinAutomationdcInductiveIndustrialIP67M12mmNBB10-30GM60-A2-V1NCNickelNOPepperl+FuchsPlatedPNPProximitySenSensor
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Part No. | 84016 |
| Series | NBB10 |
| Sensing Range | 10 mm |
| Operating Voltage | 10 … 30 V DC |
| Operating Current | 0 … 200 mA |
| Contact | PNP Normally Open (NO)/ Normally Closed (NC) |
| Switching Frequency | 200 Hz |
| Electrical Connection | Connector Plug M12x1, 4-Pin |
| Housing Material | Brass, Nickel-Plated |
| Length, Diameter | 30, 77 mm |
| Protection Class | IP67 |
| Ambient Temperature | -40 … 70 °C |
| Condition | Used |
| SKU | 1092837 |
| Weight | 0,12 |
