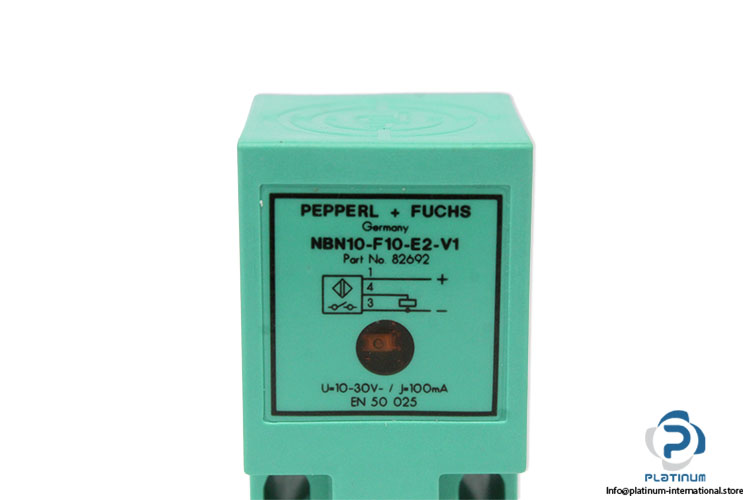

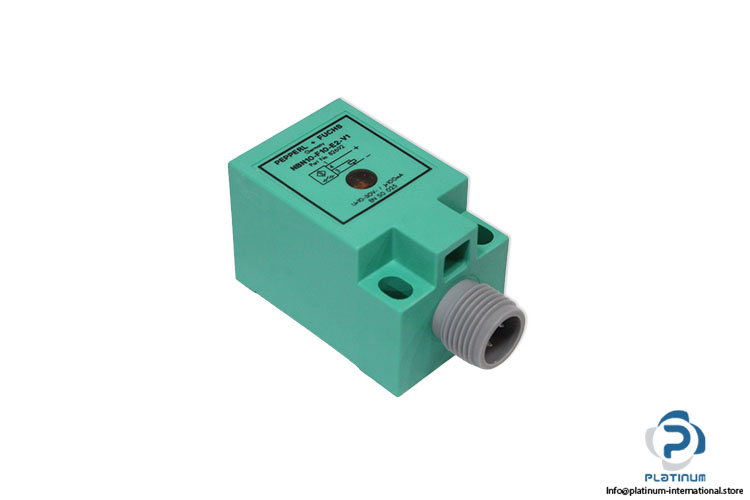

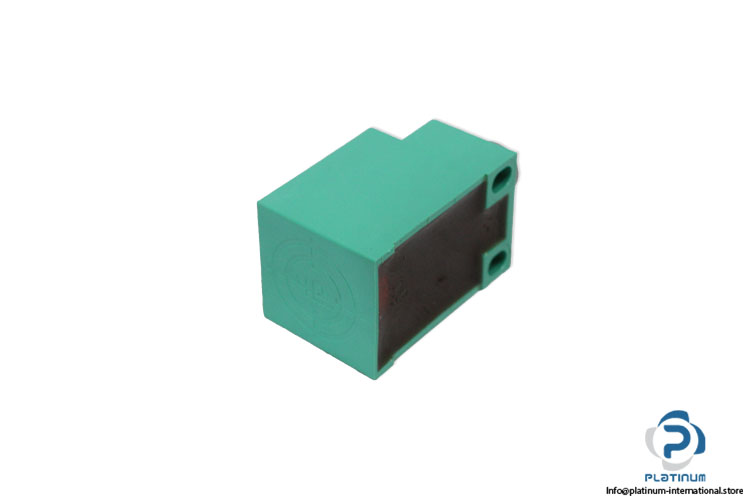

Pepperl+Fuchs NBN10-F10-E2-V1 Inductive Sensor
Neu
Auf Lager8 EinheitenVersandbereit
Inductive Sensor Pepperl+Fuchs inductive sensor with PNP normally open output, 10 mm sensing distance, IP67 protection, and M12 connector for industrial automation and object detection applications.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Part No. | 082692 |
| Operating voltage UB | 10 ... 30 V DC |
| Switching frequency f | 0 ... 500 Hz |
| Hysteresis H | typ. 5% |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Voltage drop | 3 V |
| Operating current | 0 ... 100 mA |
| Off-state current | 0 ... 0.5 mA typ. 0.1 µA at 25 °C |
| No-load supply current I0 | 15 mA |
| Switching function | Normally open (NO) |
| Output type | PNP |
| Rated operating distance sn | 10 mm |
| Installation | non-flush |
| Output polarity | DC |
| Assured operating distance sa | 0 ... 8.1 mm |
| Reduction factor rAl | 0.3 |
| Reduction factor rCu | 0.2 |
| Reduction factor r304 | 0.6 |
| Standards | EN IEC 60947-5-2 |
| Ambient temperature | -25 ... 70 °C |
| Connection type | Connector plug |
| Housing material | PBT |
| Sensing face | PBT |
| Degree of protection | IP67 |

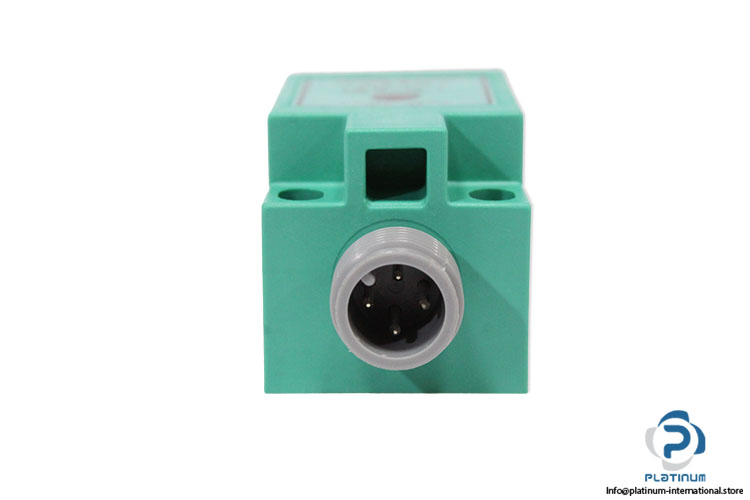

| Connector ,Threading | M12 x 1 |
| Number of pins | 4 |
| Height | 25.5 mm |
| Width | 25 mm |
| Length | 38.5 mm |
| Stock Key | CON-003 |

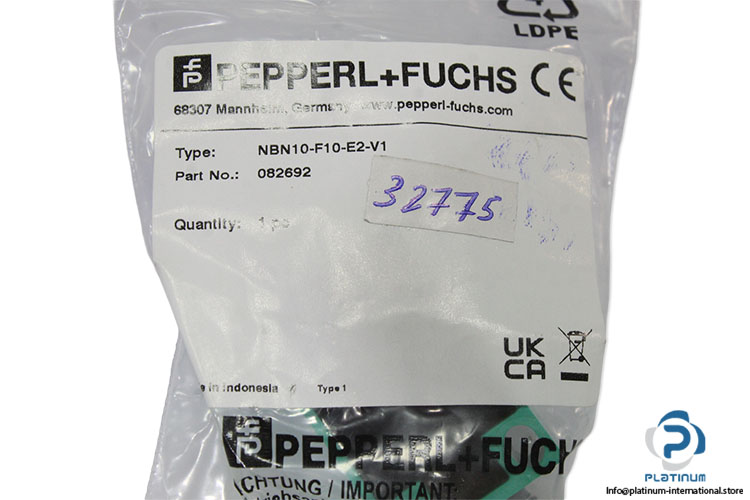

| Condition | New |
| SKU | 1099251 |
| Weight | 0,03 |
