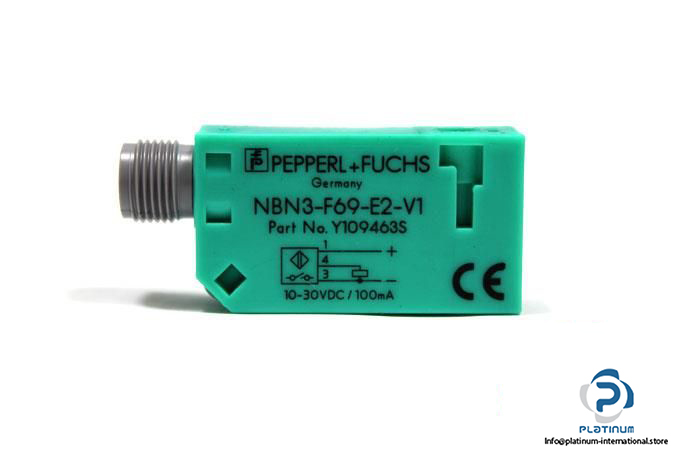

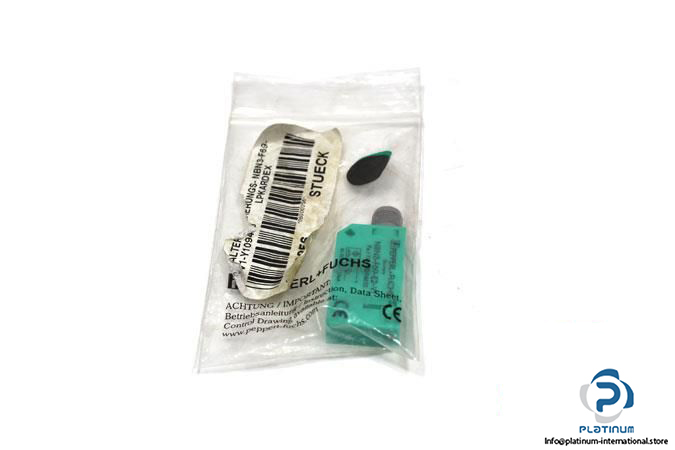

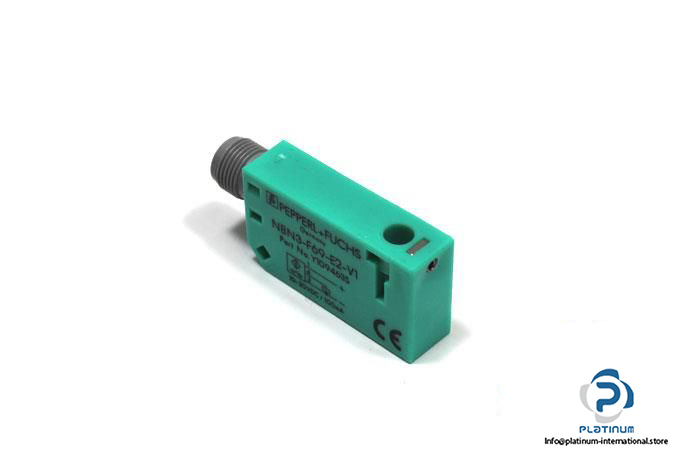

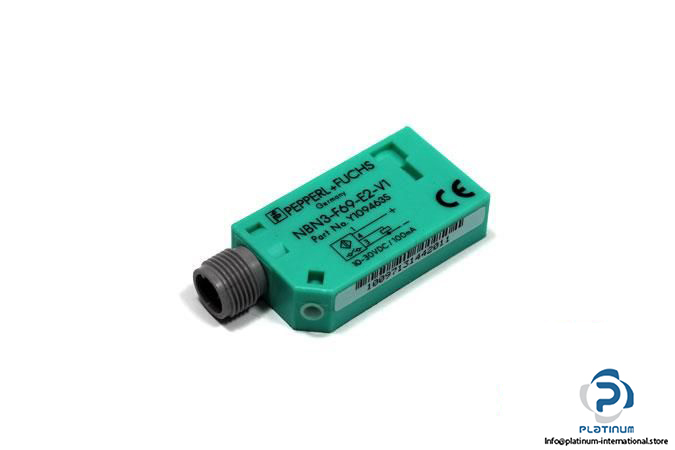

Pepperl+Fuchs NBN3-F69-E2-V1 Inductive Sensor

Manufacturer: PEPPERL FUCHS

Type: INDUCTIVE SENSOR

Model No.: Y109463S

Rated operating distance: 3 mm

Operating Voltage: 10 … 30 V DC

Operating Current: 100 mA

Switching frequency: 0 … 500 Hz

Electrical design: PNP

Switching output: Normally open

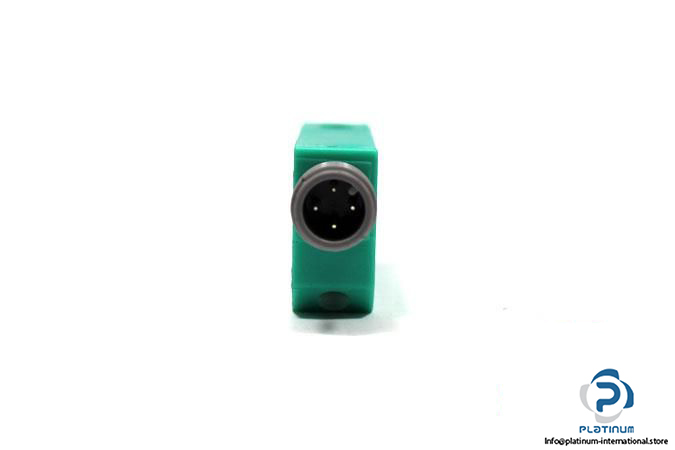

Connector type: M12 Connector,4-pin

Protection class: II

Enclosure rating: IP67

Ambient Operating temperature: -25 … 70°C

Dimensions: 25 x 12 x 45 mm

Housing material: PBT

Sensing face material: PBT

Condition: New
