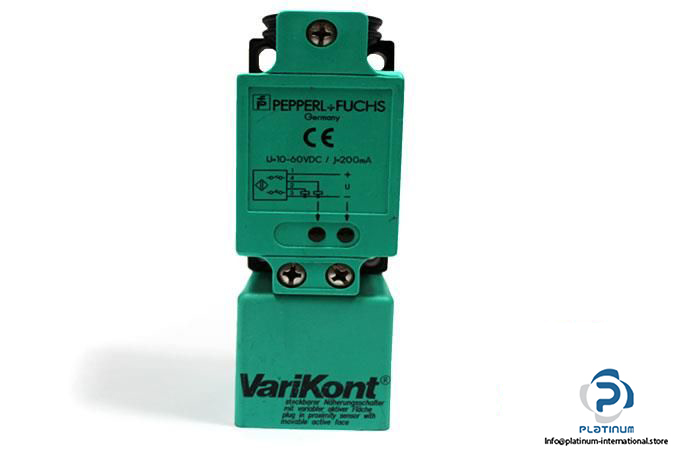

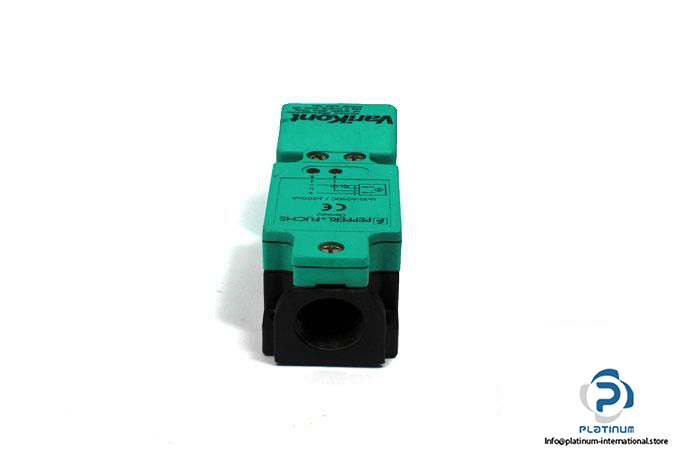

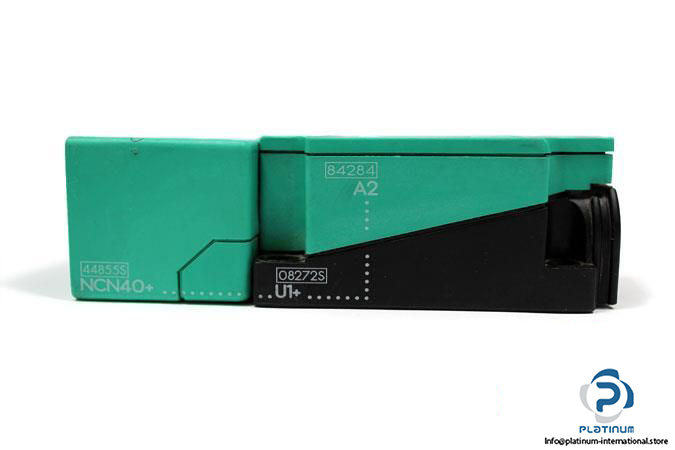

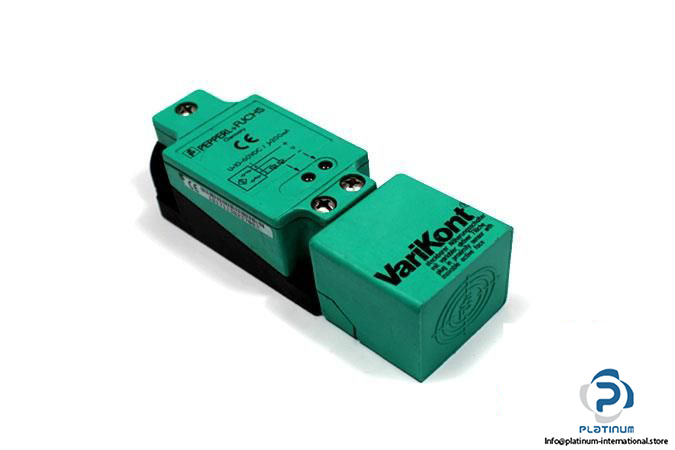

Pepperl+Fuchs NCN40+U1+A2 Inductive Sensor

Manufacturer: PEPPERL FUCHS

Series: VariKont

Type: INDUCTIVE SENSOR

Model No.: NCN40U1A2

Rated operating distance: 40 mm

Assured operating distance: 0 … 32.4 mm

Operating Voltage: 10 … 60 V DC

Operating Current: 200 mA

Switching frequency: 0 … 30 Hz

Electrical design: PNP

Switching output: Normally open/Normally closed (complementary)

Connector type: Terminal compartment

Enclosure rating: IP68

Ambient Operating temperature: -25 … 70°C

Dimensions: 40 x 40 x 118 mm

Housing: Rectangular

Housing material: PBT

Sensing face material: PBT

Mounting: Non-flush mountable

Condition: Used
