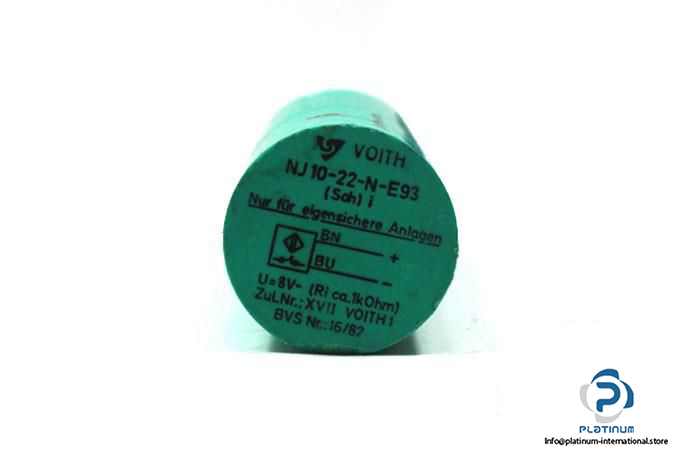

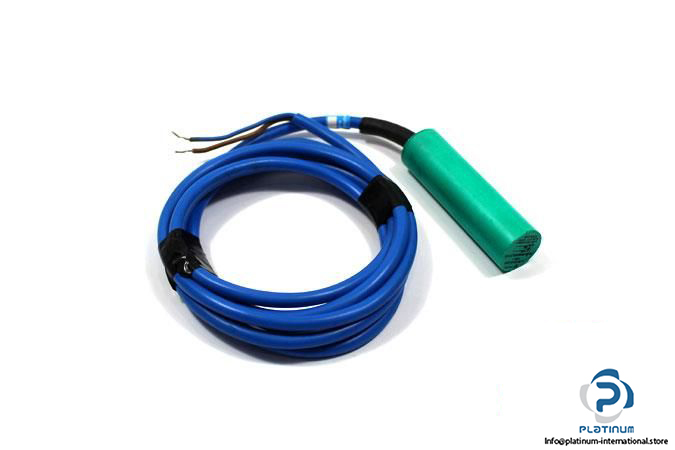

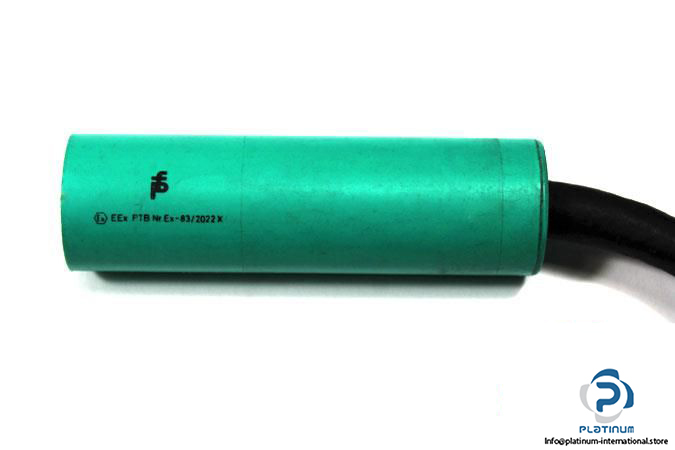

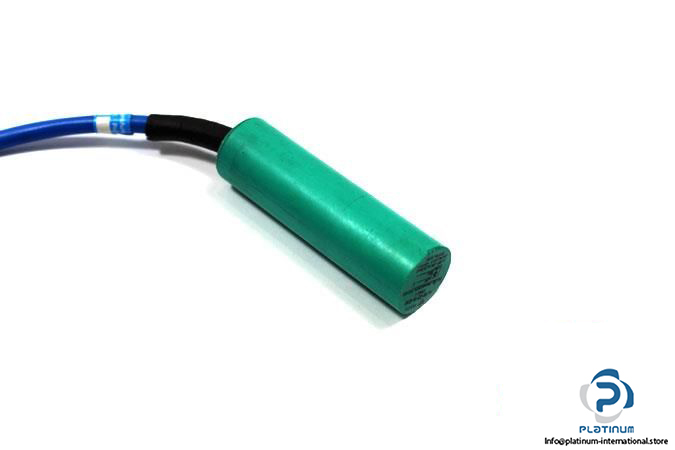

Pepperl+Fuchs NJ10-22-N-E93 Inductive Sensor

Manufacturer: PEPPERL FUCHS

Series: VOITH

Type: INDUCTIVE SENSOR

Model No.: NJ1022NE93

Rated operating distance: 10 mm

Assured operating distance: 0 … 9 mm

Operating Voltage: 8 V DC

Current consumption (Measuring plate not detected): ≥ 3 mA

Current consumption (Measuring plate detected): ≤ 1 mA

Switching frequency: 0 … 2000 HZ

Switching output: Normally closed

Output type: NAMUR

Connector type: PVC Cable, 2 m

Protection class: II

Enclosure rating: IP68

Ambient Operating temperature: -25 … 100°C

Diameter, housing length: 22, 75 mm

Housing material: PBT

Sensing face material: PBT

Mounting: Non-flush mountable
