Pepperl+Fuchs NJ10-30GM-N 14580S Inductive Sensor
Neu
Auf Lager1 EinheitVersandbereit
Induktiver Sensor PEPPERL+FUCHS NJ10-30GM-N induktiver NAMUR-Sensor mit 10 mm Erfassungsbereich, IP66/IP67 Schutz, Edelstahlgehäuse und SIL 2 Fähigkeit für industrielle und gefährliche Anwendungen.
2AutomationExplosionFuchsInductiveIndustrialIP67NamurNJ10-30GM-NPepperlProofProximitySensorSILstainlessSteel
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

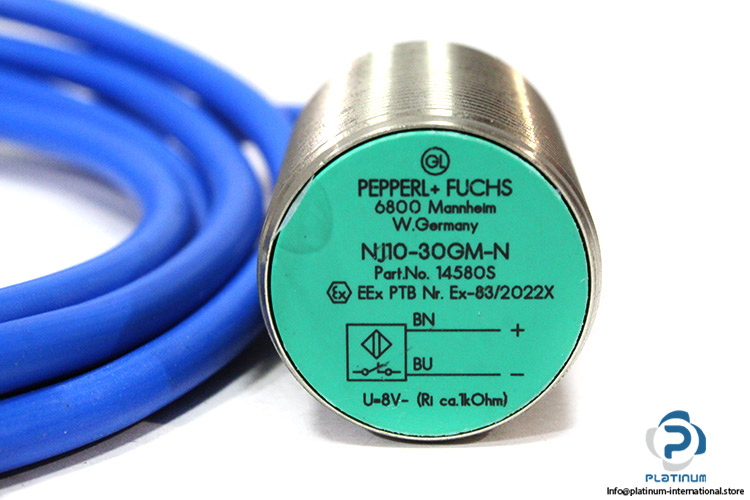

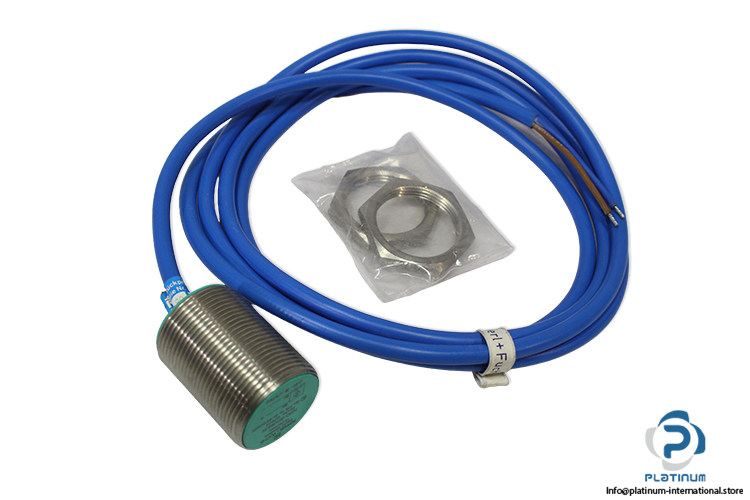

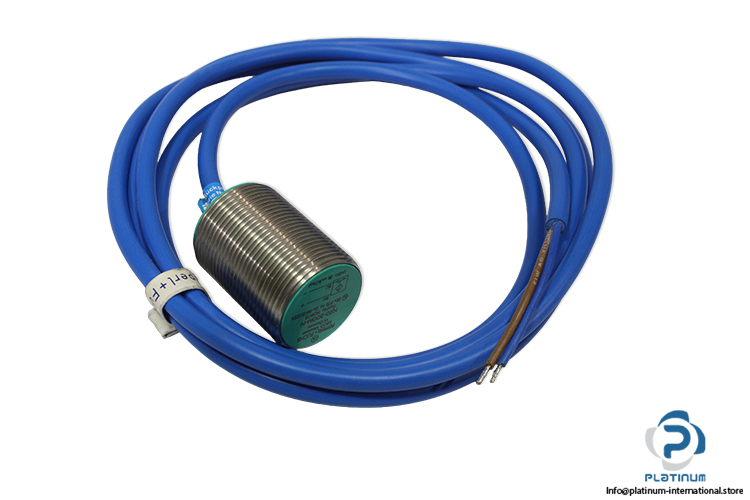

PEPPERL+FUCHS NJ10-30GM-N Inductive Sensor
The PEPPERL+FUCHS NJ10-30GM-N is a high-performance inductive sensor designed for reliable non-contact detection in industrial automation environments. Built with a stainless steel housing and engineered to meet international standards, this NAMUR sensor provides dependable switching performance even in demanding and hazardous areas.
Manufacturer: PEPPERL+FUCHS
Type: Inductive Sensor
Model: NJ10-30GM-N
Part No.: 14580S
| Sensing Range | 10 mm |
| Assured Operating Distance | 0 / 8.1 mm |
| Operating Voltage | 8 V DC |
| Electrical Design | NAMUR |
| Switching Output | Normally Closed |

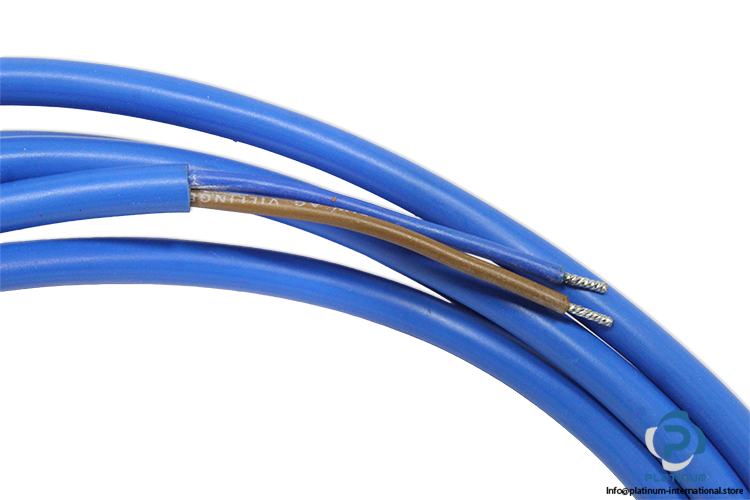

| Connector Type | Cable, 2 Wire |
| Material | Stainless Steel |
| Sensing Face Material | PBT |
| Standards | EN IEC 60947-5-2 |
| Ambient Temperature | -25 ... 100 °C |
| Degree Of Protection | IP66 / IP67 |
| Dimensions | Length 40 mm, Diameter 30 mm |
| Explosion Proof Certification | Ex-83/2022X |
| Functional Safety | Usable Up To SIL 2 According To IEC 61508 |
