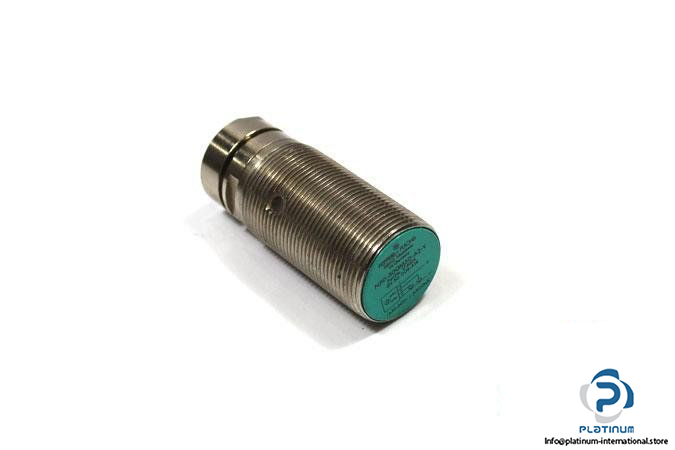

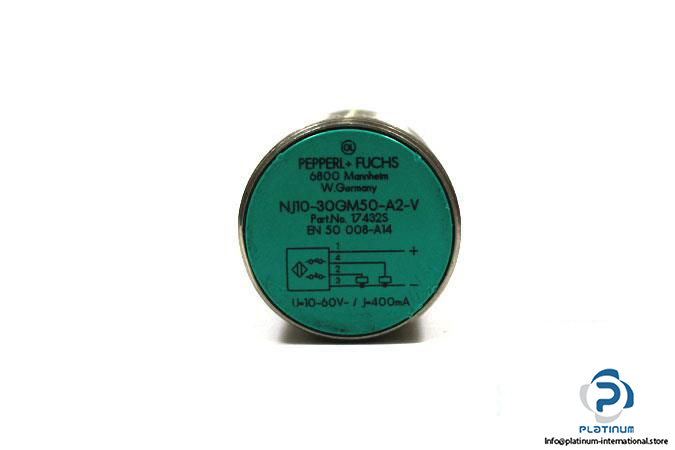

Pepperl+Fuchs NJ10-30GM50-A2-V Inductive Sensor

Manufacturer:  PEPPERL FUCHS

Type:  INDUCTIVE SENSOR

Model No.: NJ1030GM50A2V

Part No.: 17432S

Rated operating distance: 10 mm

Assured operating distance: 0 … 8.1 mm

Operating Voltage: 10 … 60 V DC

Operating Current: 400 mA

Electrical design: PNP

Switching output: Normally open/Normally closed

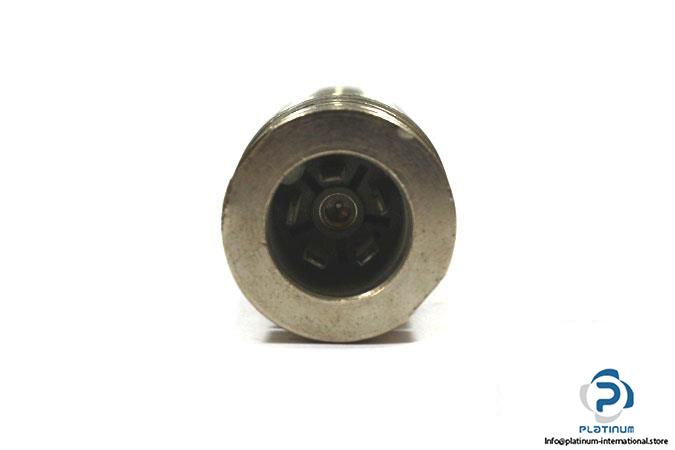

Connector: Valve plug type

Protection class: II

Enclosure rating: IP67

Ambient Operating temperature: -25 … 70°C

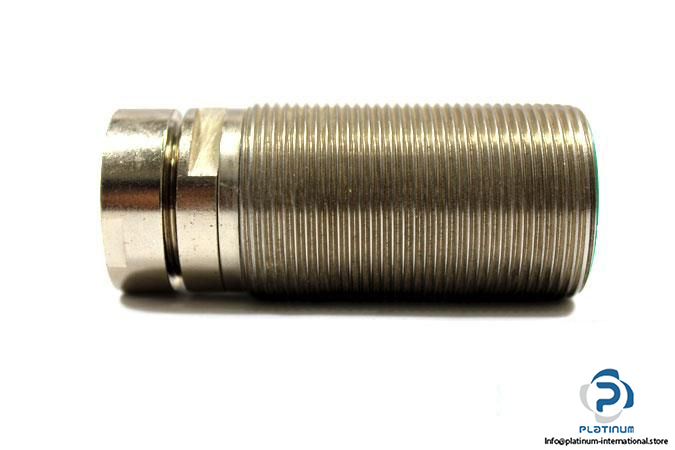

Diameter, housing length: 30,50 mm

Housing material: Stainless steel

Sensing face material: PBT

Condition: Used
