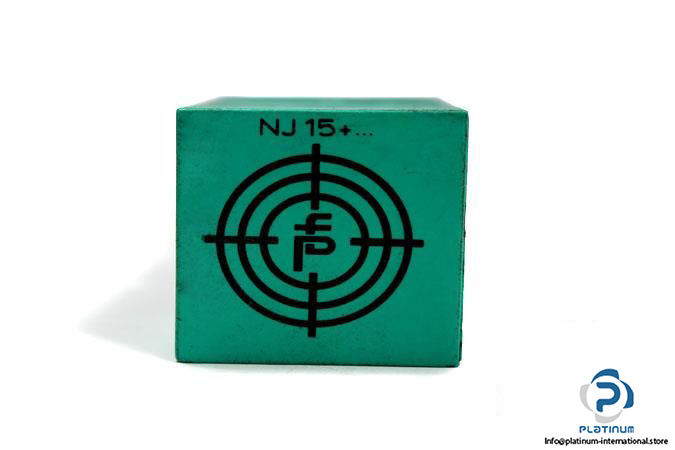

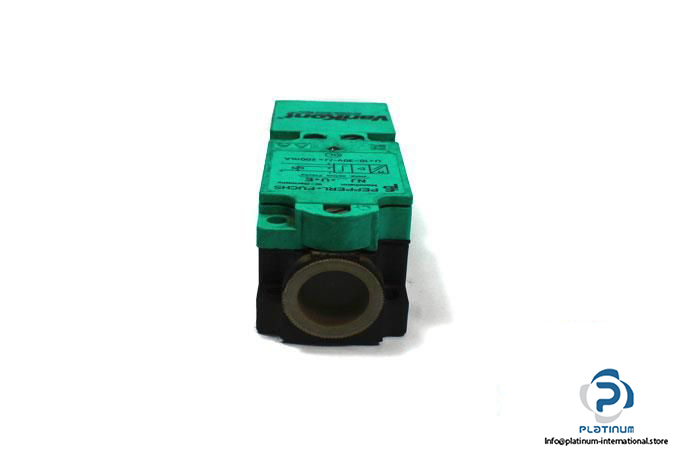

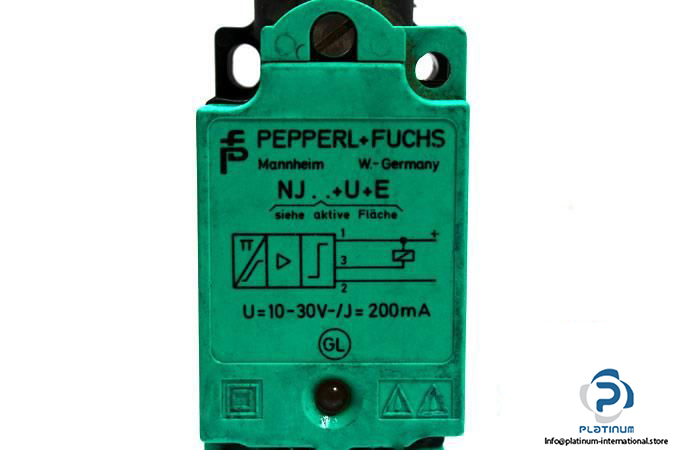

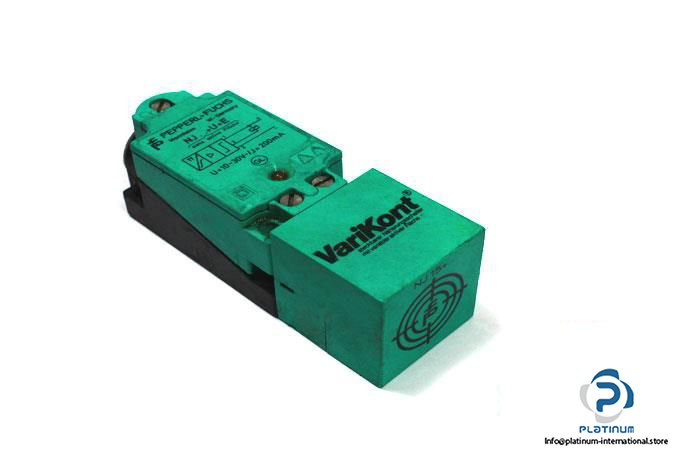

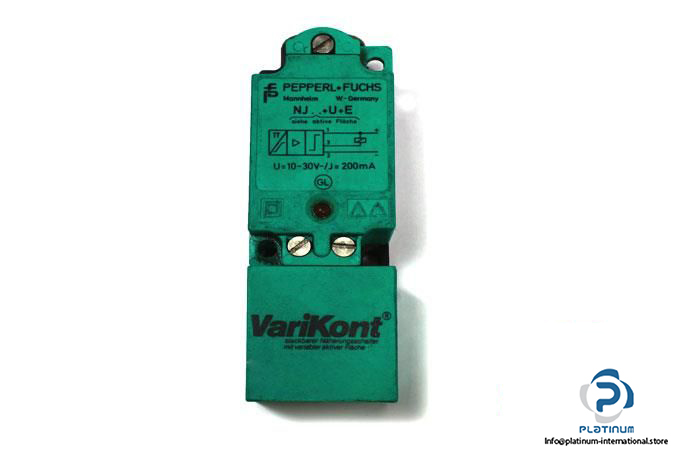

Pepperl+Fuchs NJ15+U+E Inductive Sensor

Manufacturer: PEPPERL FUCHS

Series: VariKont

Type: INDUCTIVE SENSOR

Model: NJ15UE

Rated Operating Distance: 15 mm

Assured Operating Distance: 0 … 12.15 mm

Operating Voltage: 10 … 30 V DC

Operating Current: 200 mA

Switching Frequency: 0 … 150 Hz

Electrical Design: NPN

Switching Output: Normally Open

Connector Type: Terminal Compartment

Enclosure Rating: IP68

Ambient Operating Temperature: -25 … 70°C

Dimensions: 40 x 40 x 118 mm

Housing: Rectangular

Housing Material: PBT

Sensing Face Material: PBT
