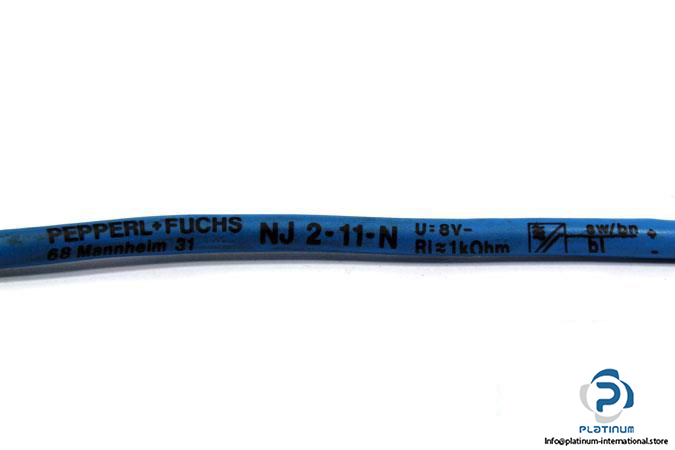

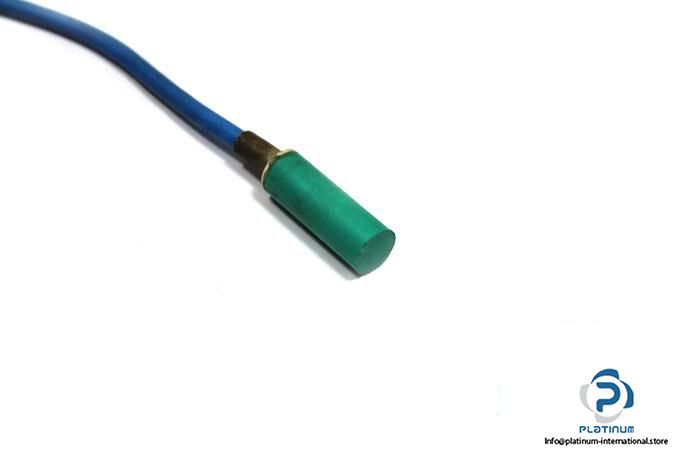

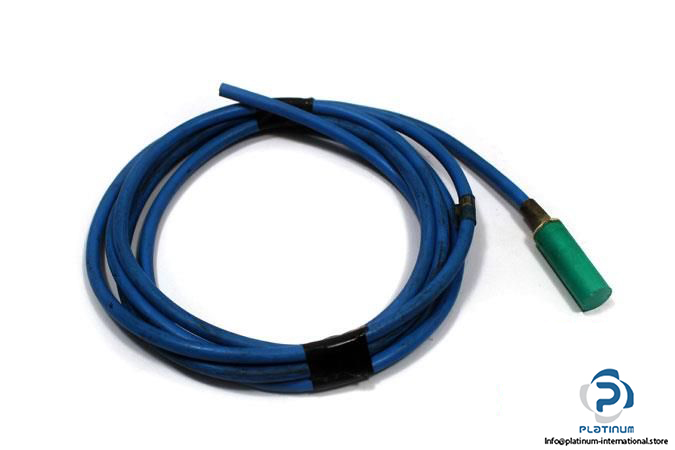

Pepperl+Fuchs NJ2-11-N Inductive Sensor

Manufacturer: Pepperl+Fuchs
Type: Inductive Sensor
Model No.: NJ211N
Part No.: 07828S

Rated operating distance: 2 mm
Assured operating distance: 0 … 1.62 mm
Operating Voltage: 8 V DC
Current consumption (Measuring plate not detected): ≥ 3 mA
Current consumption (Measuring plate detected): ≤ 1 mA
Switching frequency: 0 … 3000 Hz
Switching output: Normally closed
Output type: NAMUR
Connector type: PVC Cable, 2 m
Protection class: II
Enclosure rating: IP68
Ambient Operating temperature: -25 … 100°C
Diameter, housing length: 11, 30 mm
Housing material: PBT
Mounting: Flush-mountable
