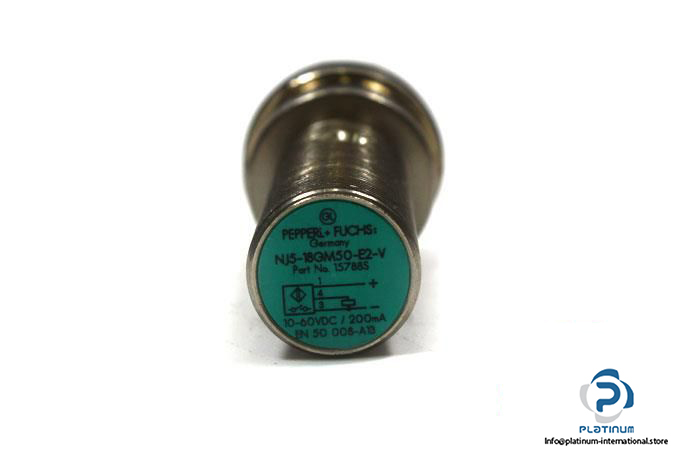

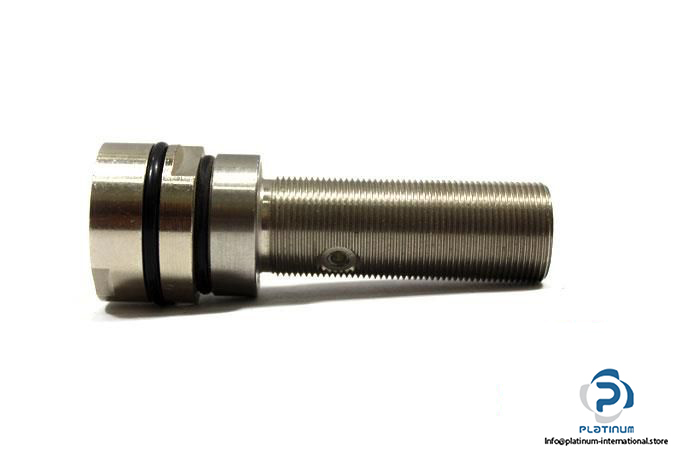

Pepperl+Fuchs NJ5-18GM50-E2-V Inductive Sensor

Manufacturer: PEPPERL FUCHS

Type: INDUCTIVE SENSOR

Model No.: NJ518GM50E2V

Rated operating distance: 5 mm

Assured operating distance: 0 … 4.05 mm

Operating Voltage: 10 … 60 V DC

Operating Current: 200 mA

Switching frequency: 0 … 1500 HZ

Electrical design: PNP

Switching output: Normally open

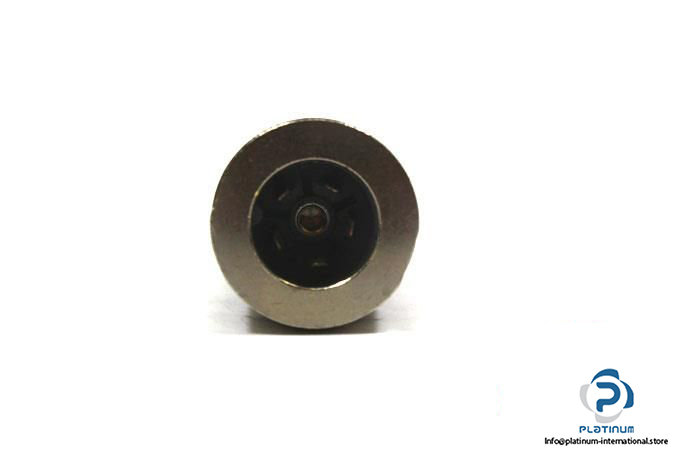

Connector type: Valve Plug Type

Protection class: II

Enclosure rating: IP67

Ambient Operating temperature: -25 … 70°C

Diameter, Housing length: 18, 77 mm

Housing material: Stainless steel

Sensing face material: PBT

Mounting: Flush-mountable

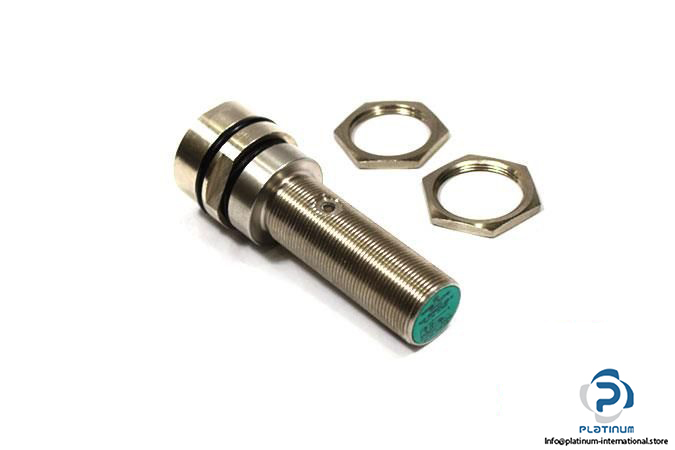

Supplied Accessories: 2 lock nuts

Condition: Used
