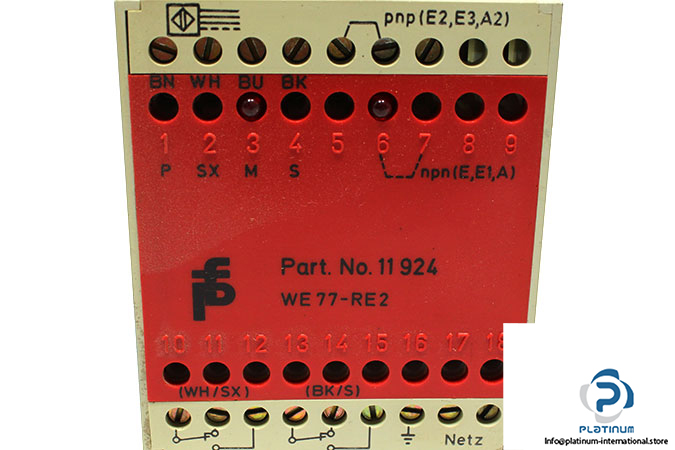

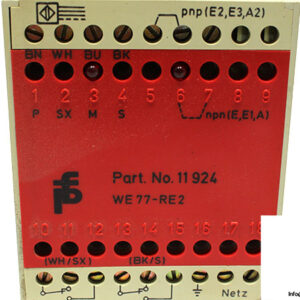

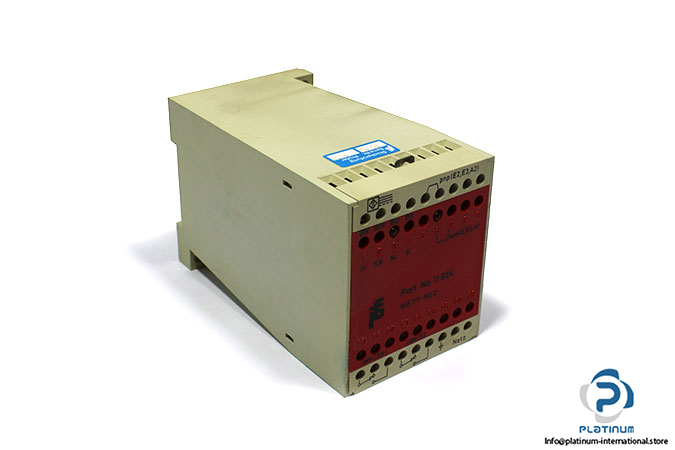

Pepperl+Fuchs WE77-RE2 Isolated Switch Amplifier

Manufacturer: PEPPERL+FUCHS
Type: Isolated switch amplifier
Model: WE77-RE2
Part no.: 11924

Rated voltage: 98 … 126 V AC / 198 … 253 V AC ,45 … 63 Hz , switchable
Connection: terminals 17, 18
Power consumption: approx. 7 VA
Input
Connection: Terminals 2; 4
Input signal: high: 24 V DC ± 20 %, 37 mA low: < 1 V DC, ≤ 0.5 mA
Output
Connection: terminals 10, 11, 12; 13, 14, 15 terminals 1+, 3-
Current: 160 mA at 60 °C , short-circuit proof
Voltage: 24 V DC ± 20 %
Protection degree: IP20
Ambient Temperature: -25 … 60 °C
Dimensions: 60 mm x 70 mm x 110 mm
