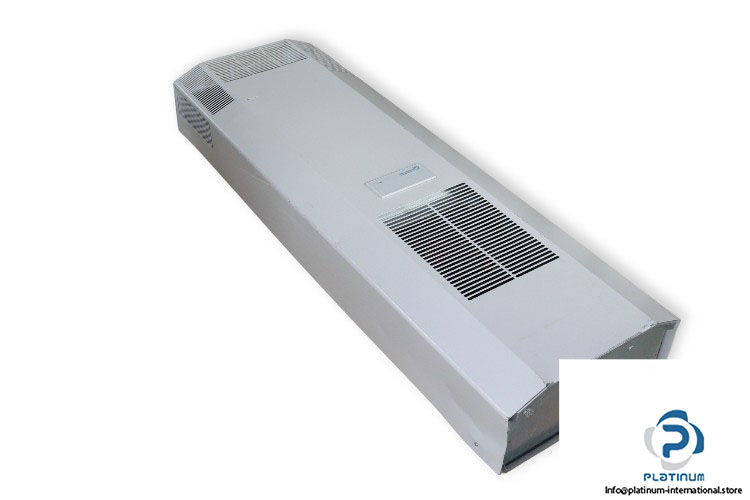

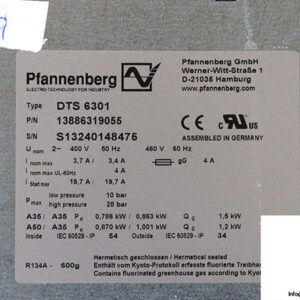

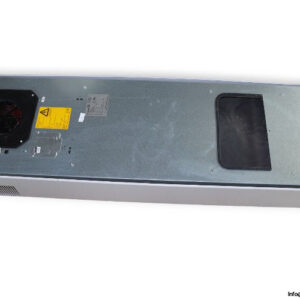

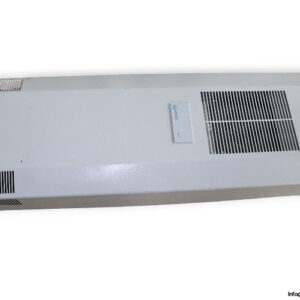

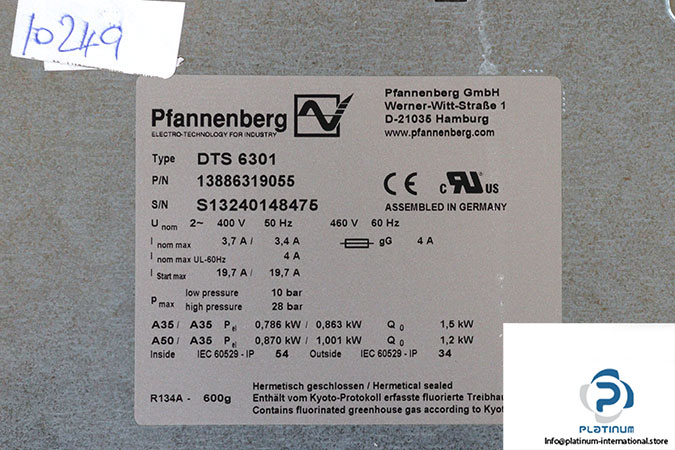

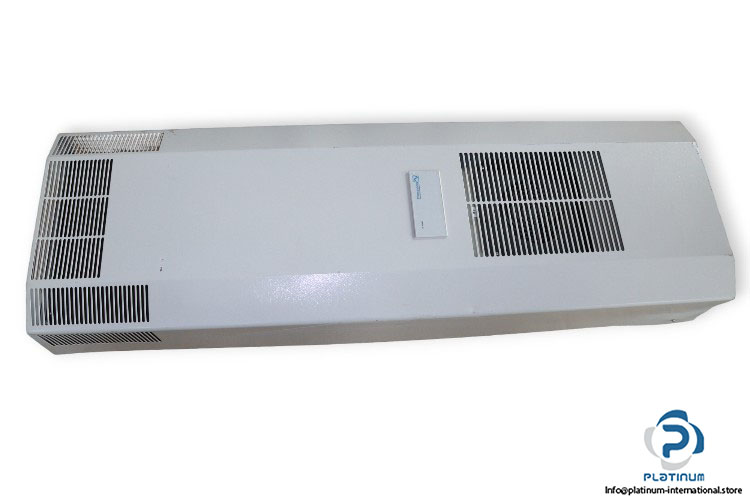

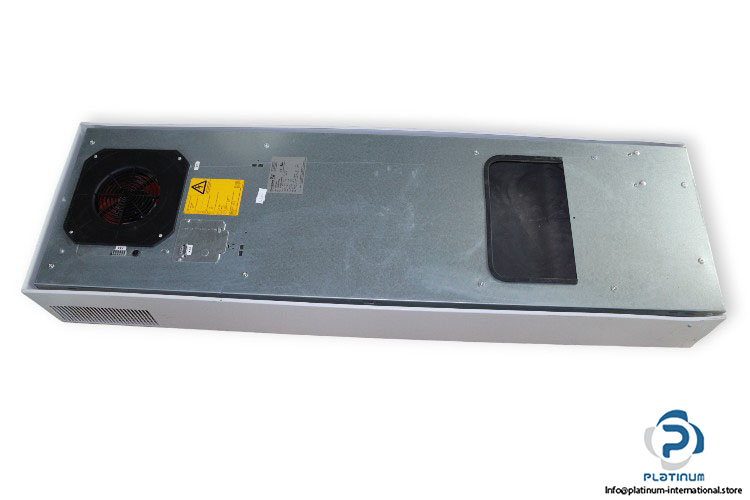

Pfannenberg DTS 6301 Cooling Unit

Manufacturer: Pfannenberg
Type: Cooling Unit
Model: DTS6301
Part No: 13886319055

Nominal Voltage: 400 … 460 V AC (2 PH)
Frequency: 50 … 60 Hz
Nominal Current: 3.7 … 3.4 A
Nominal Max. Current UL-60Hz: 4 A
Max. Start Current: 19.7 A
Pressure: 10 … 28 Bar
Power Consumption: (A35/A35) 0.786 … 0.863 kW/ (A50/A35) 0.870 … 1.001 kW
Cooling capacity: (A35/A35) 1.5 kW/ (A50/A35) 1.2 kW
Refrigerant: R134a
Degree of protection: Inside IP54/ Outside: IP34
Operating Temperature: 10 … 55 °C
Dimension: 485 X 1540 X 218 mm
